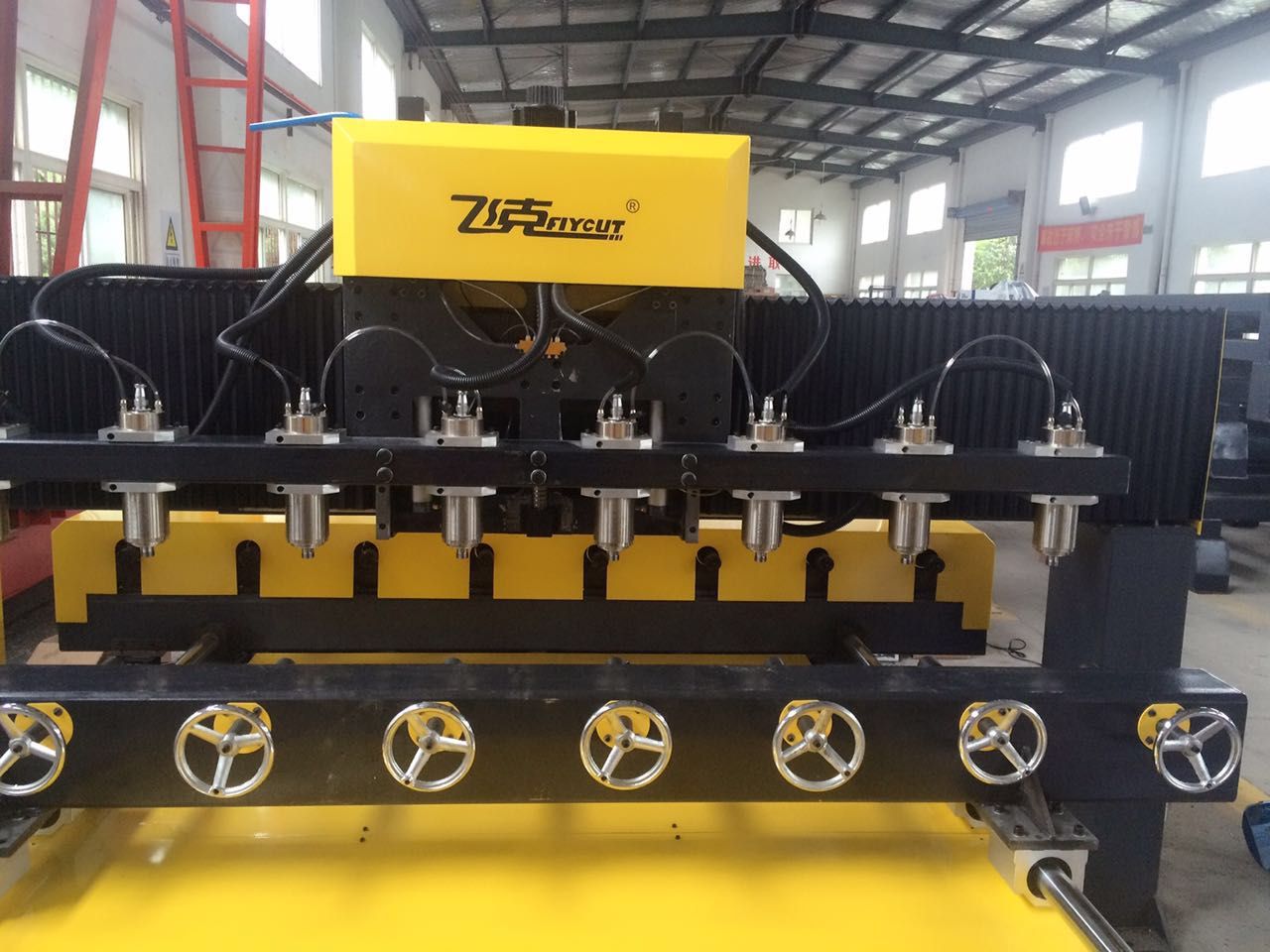

8 Heads 4 Axis Cylinder Wood CNC Router for Plane and Rotary Engraving

8 Heads 4 Axis Cylinder Wood CNC Router for Plane and Rotary Engraving
Price: US $ 17000-17500set/sets
Trade Terms: FOB,CFR,CIF
Min Order: 1set/sets
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FCT-2515C&W-8S
Markets: North America,Southeast Asia,Mid East
Type: Engraving Router
Spindle Layout: Horizontal
Feed Mode: Mechanical
Controlling Mode: CNC
Customized: Customized
Condition: New
Color: Iron Grey
Spindle Number: Eight Spindles

Product Description


Trademark:Flycut
Model No:FCT-2515C&W-8S
Product name:  8 Heads 4 Axis Cylinder Wood CNC Router


Features:

1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
6.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCA.


Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.

Special Configuration:
Customized model machine, imported spindle, servo motors .oil lubrication system, 6-12 spindle heads, etc.


Technical Parameters:

Model

FCT-7090C&W-4S

FCT-1618C&W-4S

FCT-1625C&W-4S

FCT-2515C&W-8S

FCT-2018C&W-8S

Rotary diameter

∮230

∮230

∮230

∮250

∮250

Rotary length

800mm

1300mm

2000mm

1500mm

1300mm

Flat working size

700×900×200mm

1600×1800×200mm

1600×2500×200mm

2150×1500×200mm

2000×1800×200mm

Spindle power

Water cooling 1500W×4

Water cooling 1500W×4

Water cooling 2200W×4

Water cooling 2200W×8

Water cooling 2200W×8

Spindle rotate

6000--2400rpm

Motor driver

Stepper motor driver (Chinese servo motor and Japan servo motor is optional)

Tool diameter

∮3.175,∮4,∮6mm

∮3.175,∮6,∮12.7mm

Machine structure

Industry square tube structure

industry square structure,table moving


Transmission

XY ball screw, Y high accuracy gear rack

XYZ TBI ball screw


XYZ rails

PMI square rails

Dust-proof system

XYZ high quality dust cover

Mechanical accuracy

<0.03/300mm

Engraveing speed

8000mm/min

10000mm/min

Data transmission

PC-connection directly


Support format

G code or HPGL

Working voltage

AC220V/50Hz or 380V/50Hz

Net weight

600kg

100kg

1200kg

3500kg

1300kg


If you are not sure which machine you should choose,kindly afford the following information.Suitable machine will be recommend to you.
1) what materials do you want to engrave or cut?
2) what's the max. size of the materials (Length*Width*Thickness)?

Any question,kindly contact us :
Cindy(overseas department salesman)
Cell phone:+86 15715603006




Anhui Aikefa (Flycut) CNC Technology Co., Ltd. is a high-tech enterprise which researches, develops, sells and services of numerical control and photoelectric products. The company has independent license for export and import, bears "Innovate technology and create values for users" as its managing idea to design kinds of practical numerical and photoelectric products that can be easily operated.

Teamwork Suppliers: France Schneider, American GSI, Germany Rofin, Italy HSD, Italy Colombo, Taiwan PMI, Taiwan TBI, Taiwan Syntec, Japan Panasonic, Japan Yaskawa, etc.

Service concept: Innovation, technology, services

Innovation: Scientific and technological innovation as the basis for enterprise development, not only in technical innovation in products, markets, management, structure and concepts to innovation.

Technology: Continuously improve staff skills, enhance their technical content; Innovative business model to meet market and customer requirements.

Service: Professional engineers to provide you with software and training machines, regular visits to track your usage. QQ, Skype, WeChat, telephone, 24-hour online open.
