| Prod Model: |
FINEN-WL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
4u,6u,9u,12u,15u,18u |
| Loading Capacity: |
60kg |
| Depth: |
450mm |
| Width: |
550mm |
| Material: |
SPCC Cold Rolled Steel |
| Color Options: |
Black,Gray,White |
| Front Door: |
Toughened Glass |
| Service: |
OEM |
| Side Panel: |
Removable |
| Certificate: |
ISO |
| Type: |
Network Cabinet |
| Fan Number: |
One |
| Usage: |
Network Integration System |
| Certification: |
RoHS |
| Installation: |
Wall-Mounted Cabinet |
| Condition: |
New |
Product Description

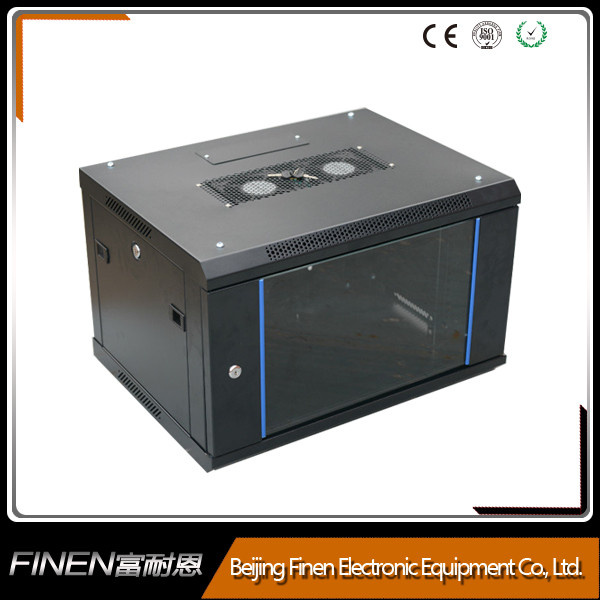

6u 12u Wall Mounted Network Cabinet factory-Finen WL Series
1).20 year's production experience.
2).Certificate:ISO9001.
3).Quick delivery(7-10 days)
4).High quality & reasonable price
Product Information
1. Feature
1) Loading Capacity: 60kg
2) Mounting profile: 2.0mm, others: 1.20mm
3) Reversible, front tempered glass door
4) Toughened glass on front door
5) Side Panel: Removable Side Panel, Easy To Install And Miantain (Lock Optional)
6) Revolving front locks
7) Vented front and sides for cooling
8) Pre-punched provision for 1 fan (fan not included)
9) Pre-punched holes for cabling
2. Main Material: SPCC Cold rolled steel
3. Surface Finish: Degreasing, Pickling, Phosphating, Powder coating.
4. Degree of Protection: IP20
5. Loading Capacity: 60kg
6. Standard:
Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
Nework Cabinet Applications
Rack cabinets for Information Technology and telecommunication appliances use:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment
Who are we?
1). A manufacturer of server rack and network cabinet with 30 years experience
2). 53 skilled engineer and more than 400 workers
3). 35000 square meters workshop
4). Customizing services, OEM services, etc.
Cabinet Package ContentS
No.
Component name
Quantity
Unit
Material
Remark
1
Top Cover
1
pc
SPCC cold rolled steel T1.0
2
Fan
1
pc
---
With 1 fan or without
3
Mounting Profile
4
pc
Zinc plated T2.0
4
Mounting angle
6
pc
SPCC T1.2
2pcs
5
Frame
2
pc
SPCC T1.2
6
Lock
2
pcs
---
Round lock
7
Front Door
1
pc
SPCC T1.2
Tempered glass door
9
Side Panel
2
pcs
SPCC T1.0
Removable
10
Bottom Panel
1
pc
SPCC T1.0
11
Screw
20
pcs
---
20pcs
12
Cage nut
20
pcs
---
20pcs
13
Keys
1
set
14
Shelf
1
psc
SPCC T1.0
15
Other components are available according to request
Specification
Model No.
Capacity(U)
H*W*D(mm)
Packing size(W*D*H)
Cubic(CBM)
WL-45540
4
280*550*450mm
310*580*480mm
0.086
WL-65540
6
350*550*450mm
370*580*480mm
0.103
WL-95545
9
500*550*450mm
530*580*480mm
0.147
WL-125545
12
635*550*450mm
665*580*480mm
0.184
WL-155545
15
769*550*450mm
800*580*480mm
0.223
WL-185545
18
901*550*450mm
930*580*480mm
0.259
