| Prod Model: |
DT6090D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Water Channel: |
Stainless Steel |
| Application: |
Stone Industry |
| Current: |
AC |
| Function: |
Lettering |
| Application Material: |
Marble |
| Automation: |
Automatic |
| Control: |
CNC |
| Certification: |
SGS |
Product Description

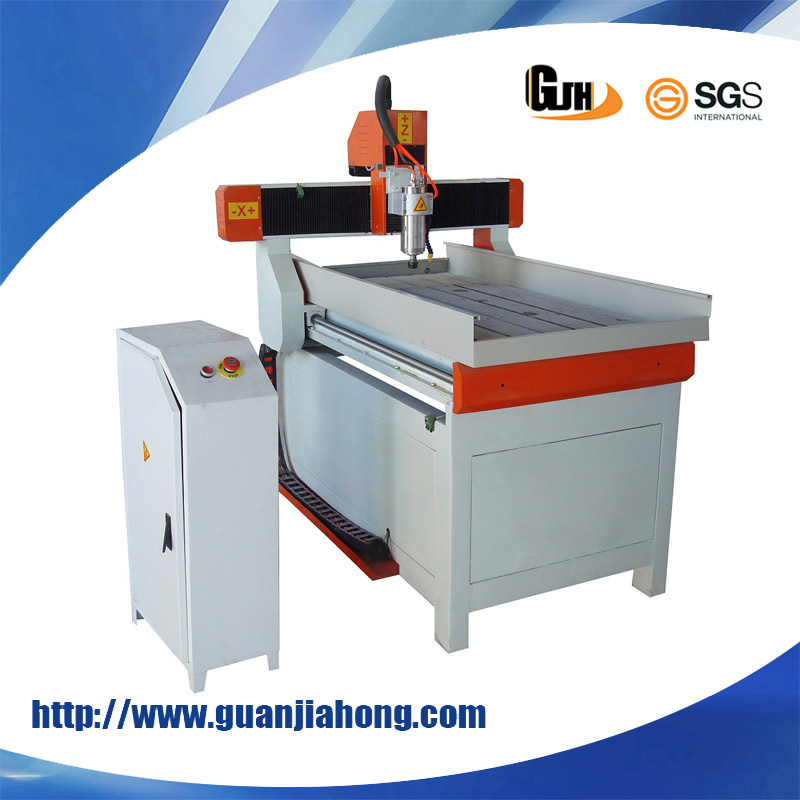

CNC Engraving Machine CNC Router for Marble/ Granite/ StoneThis machine can process (both engrave and cut) stone and wood.
PERFORMANCE:
1. Aluminum alloy working table and water tank.
2. High-power water cooling spindle for marble machine.
3. Imported inverter and electronic parts.
4. Roller could help you install goods more easier.
5. Imported air-pressure controller and limited switch.
6. Stable performance, reliable quality, super power, low consumption.
FIELD OF APPLICATION:
3D engraving, line engraving, cutting, edge inversing, drilling on natural marble, granite, artificial stone, tombstone, milestone, ceramic tiles, glass and so on.
1. Cylinder stone processing: Columns, the Roman pillars, dragon post, hollow columns, the pillars, column cap, polished pillars, new lines pillars.
2. Courtyard stone products: The western architectural sculpture, eastern architecture sculpture, character/Buddha carved stone, stone reliefs/YingDiao, animal sculpture, a pavilion/temple carvings, etc.
3. Environment and decorative: Apply stone, road-edge stone, stair stone, small squares, makeup stone, wall stones, pebbles, car stops stone/blind stone, scenic rocks, mushroom rock, culture stone etc.
4. Building decoration supporting stone: Arch arch, stone railing, stone line, Mosaic/stone spelling flowers, stone fireplace, carved stone pillars, stair/grain footsteps, stone censer, etc
5. Stone furnitures: Stone table board, stone stage, stone washbasin/washbowl table/chair/bed, stone crafts, modeling stone etc.TECHNICAL PARAMETER:| NO. | Description | Parameter |
| 1 | X, Y, Z Working Area | 600 × 900 × 200mm |
| 2 | Table Size | 720X1135mm |
| 3 | Working Accuracy | < +/- 0.05mm |
| 4 | X, Y, Z Traveling Positioning Accuracy | ± 0.03/300mm |
| 5 | X, Y, Z repositioning Positioning Accuracy | ± 0.05mm |
| 6 | Frame Structure | Welded Structure |
| 7 | X Y Z Guide Rail | High precision linear guide rail |
| 8 | X Y Transmission | Imported Rack Gears |
| 9 | Z Transmission | Imported Ball Screw |
| 10 | Max. Consume Power | 4KW |
| 11 | Max. travel speed | 0-6000mm/min |
| 12 | Max. Working Speed | 0-3000mm/min |
| 13 | Spindle Power | 2.2kw water-cooling spindle |
| 14 | Water Tank/Pump | included |
| 15 | Spindle Speed | 0-24000RPM |
| 16 | Cutting Tool Diameter | φ 3.175/4/6/8/12.7 |
| 17 | Table | Aluminum T-Slot working table |
| 18 | Working Voltage | AC220V/50/60Hz, 1PH |
| 19 | Driving motor | Stepper Motor |
| 20 | Driver | LEADSHINE860 |
| 21 | Format of Instructions | G code, *uoo, *mmg, *plt |
| 22 | Operating System | DSP System(optional NC-studio) |
| 23 | Software | Ucancam, Type3, Artcam |
| 24 | Interface | USB |
| 25 | Flash Memory | 128M |
| 26 | Collet | ER25 |
| 27 | Running circumstance | Temperature: 0- 45 degree
Relative humidity: 30% - 75% |
| 28 | Packing Size | 1495X1200X1710mm |
| 29 | Net Weight | 200KG |
| 30 | Gross Weight | 300KG |
The above parameters can be changed according to customer's requirements .
|

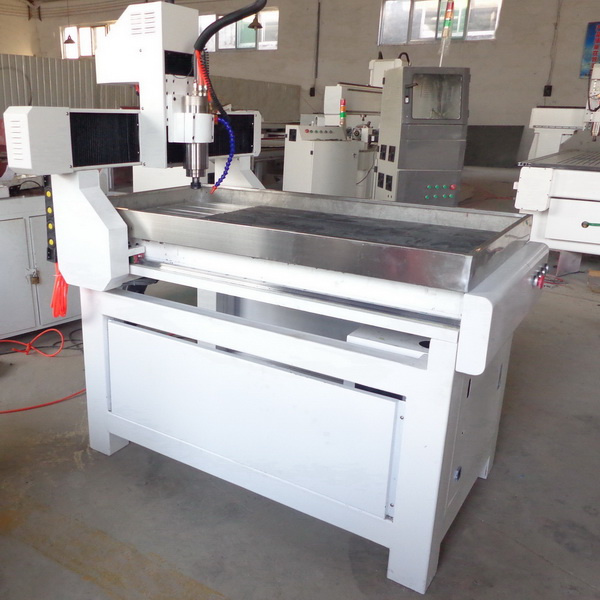

Real Images for our CNC Router machine, that is our reliable quality products.

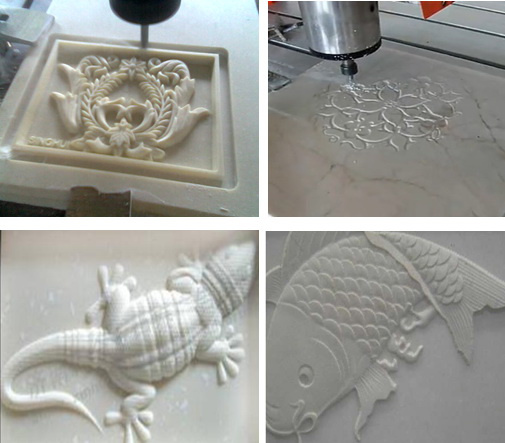

Our Perfect Caving Samples for Stone:

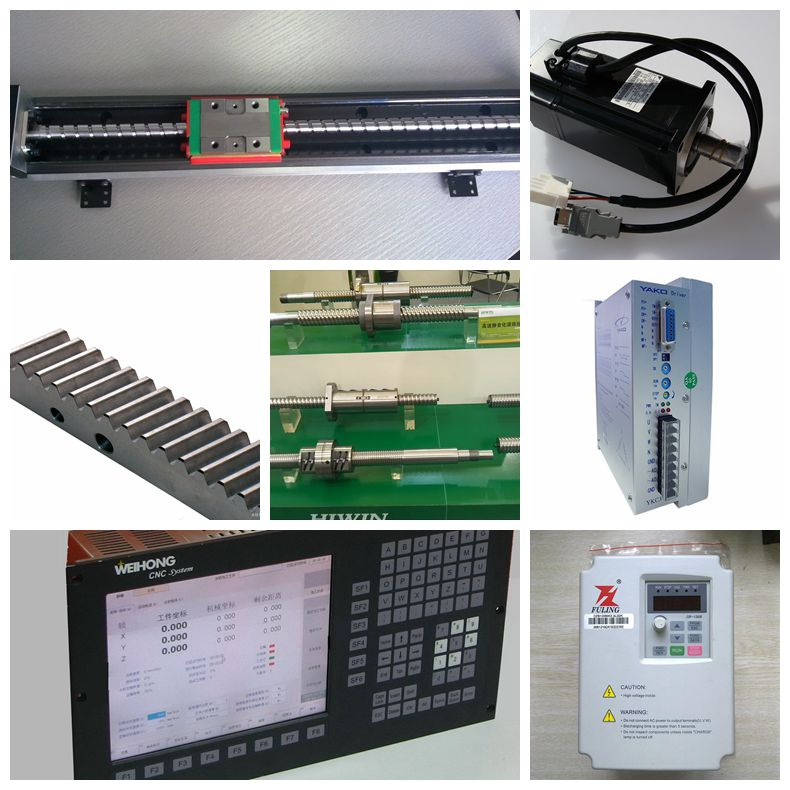

High quality Control system and High Precision Accessories:
Sincerely waiting for your any inquiry, and trust that we can provide you professional suggestions.
Guarantee & After-sale service
1. One year warranty under normal use and we supply lifelong maintenance.
2.24 hours technical support by Phone, Email, Skype, Msn, or romote.
3. Free training to make sure you master the operation of the cnc router.
OEM Service Available
1. Usually, we will manufacturer the machine as our regular design.
2. X Y Z Working Area could be custmer-oriented designing.
3. Special configuration could be customer-oriented designing.
