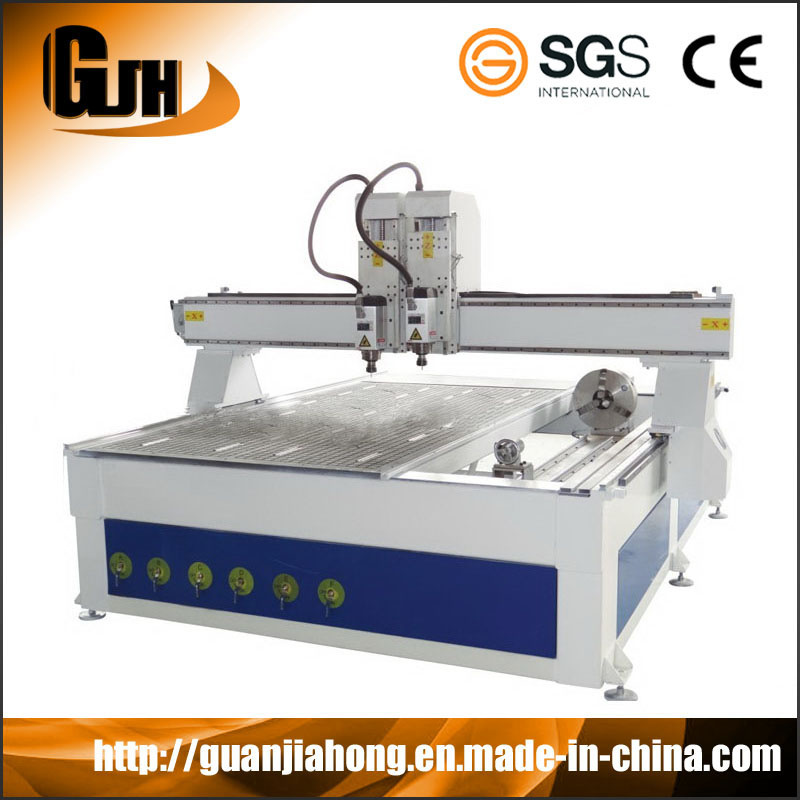

2D & 3D, Multi-Workstage, with Rotary, 1325 Mutil Function Wooden Carving CNC Router
| Price: |
US $ 6000-8000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
DT1325MR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spindle: |
Domestic 4.5 Kw, Hsd for Optional |
| Guild Rail: |
PMI, Imported From Taiwan |
| Screw: |
PMI, Imported From Taiwan |
| Control System: |
Embedded DSP Numerical One |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Double-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
Product Description

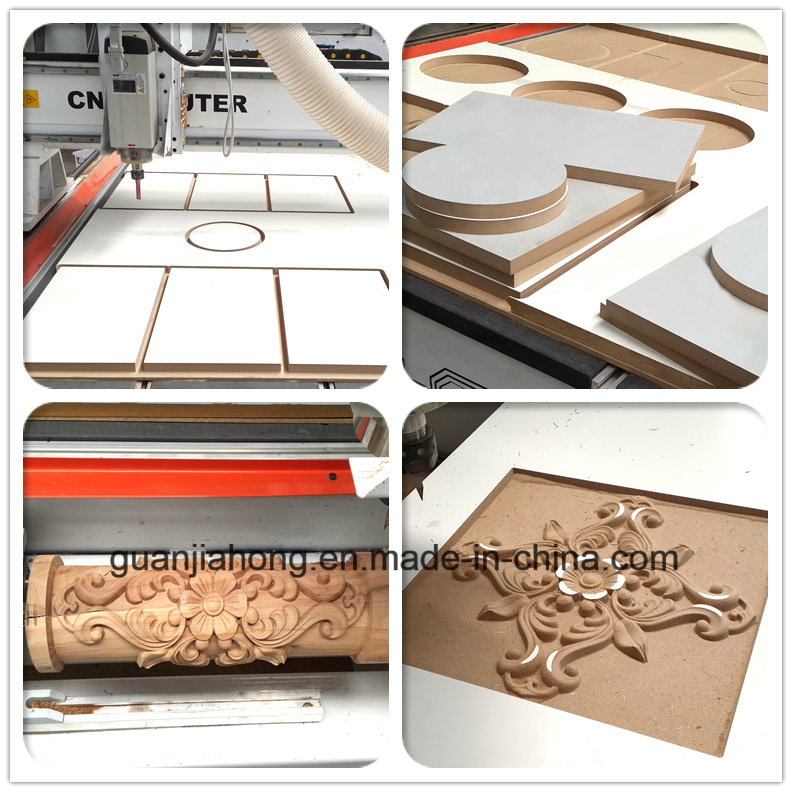

2D & 3D, Multi-workstage, Vacuum table, with Rotary axis, 1325 Mutil function wooden carving Cnc Router machineWorking shows:
Products Introduction:1, The overall bed lathe is made of cast steel under welding processing, stand-up and no deformation. Strong steel, big forceful, smooth rotation, making a long run at high speed no distortion, no jitter.
2, Currently the most cost-effective an economical product, matching domestic 4.5KW water-cooled spindle (optional imported Italian air-cooling spindle) plus with removable rotating shaft, can be processed cylindrical products.
3. Y axis dual motor drive, select matching, to ensure smooth movement. X, Y axis Taiwan PMI linear guide + high-precision rack and pinion drive, to ensure that the machine can withstand heavy load with high-precision high-speed movement.
4, The removable rotary axis machine tool chuck (front claws), and after the end of the thimble. Movement with Taiwan after the end of thimble Intime square linear guide, is extremely accurate concentricity. ZL-102 chassis is the use made of the whole cast finishing, maximum workpiece diameter of 200 mm, Max length 1500 mm, workpiece weight by up to 50 kg, and a balance wheel configuration artifacts.
5, the device can be placed on a platform or two detachable rotating shaft, without processing cylindrical workpiece, the axis of rotation can be removed, for flat engraving, of a machine, saving the cost of equipment purchases to expand the production scale.
6, if you choose to spin axis diameter greater than 300mm, we will design your fixed axis of rotation, for you to eliminate the fatigue loading axis of rotation, and individually designed drive system, simply press the switch button on your work.Software features:1, This machine can engrave any design, support scanners, direct support UG, ArtCAM, Type3, CorelDraw, Proe, Wentai, carving and many other G-code format generated by CAD/CAM
2, Embedded DSP numerical control system or the PCI controller card control system can achieve breakpoint carving off memory, can be completely off-line operation.Applications:Three dimensional plane engraving for wave plate, cabinet doors, wood doors, doors, paint doors, screens, Photo Frame, coffee table, bed, antique furniture, Buddha, sandalwood and other relief, engraved, engraving and milling, engraving process.
Rotary engraving used for the body and cylinder engraving, such as hardwood, marble, white marble columns and other material relief carving, relief column stairs, statues, animals, crafts people, table legs, bed legs and so on.Configruation:| Parameter | Multi-function engraving machine |
| Working size | 1300*2500*300mm/1800x2500mm |
| Max. engraving speed | 10000mm/min |
| Repeat positioning accuracy | ±0.02mm |
| Spindle | 4.5KWwater-cooling spindle ( Optional Italy air-cooling spindle ) |
| Spindle speed | 6000-24000rpm |
| Tools diameter | 3.175 mm \ 6 mm \ 12.7 mm |
| Transmission system | X \ Y Taiwan PMI high-precision \ zero clearance increased linear guide+ rack |
| Z Taiwan PMI guide + screw |
| Rotary drive system | Stepper motor ( single control drive ), Taiwan PMI guide |
| Rotary | length 1200mm and diameter 200mm |
| Drive system | Stepper motor ( Optional AC servo motor ) |
| Working voltage | AC380V/50HZ |
Jinan Guanjiahong CNC Machinery Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory, which is a professional manufacturer for research and development, production of CNC router, Laser engraving machines, Fiber laser cutting machine, Heat press, Edge banding machine, and ect. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.
After nearly 13 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
