| Prod Model: |
HT-CPT 60*60mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Industrial Heater: |
60*60mm Ceramic Infrared Heater |
| Insulation: |
Ceramic |
| Heating Wire: |
Nicr 80/20 |
| MOQ: |
1 Piece |
| Certificate: |
RoHS, ISO, CE |
| Size 1: |
60*60mm |
| Size 2: |
122*60/120*60mm |
| Size 3: |
122*122/120*120mm |
| Size 4: |
245*60mm |
| Size 5: |
245*80mm |
| Application: |
Heater |
| Structure Material: |
Ceramic |
| Heat Transfer Surface: |
Plate Heat Exchanger |
| Principle: |
Infrared Heating |
Product Description

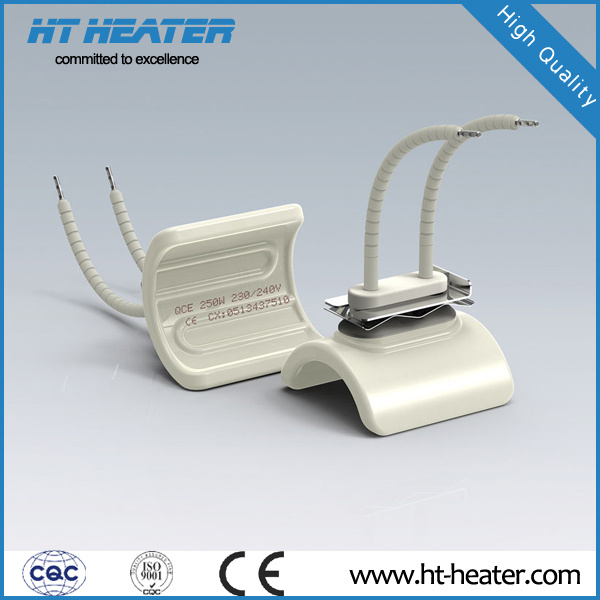

60*60mm Ceramic Infrared Heater
60*60mm Ceramic Infrared Heater
Ceramic heaters
Ceramic infrared heating elements are efficient, robust heaters which provide long wave infrared radiation.
They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing,
Printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas.
Most plastics and many other materials absorb infrared best in this range,
Which makes the ceramic heater the most efficient infrared radiant emitter on the market.
Specification:
1, Nickel chrome resistance wire(NiCr 80/20)
2, Color: White/Black
3, Low noise type K thermocouple mounted internally in center heater. Optional type J thermocouple is also available.
4, Heater Voltage: 120V 220V 230V 240V 480V standard (other voltages available on request)
5, Useful wavelength range: 2-10 microns
6, Operate in the temperature is 300° C to 700° C (572° F - 1292° F)
7, Average Operating Life-Up to 20, 000 hrs depending on conditions. Recommended radiation distance from heater is 100 mm to 250 mm.
8, Supplied with 100mm ceramic beaded power leads
Applications:
Ceramic heater can be widely used in vacuum forming, dry food, medical treatment sanitation etc kinds of places of infrared dry firing,
Solidify etc. It has perfect saving energy effect in electron, textile, light industry, chemical, medicine, food industry etc,
Has obvious social profit and economy profit.
|
Size(mm) |
Type |
Power |
|
60*60 |
Curved/flat/Hollow |
Available in 125w and 250w |
|
122*60/120*60 |
Curved/flat/Hollow |
Available from 125w to 500w |
|
122*122/120*120 |
Curved/flat/Hollow |
Available from 150w to 750w |
|
245*60 |
Curved/flat/Hollow |
Available from 150W to 1000w |
|
245*80 |
Curved/flat/Hollow |
Available from 150w to 1000W |
