| Prod Model: |
CL503 |
| Brand: |
Foru |
| Capacity: |
5000kg |
| Max Lifting Height: |
2000mm |
| Platform Size: |
2000*2400mm |
| Voltage: |
380V/415V |
| Power: |
7.5kw |
| After Sale Service Support: |
Engineers Available to Service Machinery Overseas |
| Min Lifting Height: |
500mm |
| Warranty: |
12 Months After Arrived Buyer's Warehouse |
| Certificate: |
Ce ISO9001 |
| Application: |
Warehouse Cargo Lift |
| Carrying Capacity: |
Weight Level |
| Driven Type: |
Hydraulic |
| Running Mode: |
Stationary |
| Feature: |
Explosion-Proof |
Product Description

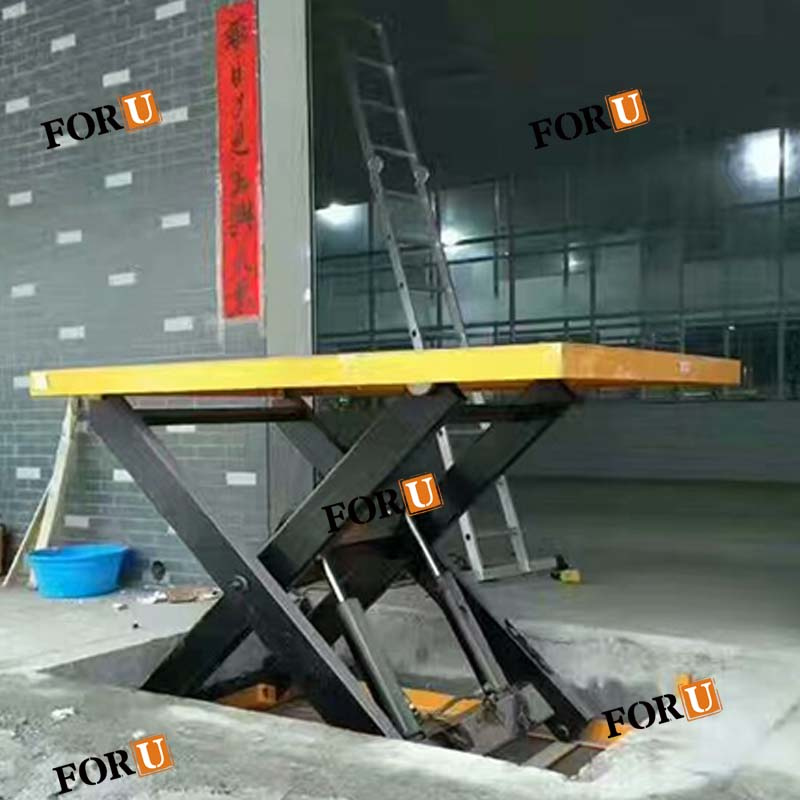

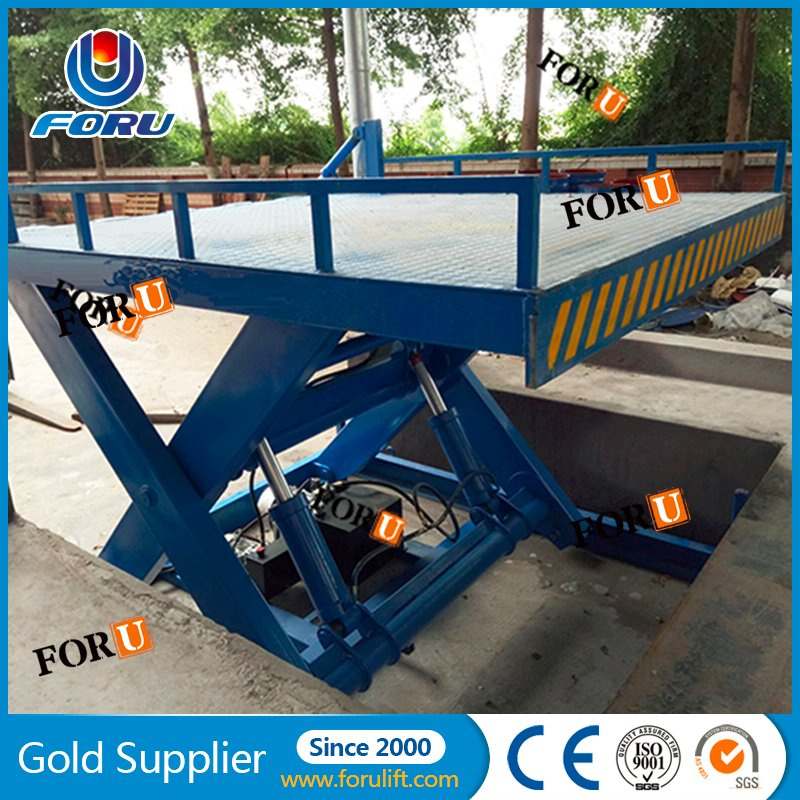

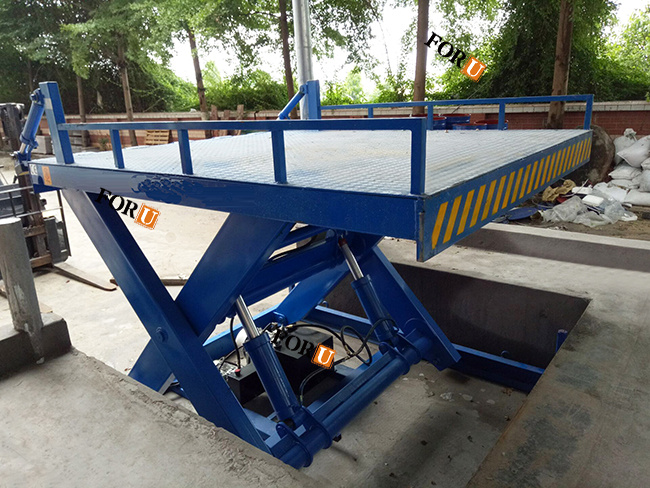

5ton garage cargo vertical scissor lift table manufacturers
Product DescriptionVertical scissor lift used for transfer cargo between different floors. Self-height is about 120-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operation.

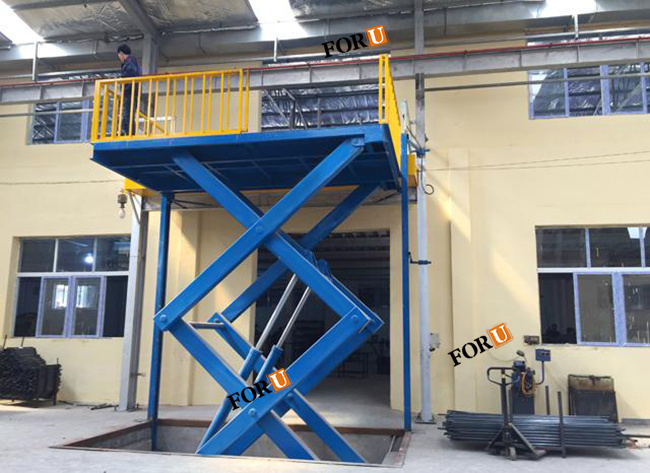

Cargo lifting platform can be installed indoor and outdoor of a warehouse. To lift cargos, cars or pallets among the different floors. Hydraulic platform lifts are produced according to customer requirements.Video:
https://youtu.be/RByYodr9M4gYou can copy above link see the freight lift how working
Applications: --- Hydraulic cargo lift installed in the pit or the ground floor to convey the goods from one working level to another.
---Hydraulic cargo lift indoor or outdoor is ok. With a heavy duty, safe and reliable.
--- the hydraulic cargo lift could be controlled at any floor. Control panels are available at the designated floors and one is on the lift platforms.
Main features1) Overload protection devices are available.
2) Goods lift system has the ani-drop function when any failure happens.
3) The goods lift's hydraulic cylinder as main driving force and the heavy chain and wire rope to guarantee to lift security and stability.
4) Hydraulic lifting system and electric hierarchical control, multi-control points at the different floors could be realized.
5) Goods lift self-height is only 150-300mm, usually 150-300mm lift pit or no need to dig lift pit.
6) Emergency manual valve: In case power off, the lift can be lowered by manually
Model List| Model | Capacity | Lifting height | Platform size | Pumb station power | Working voltage |
| CL103 | 1ton | 3m | 2000*2500mm | 3kw | 380v 3phase 50hz |
| CL206 | 2ton | 6m | 2200*2800mm | 4kw | 380v 3phase 50hz |
| CL305 | 3ton | 5m | 2500*3000mm | 4kw | 380v 3phase 50hz |
| CL503 | 5ton | 3m | 3000*3500mm | 7.5kw | 380v 3phase 50hz |
| CL806 | 8ton | 6m | 2800*3000mm | 11kw | 380v 3phase 50hz |
| CL1006 | 10ton | 6m | 3500*5000mm | 15kw | 380v 3phase 50hz |
| All above accept customized according to customer's requirements |
Service & processingFORU is the professional manufacturer of hydraulic lifts since 2000. Our factory covers 210, 000 square meters and has a series of modern production equipment, auto-cutting equipment, automatic equipment, automatic abrasive blasting production rust removal line. Spray paint line, automatic welding robot and so on. We have been exporting to 52 countries.
Welcome to visit our factory and test our machines' quality, sincerely.
Pre-sales service* technical supports and suggestions before you order a machine according to your workplace.
* all the machines will be fully tested before shipments
* view our factory.
After-sales service
* operation manual and installation manual
* Engineers available to service machinery overseas.
* 12 months warranty period and we will provide the consumable parts at cost price after the warranty period
* 24-hour technical support by emails, calling or videos
Packaging & DeliveryStretch film & plywood case outside of electric cargo lift
Delivery detail:
Shipped in 25 days after payment
Thanks for your reviews and looking forward to being one of your specialized a supplier in the industrial lift business!
Foru Enterprise Limited is located in Jinan, China and was founded in 2000, We specialize in the development, manufacture, and marketing of aerial work platform, including telescopic boom lift, articulated boom lift, scissor lift, vertical platform lifts, loading ramp, dock ramps, wheelchair lits, etc. Our R&D team, whose members have explored, studied and developed construction machinery for 16 years, specialized in the hydraulic lift platform. We have won more than 20 national patents, in addition to National Science and Technology Achievement Award.
Our main products are telescopic boom lift, articulating boom lift, scissor lift and truck mounted platform, which with the feature of superior quality, outstanding reliability, powerful lift capacity, and flexible operation. Our 6-45m aerial work platform is used in construction, municipal projects, power stations, shipyards, and many other fields, meeting the requirements of a wide variety of customer needs.
Foru focus on product quality and innovation. We manage our company according to the GB/T19001-2008 quality management system, which ensures our increased efficiency and reduced costs. We provide our top notch products in accordance with the European Seiko standards, such as EN280: 2001, ISO 9001, Q/ADZV001-2008 and JG/T5101, ensure safety and efficiency of users.
We supply different hydraulic lift platforms. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
