| Brand: |
Foru |
| Capacity: |
3000kg |
| Max Lifting Height: |
800mm |
| Platform Size: |
2000*200mm |
| Power: |
4kw |
| Voltage: |
220V/380V/415V |
| After Sale Service Support: |
Engineers Available to Service Machinery Overseas |
| Min Lifting Height: |
350mm |
| Warranty: |
12 Months After Arrived Buyer's Warehouse |
| Certificate: |
Ce ISO9001 |
| Application: |
Warehouse Fixed Scissor Lift |
| Carrying Capacity: |
Weight Level |
| Driven Type: |
Hydraulic |
| Running Mode: |
Stationary |
| Feature: |
Explosion-Proof |
Product Description

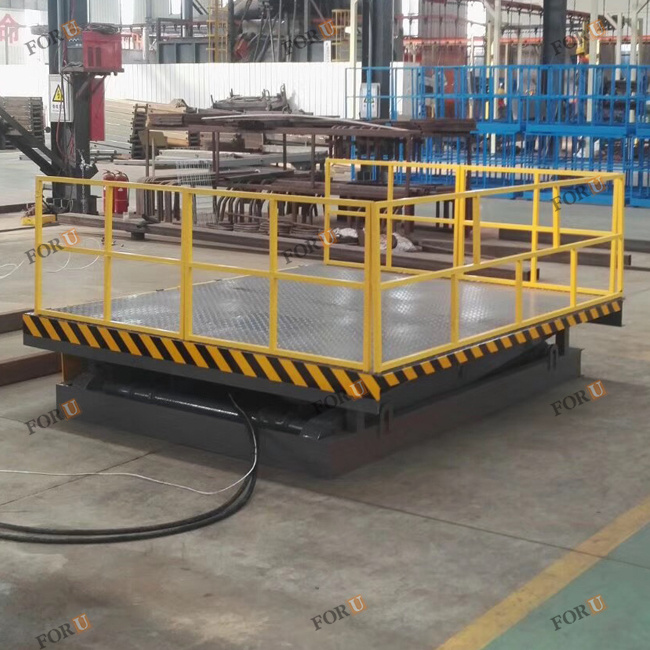

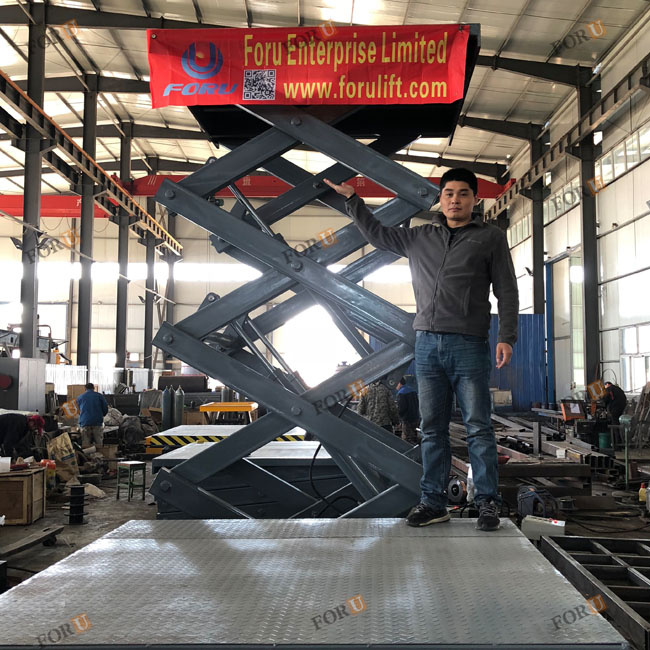

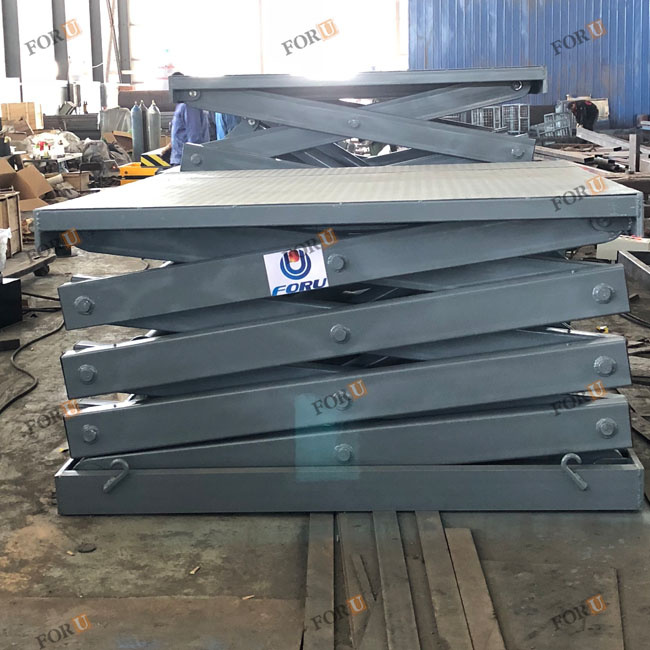

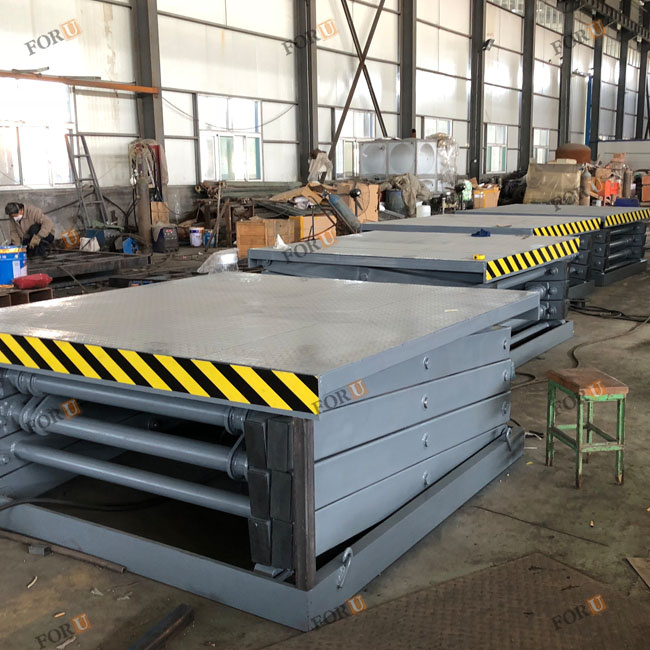

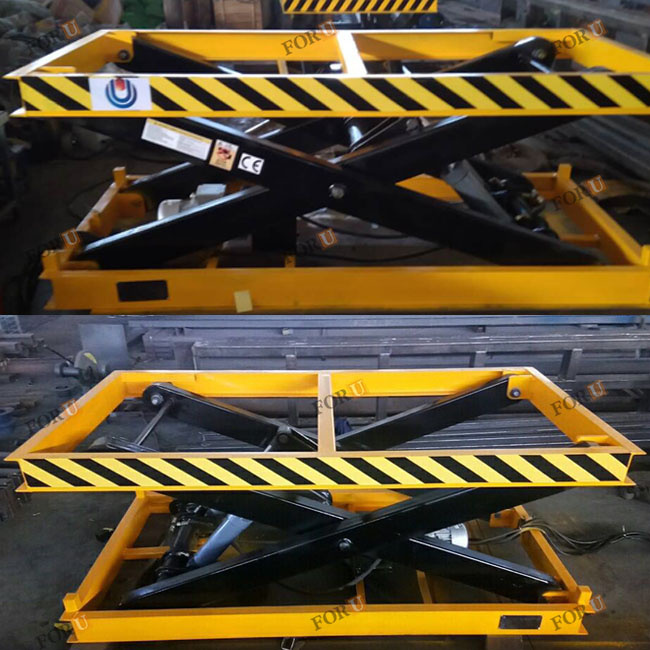

1ton hydraulic Manual scissor lift tableProduct DescriptionThe Stationary hydraulic scissor lift is characterized by large carrying capacity, easy operation & reliable performance. It can replace elevator to lift goods up to a certain store.
A stationary scissor lift is a special equipment for wide range of aerial work. Every instrument of this lift characterized by a scissor mechanical structure, solid structure, large carrying capacity, stable lifting, easy installation, easy maintenance, it makes possible for the operator to lift more things with high stability.
A stationary scissor lift is a special equipment for wide range of aerial work. Every instrument of this lift characterized by a scissor mechanical structure, solid structure, large carrying capacity, stable lifting, easy installation, easy maintenance, it makes possible for the operator to lift more things with high stability.
At the same time, it decreases the risk of working on upper air. It is adaptable to high-frequency continuous running. The stationary scissor lift table can elevate large tonnage goods stable.
You can copy above link see the freight lift how working

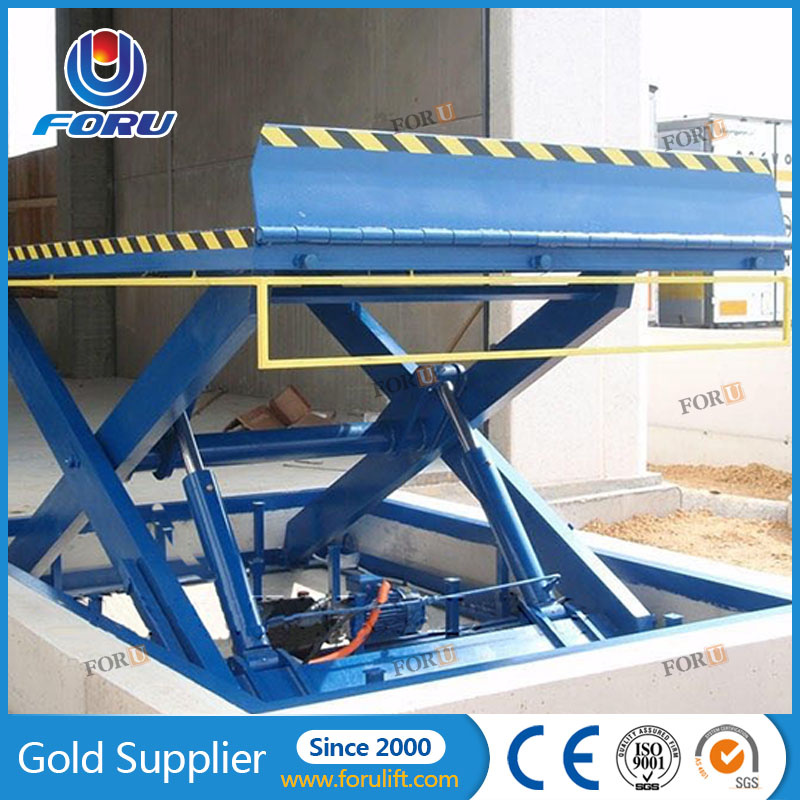

Applications: --- Hydraulic cargo lift installed in the pit or the ground floor to convey the goods from one working level to another.
---Hydraulic cargo lift indoor or outdoor is ok. With a heavy duty, safe and reliable.
--- the hydraulic cargo lift could be controlled at any floor. Control panels are available at the designated floors and one is on the lift platforms.
the stationary scissor lift is manufactured to higher standard and designed for safe & easy use.
Widely used for loading & unloading of the material from one shop floor to another shop floor.
It can be installed into the civil pit & other floor as well.
Model List| Model | Capacity | Lifting height | Platform size | Pumb station power | Working voltage |
| SSL103 | 1ton | 3m | 2000*2500mm | 3kw | 380v 3phase 50hz |
| SSL206 | 2ton | 6m | 2200*2800mm | 4kw | 380v 3phase 50hz |
| SSL305 | 3ton | 5m | 2500*3000mm | 4kw | 380v 3phase 50hz |
| SSL503 | 5ton | 3m | 3000*3500mm | 7.5kw | 380v 3phase 50hz |
| SSL806 | 8ton | 6m | 2800*3000mm | 11kw | 380v 3phase 50hz |
| SSL1006 | 10ton | 6m | 3500*5000mm | 15kw | 380v 3phase 50hz |
| All above accept customized according to customer's requirements |
Service & processingFORU is the professional manufacturer of hydraulic lifts since 2000. Our factory covers 210, 000 square meters and has a series of modern production equipment, auto-cutting equipment, automatic equipment, automatic abrasive blasting production rust removal line. Spray paint line, automatic welding robot and so on. We have been exporting to 52 countries.
Welcome to visit our factory and test our machines' quality, sincerely.
Pre-sales service* technical supports and suggestions before you order a machine according to your workplace.
* all the machines will be fully tested before shipments
* view our factory.
After-sales service
* operation manual and installation manual
* Engineers available to service machinery overseas.
* 12 months warranty period and we will provide the consumable parts at cost price after the warranty period
* 24-hour technical support by emails, calling or videos
Packaging & DeliveryStretch film & plywood case outside of electric cargo lift
Delivery detail:
Shipped in 25 days after payment
Foru Enterprise Limited
Shandong Onetouch Business Service Co., Ltd
Facebook:
Web: www.forulift.com
The stationary scissor lift is manufactured to a higher standard and designed for safe & easy use.
Widely used for loading & unloading of the material from one shop floor to another shop floor.
It can be installed in the civil pit & other floors as well.
Foru Enterprise Limited is located in Jinan, China and was founded in 2000, We specialize in the development, manufacture, and marketing of aerial work platform, including telescopic boom lift, articulated boom lift, scissor lift, vertical platform lifts, loading ramp, dock ramps, wheelchair lits, etc. Our R&D team, whose members have explored, studied and developed construction machinery for 16 years, specialized in the hydraulic lift platform. We have won more than 20 national patents, in addition to National Science and Technology Achievement Award.
Our main products are telescopic boom lift, articulating boom lift, scissor lift and truck mounted platform, which with the feature of superior quality, outstanding reliability, powerful lift capacity, and flexible operation. Our 6-45m aerial work platform is used in construction, municipal projects, power stations, shipyards, and many other fields, meeting the requirements of a wide variety of customer needs.
Foru focus on product quality and innovation. We manage our company according to the GB/T19001-2008 quality management system, which ensures our increased efficiency and reduced costs. We provide our top notch products in accordance with the European Seiko standards, such as EN280: 2001, ISO 9001, Q/ADZV001-2008 and JG/T5101, ensure safety and efficiency of users.
We supply different hydraulic lift platforms. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
