| Prod Model: |
THR-EB513 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
2170L*1000W*450~650hmm |
| Certificate: |
CE, ISO |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |

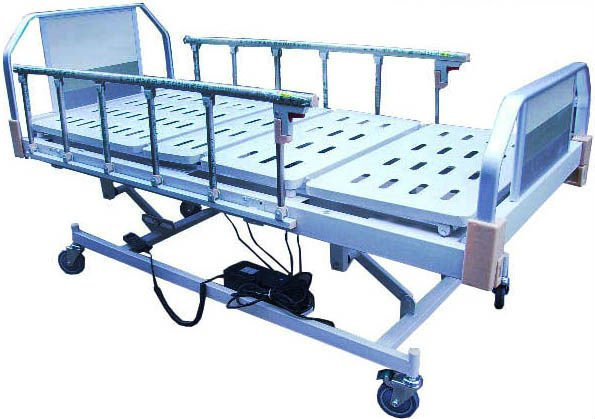

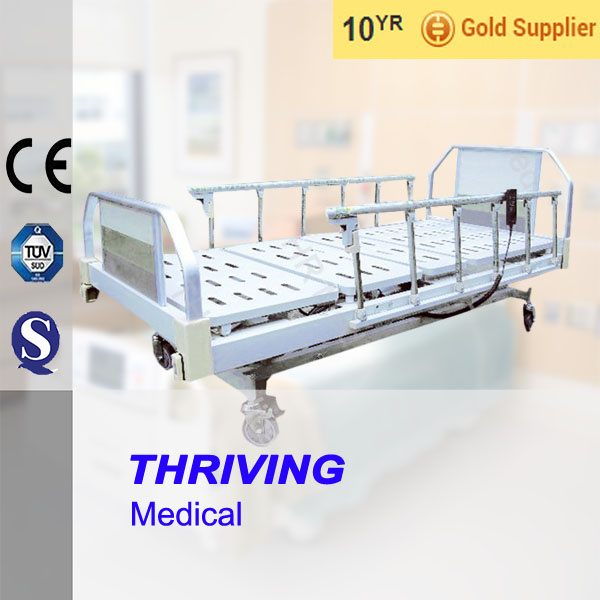

Product Description
Function:
Height adjustable: 250mm
Back-rest lifting angle is 0-80° (± 5° )
Knee-rest lifting angle is 0-40° (± 5° )
Trendelenburg and Rev. Trendelenburg: 12°
Detail description:
Dimension: L2170*W1000*H450-650mm
1. All parts are precision tooled to ensure uniform quality.
2. Integrated steel stamped frame is epoxy polyster power coated and baked, which is resistant to chipping and scratching.
3. Head/foot board is made from steel
4. Extruded aluminum collapsible type guardrails
5. Controller performs backrest/knee-rest, bed height and tilting adjustments
6. Bed locking is performed using central lock system
7. Four high quality master braking casters
8. Adjustable bed height: 200mm
9. Lifting angles:
A)back-rest: 0-80degree
B)knee-rest: 0-40degree
10. Chinese Motor or LINAK DC-actuator system(CE and UL approved)
11. Two section I. V. -rod cross-over, over bed table plate
12. Max Lading: 280kg
Standard Accessory:
Detachable Alumnium head/end bed board--1pair
Foldaway sixth railing made of aluminum-----1pair
High quality 5" braking castors---------4PCS
I. V. Drip holes---------------4PCS
Stainless steel I. V. Pole-------------1PC
