| Prod Model: |
WLS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| U Capacity: |
4u,6u,9u,12u,15u,18u |
| Loading Capacity: |
60kgs |
| Width: |
550mm or 600mm |
| Depth: |
450mm |
| Front Door: |
Toughened Glass and Removable |
| Side Panel: |
Removable |
| Service: |
OEM Available |
| Color: |
Black,Gray,White |
| Lock: |
Round Lock |
| Type: |
Network Cabinet |
| Installation: |
Wall-Mounted Cabinet |
| Certification: |
RoHS |
| Condition: |
New |
Product Description
Product Description

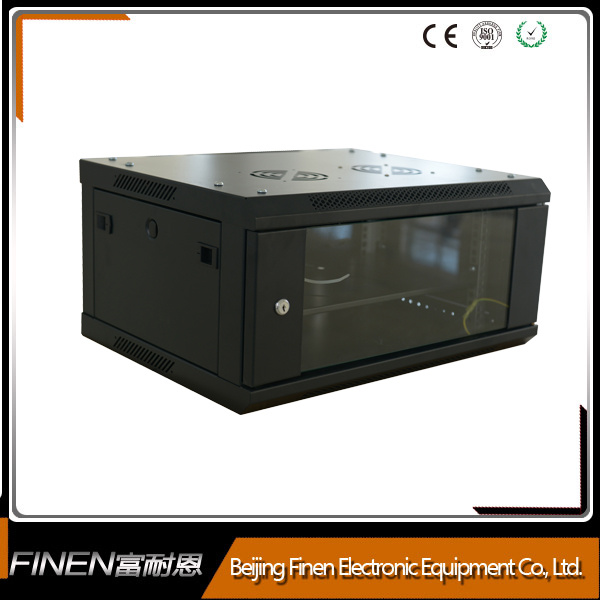

Removable glass front door wall mounted cabinet rack
1). 20 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery(7-10 days)
4)High quality & competitive price
Product Information
1. Feature
1). Loading Capacity: 60kgs(132lbs)

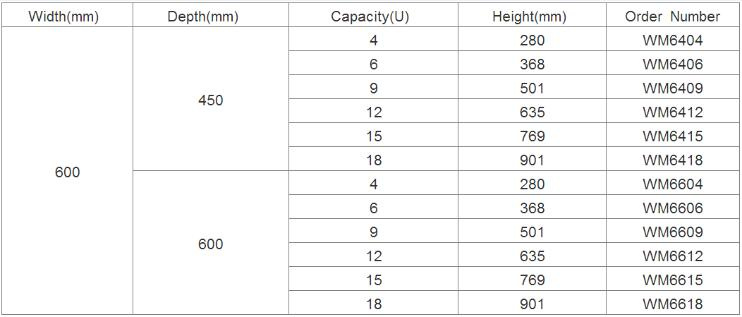

2). Capacity/Rack Units: 4U, 6U, 9U, 12U, 15U, 18U
3). Thickness:
Mounting profiles: 2.0mm(Zinc Plated);
Mounting rails: 1.5mm;
Other enclosures: 1.2mm

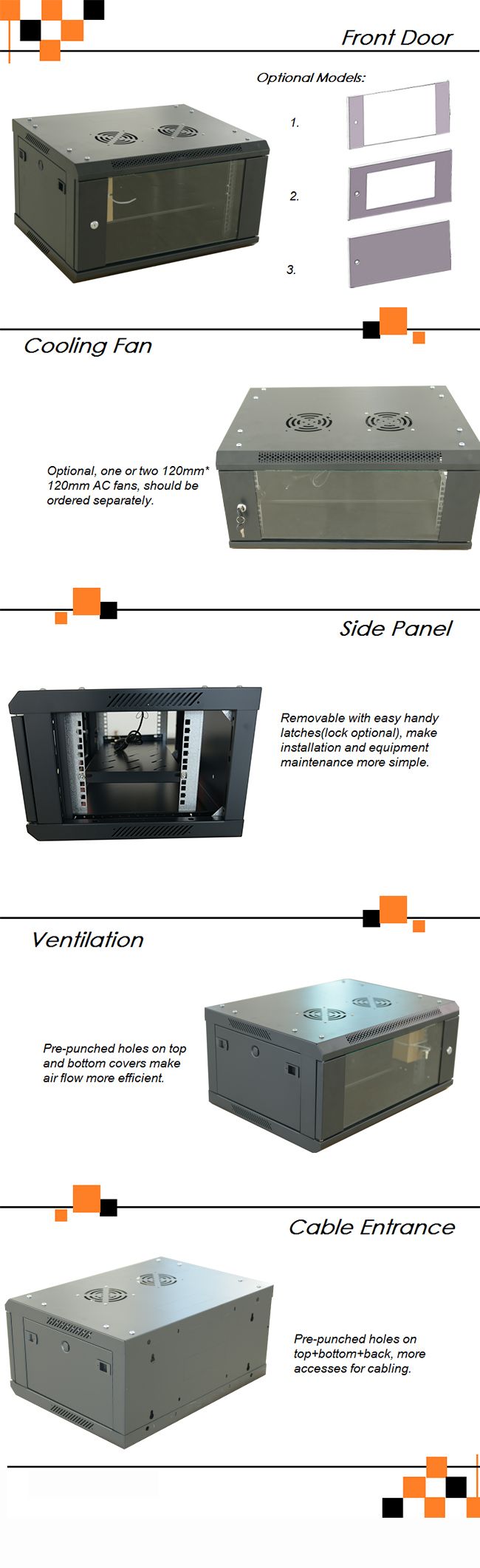

4). Doors: Reversible, tempered toughened glass front door and solid rear doors with round lock
5). Side Panel: Removable Side Panel with Easy Handy Latches or locks, Easy To Install And Maintain (Lock Optional)
6). Colors: Black-RAL9004; White-RAL7035; Grey-RAL7032
7). Vented front and sides for cooling, Excellent Air Ventilation Design with AC 120mm Cooling Fans
8) Pre-punched provision for 1 fan (fan not included)
9). Cooling Fan: Two/Four optional 120mm AC cooling fans
10). Three Ways, Top, Bottom, and Rear Cabling Tunnels
11) Pre-punched holes for cabling
12). Secure, firm and reliable
2. Main Material: SPCC high-quality Cold rolled steel
3. Surface Finish: Degreasing, Pickling, Phosphating, Powder coating.
4. Degree of Protection: IP20
5. OEM service available
6. Standard:
Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
Recommend Products
FINEN-A2 Series Toughened glass front door and solid rear door with round locks
FINEN-AS Series Toughened glass front door with air holes on door stripe, vented mesh rear door, handle locks, 18U, 22U, 32U, 37U, 42U
FINEN-A3 Series Vented mesh front and rear doors with handle lock, 18u, 22u, 32u, 37u, 42u with capacity 800kgs
FINEN-K3 Series Hexagonal mesh front and rear doors with moon locks
We are always developing the new design according to customer demands.
Network Cabinet Applications
Rack cabinets for Information Technology and telecommunication appliances use:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment
Who are we?
1). A manufacturer of server rack and network cabinet with 25 years experience
2). 53 skilled engineer and more than 400 workers
3). 35000 square meters workshop
4). Customizing services, OEM services, etc.
All you need to do - take it out of the box and start installing your hardware.
Designed and made from high quality steel, this Rack Cabinet has all the features you need to get your network up and running - FAST! ! !
All Rack Cabinets we manufacture, are built around universal 19" Rack-mount standards - designed to take Rack Mount equipment from other Vendors
