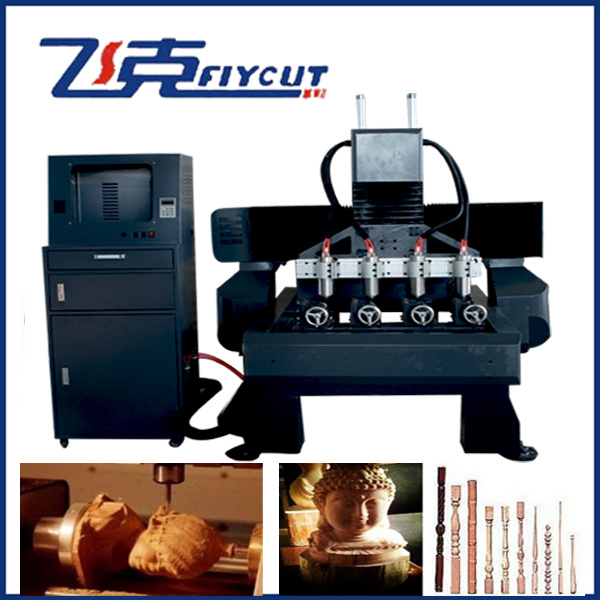

4D Flat Engraving Machine

Prod Model:	FCT-1625C&W-4S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rotary Length:	1000mm
Spindle Power:	Water Cooling 1.5kw*8
Motor Driver:	France Schneider Servo
Transmission:	Xz Ball Screw, Y Gear Rack
Rails:	PMI Square Rails
Spindle Layout:	Horizontal
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	ISO
Spindle Number:	4 Spindles

Product Description

Features:
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
6.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCA.


Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.



Technical parameters:


Model	FCT-1625C&W-4S
Rotary diameter	230mm
Rotary length	1000mm
Flat working size	1600×2500×200mm
Spindle power	Water cooling 1500W×8
Spindle rotate	6000~24000RPM
Tool diameter	3.175,4,6mm
Machine structure	Industry square tube structure
Transmission	XZ ball screw, Y high accuracy gear rack
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Mechanical accuracy	less than 0.03/300mm
Engraveing speed	8000mm/min
Data transmission	by pc connection directly or USB
Support format	G code or HPGL
Working voltage	AV220V/380V 50Hz
Net weight	1200kg



 OurServices
1.Under normal usage, 1 year for the whole machine,lifelong technical support.
2.Free technical support for lifetime, including training at factory, door to door service, such as training/ installment/ adjustment / maintenance.
3.Door to door service, you just need to bear round-trip tickets and accommodation.
4.Free installation,testing,training before shipping.
5.Advice for the best solutions for your requirements.


FAQ
1.How about the payment?
 T/T in advance. We can accept 40% deposit before mass production , and balance paid to us before delivery date.
2.How long is thedelievery time?
 For standard machines, it would be 7 days; For non-standard machines and customized machines according to clients specific requirements, it would be 14~25 days.
3.How about shipment details?
 On the basis of FOB or CIF price, we will arrange shipment for you.Others will be arranged by yourself.
