| Prod Model: |
A3 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Door: |
Flat Mesh Door and Single/Double Reversible Mesh/S |
| Height: |
18u 22u 32u 37u 42u 47u |
| Width: |
600mm,800mm |
| Depth: |
600mm,800mm,1000mm,1200mm |
| Shelve/Pallet: |
Adjustable SPCC |
| Front/Rear Lock: |
Ratational Spring Lock,Revolving Lock |
| Side Panel Lock: |
Single Optional,Alternative Round Lock |
| Side Panel Fit: |
Two Lever-Lid |
| Color: |
White,Black,Gray |
| Mounting Profile: |
with U and Figure |
| Type: |
Server Cabinet |
| Installation: |
Vertical |
| Certification: |
RoHS |
Product Description

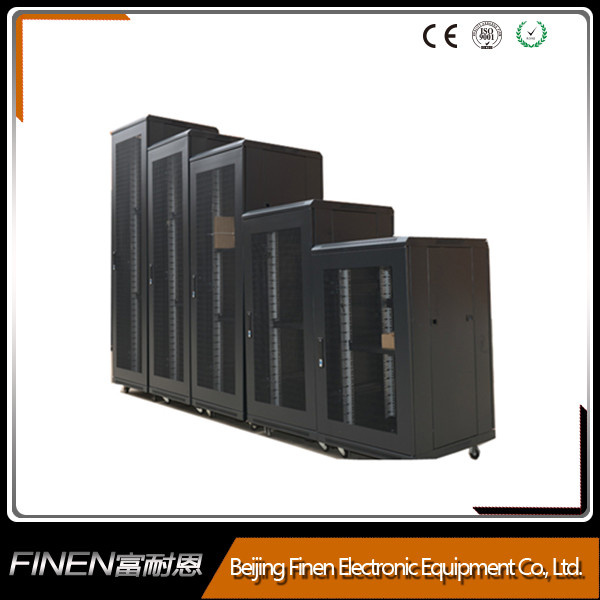

Flooring Standing Network Rack (FINEN-A3) for Data Center, Office and home use with Amazing Quality and Best Price from professional server rack MANUFACTORY
1). 20 year's production experience
2). Certificate: ISO9001. RoHs CE
3). High quality with competitive price. Built well and sturdy. The power strip and frame is of good quality
4). 7-10days Quick delivery
Product Information:

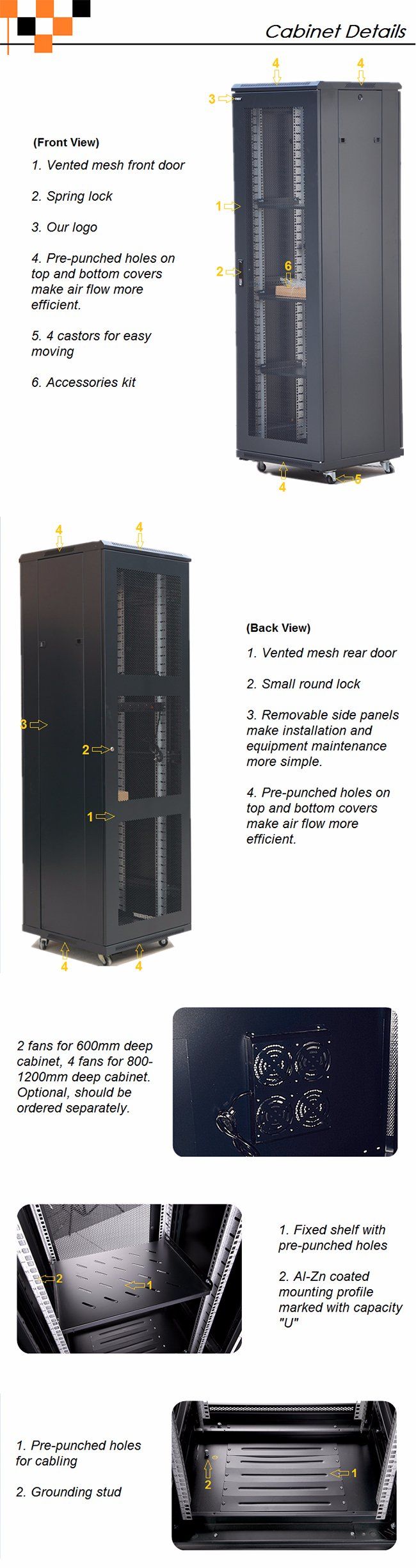

1. Feature
-High-Density holes front door with 180 Over Turing Degree
-High-Density Vented square holes Rear Door (Ventilation Rate Above 75%) with revolving handle lock
-Single back door or double back door (saving space)is available
-Side Panel: Removable Side Panel, easy to Install and Miantain (Lock Optional)
-9-Folded frame structure to built well and sturdy
-Zinc Plated mounting profile with U and figure for easily equipment setting-up
-Adjustable feet and heavy duty castors are supplied
-Cable entry on the top cover and bottom panel with adjustable sizes
-Optional installation of plinth for extra ventilation and ease of cabling
-Efficient and reliable cabinet connection with use of baying kit
-Removable side panels, easy to install and remove, key locks and accessory are available
2. Main Material: SPCC Cold rolled steel
3. Surface Finish: Degreasing, Pickling, Phosphating, Powder coating
4. Degree of Protection: IP20
5. Loading Capacity: 800kg
Packing: 42u server rack Assemble packing: Plastic thin film and bubble bag and export carton Flat packing: Foam inside and outside with carton according to customer requirement.
Rack cabinet for Information Technology and telecommunication appliances use:
Small, Medium and Large Servers
DVR, Security Equipment and Routers
Patch Panels and Switches
Telephone Systems and PABX
Network and Communications Equipment
UPS Equipment
Other Rack Mount Equipment
Who are we?
1. A manufacturer of server rack and network cabinet with 30 years experience
2.53 skilled engineers and more than 400 workers
3.35000 square meters workshop
4. Customizing services, OEM services, etc.
Cabinet Package Contents
| No. | Component name | Quantity | Unit | Material | Remark |
| 1 | Top Cover | 1 | pc | SPCC cold rolled steel T1.0 | |
| 2 | Fan Unit | 1 | pc | --- | With 2/4 fans |
| 3 | Mounting Profile | 4 | pcs | Zinc plated T2.0 | |
| 4 | Mounting angle | 6 | pcs | SPCC T1.2 | 4pcs for lower 30U |
| 5 | Frame | 2 | pcs | SPCC T1.2 | |
| 6 | Shelve/Pallet | 2-4 | pcs | SPCC | Adjustable |
| 7 | Lock | 2 | pcs | --- | Handle lock |
| 8 | Keys | 1 | set | | For All doors |
| 9 | Front Door | 1 | pc | SPCC T1.2 | Mesh door |
| 10 | Rear Door | 1 | pc | SPCC T1.0 | Mesh door |
| 11 | Side Panel | 2 | pcs | SPCC T1.0 | Removable |
| 12 | Bottom Panel | 1 | pc | SPCC T1.0 | |
| 13 | Screw | 20 | pcs | --- | 80pcs |
| 14 | Square Nut | 20 | pcs | SPCC T1.0 | 80pcs |
| 15 | Castor | 4 | pcs | Steel | |
| 16 | PDU | 1 | pc | | |
| 17 | Adjustable leveling feet | 4 | pcs | Steel | |
| 18 | Other components are available according to request |
Specification
Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.

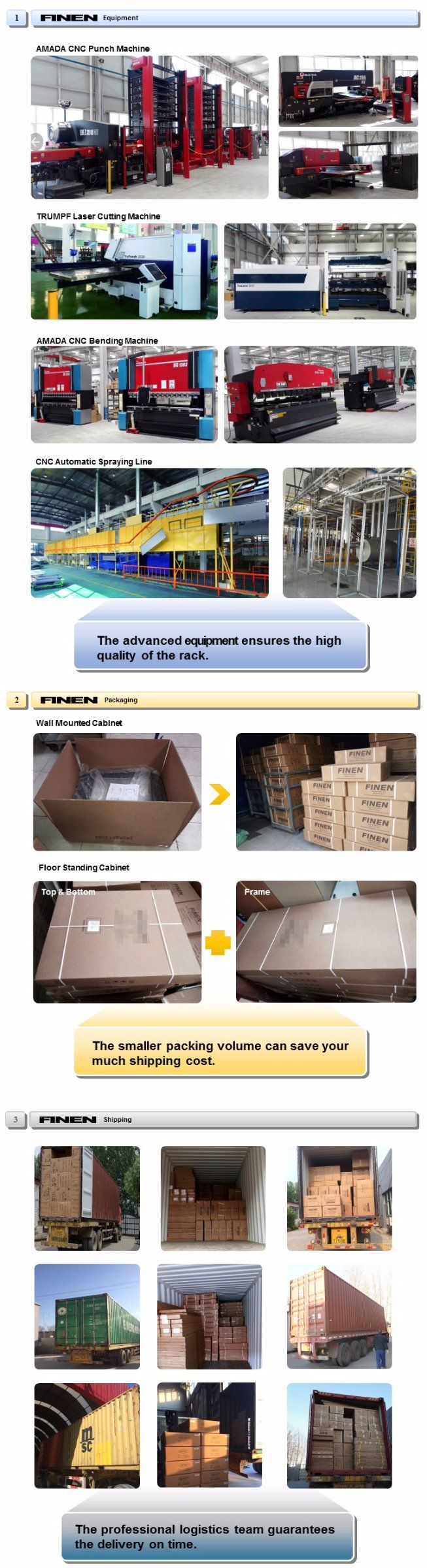

We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.
Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.
Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.
Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.
Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
