Prod Model: |
A3 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Capacity: |
18u,22u,27u,32u,37u,42u |
Loading Capacity: |
800kg |
Color: |
Black, Gray, White |
Width: |
600mm, 800mm |
Depth: |
600mm, 800mm, 1000mm |
Feature: |
Floor Standing |
Surface Finish: |
Powder Coating |
Door: |
Flat Mesh |
Material: |
SPCC Cold Rolled Steel |
Type: |
Network Cabinet |
Fan Number: |
Two |
Usage: |
Network Integration System |
Certification: |
RoHS |
Installation: |
Vertical |
Product Description

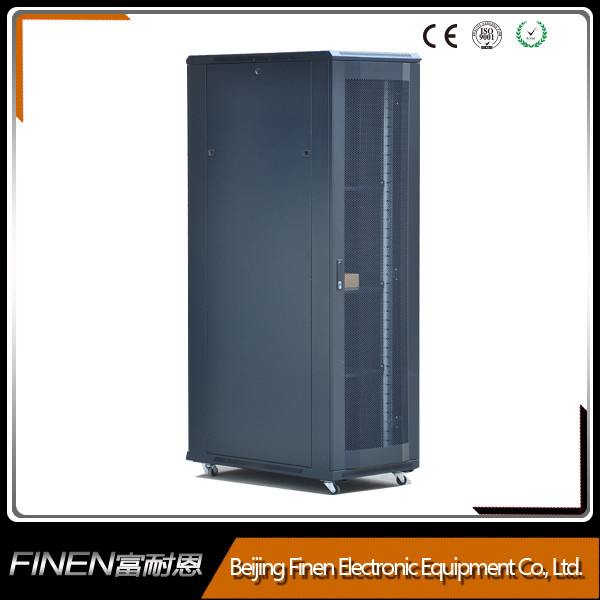

42U server rack cabinet with handle lock -Finen A3 Series(18U,22U,27U,32U,37U,42U,47U)
Product Information
1).Industry Standard : Complies with ANSI/EIA RS-31O-D,IEC297-2,DIN41491:PART1,DIN41494:PART7,GB/T3047.2-92,;ETSI Standard
2).Capacity/Rack Units:18u,22u,27u,32u,37u,42u,47u
3).Loading Capacity:800kgs(1763.7lbs)
4).Materials:SPCC high-quality cold rolled steel
5).Thickness:
Mounting profiles:2.0mm;
Mounting rails:1.5mm;
Other enclosures:1.2mm
6).Cooling Fan:Two/Four optional 120mm AC cooling fans
7).Side panels:Removable with Easy Handy Latches
8).Doors:vented mesh front and rear doors with handle locks
9).Colors:Black-RAL9004;White-RAL7035;Grey-RAL7032
10).Surface Finish:Degreasing,Pickling,Phosphating,powder coating
Features:
1).Zinc Plated mounting profile
2).Meet IP20 Protection Grade
3).Secure,firm and reliable
4).Excellent Air Ventilation Design with AC 120mm Cooling Fans
5).Three Ways, Top, Bottom, and Rear Cabling Tunnels
6).Easy to install and maintain
6).Certification: ISO 9001:2000
7).OEM service availale
Server rack Applications
Rack cabinets for Information Technology and telecommunication appliances use:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment
Who are we?
1).A manufacturer of server rack and network cabinet with 30 years experience
2).53 skilled engineer and more than 400 workers
3).35000 square meters workshop
4).Customizing services, OEM services, etc.
Other Choice:
FINEN-A2 Series
Toughened glass front door and solid rear door with round locks
FINEN-AS Series
Toughend glass front door with air holes on door stripe,vented mesh rear door,handle locks
FINEN-K3 Series
Hexagonal mesh front and rear doors with moon locks
FINEN-WL Series
4u,6u,9u,12u,15u,18u wall mountable rack cabinets
We are always developing the new design according to customer demand
Package contents of FINEN A3 Series
No.
Component name
Quantity
Unit
Material
Remark
1
Top Cover
1
pc
SPCC cold rolled steel T1.2
2
Fan Unit
1
pcs
SPCC cold rolled steel T1.2
With 2/4 fans
3
Mounting Profile
4
pcs
Zinc plated T2.0
4
Mounting rails
6
pcs
SPCC T1.5
4pcs for lower 32U
5
Frame
2
pcs
SPCC T1.2
6
Lock
2
pcs
handle lock
7
Front Door
1
pc
SPCC T1.2
vented mesh
8
Rear Door
1
pc
SPCC T1.2
vented mesh
9
Side Panel
2
pcs
SPCC T1.2
Removable
10
Bottom Panel
1
pcs
SPCC T1.2
11
Screw
20
pcs
---
40pcs for over 32U
12
Square Nut
20
pcs
---
40pcs for over 32U
13
Castor
4
pcs
Steel
14
Adjustable leveling feet
4
pcs
Steel
15
Other components are available according to request
Specification of FINEN A3 Series
Model No.
Capacity(U)
Width(mm)
Depth(mm)
A36647
47U
600
600
A36847
600
800
A36947
600
900
A36047
600
100
A36147
600
1100
A36247
600
1200
A36642
42U
600
600
A36842
600
800
A36942
600
900
A36042
600
1000
A36142
600
1100
A36242
600
1200
A36637
37U
600
600
A36837
600
800
A36937
600
900
A36037
600
1000
A36137
600
1100
A36237
600
1200
A36632
32U
600
600
A36832
600
800
A36932
600
900
A36032
600
1000
A36132
600
1100
A36232
600
1200
A36627
27U
600
600
A36827
600
800
A36927
600
900
A36027
600
1000
A36622
22U
600
600
A36822
600
800
A36922
600
900
A36022
600
1000
A36618
18U
600
600
A36818
600
800
A36918
600
900
A36018
600
1000
