| Price: | US $ 9800set/sets |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set/sets |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | FCT-1618C&W-4S |
|---|---|
| Markets: | North America,Southeast Asia,Mid East |
| Type: | Engraving Router |
| Spindle Layout: | Horizontal |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Customized: | Customized |
| Condition: | New |
| Color: | Iron Grey |
| Spindle Number: | Four Spindles |
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
6.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCA.
Model | FCT-1618C&W-4S | ||
Rotary diameter | 230 | ||
Rotary length | 1300mm | ||
Flat working size | 1600×1800×200mm | ||
Spindle power | Water cooling 1500W×4 | ||
Spindle rotate | 6000~24000RPM | ||
Tool diameter | 3.175,4,6mm | ||
Machine structure | Industry square tube structure | ||
Transmission | XY ball screw, Y high accuracy gear rack | ||
XYZ rails | PMI square rails | ||
Dust-proof system | XYZ high quality dust cover | ||
Mechanical accuracy | less than 0.03/300mm | ||
Engraveing speed | 8000mm/min | ||
Data transmission | by pc connection directly or USB | ||
Support format | G code or HPGL | ||
Working voltage | AV220V/380V 50Hz | ||
Net weight | 1000kg | ||

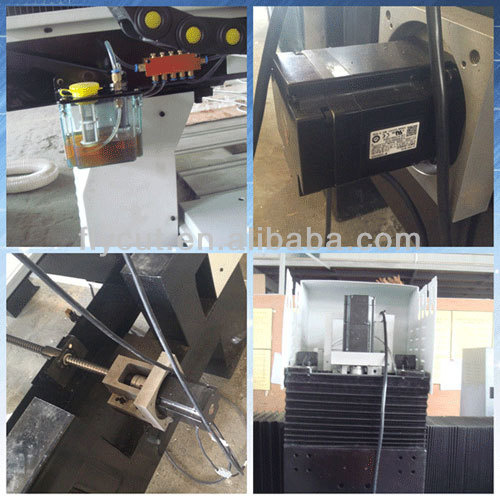

Machine parts show:
Finished sample show:

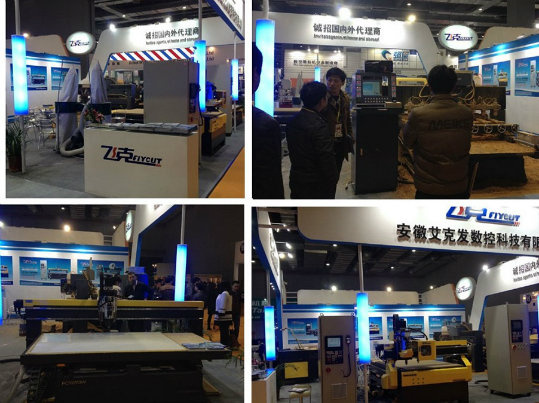

Shanghai exhibition trade show:
FAQS:
1.How about the payment?
T/T in advance. We can accept 40% deposit before mass production , and the balance paid to us before delievery date.
2.How long is thedelievery time?
For standard machines, it would be 7 days; For non-standard machines and customized machines, according to clients specific requirements, it would be 14~25 days.
3.How about shipment details?
On the basis of FOB or CIF price, we will arrange shipment for you.Others will be arranged by yourself.
4.What about the packing?
Water-proof plastic film package with foam protection in each corner.
If you are not sure which machine you should choose,kindly afford us the following information.Suitable machine will be recommended to you.
1)What materials do you want to engrave or cut?2)What's the max. size of the materials (Length*Width*Thickness)?
