| Prod Model: |
FCT-2515C&W-8S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Layout: |
Vertical |
| Spindle Number: |
8 Spindles |
| Motor And Driver: |
Panasonic Servo Motor and Driver |
| Control System: |
Original Nc Studio 74A Card |
| Xyz Rails: |
PMI Square Rails |
Product Description

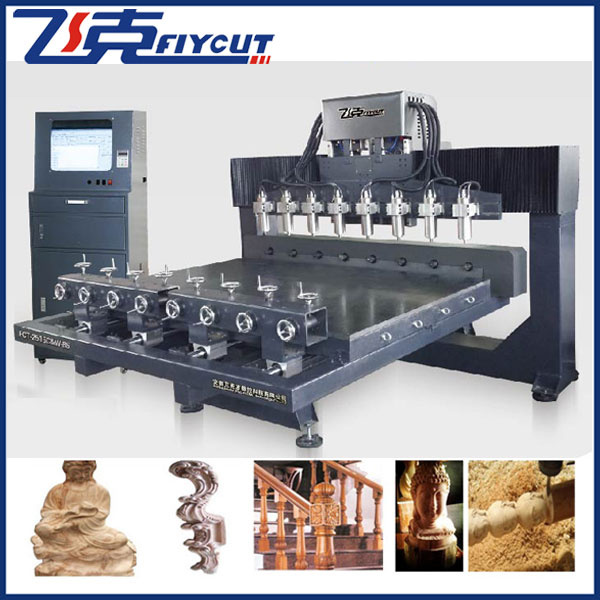

CNC Flat-Rotary Multi-heads Engraver
Features:
1. The lathe is founded by industrial pipe weilding, box-type structure to ensure the high stability.
2. The special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
3. The major machine body makes the stability and no shacking in high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5. The professional mechnical design, scientific structure and generous appearance.
6. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
High quality driver motors, spindle motors, cables, inverters, etc.
7. High Accuracy, High Torsion and Professional Gear Box without any gaps, ensuure high engraving accuracy.
8. Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.
Special Configuration:
Customized model machine, imported spindle, servo motors. Oil lubrication system, 6- 12 spindle heads, etc.
Technical Parameters:
| Model | FCT-2515C&W-8S | FCT-2018R-8S |
| Rotary diameter | 250 | 250 |
| Rotary length | 1500mm | 1000mm |
| Flat working size | 2150×1500×200mm | 2150×1500×200mm |
| Spindle power | Water cooling 2200W×8 | Water cooling 2200W×8 |
| Spindle rotate | 6000--2400rpm |
| Motor driver | Stepper motor driver (Chinese servo motor and Japan servo motor is optional) |
| Tool diameter | 3.175, 6,12.7 |
| Machine structure | Industry square tube structure,Table moving | Industry square tube structure,Gantry moving |
| Transmission | XYZ TBI ball screw | XYZ TBI ball screw,Y double screw,
double driver |
| XYZ rails | PMI square rails |
| Dust-proof system | XYZ high quality dust cover |
| Mechanical accuracy | 0.03/300mm |
| Engraveing speed | 10000mm/min |
| Data transmission | PC-connecation directly |
| Support format | G code or HPGL |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 3500kg | 2500kg |
Our services:
1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our factory.
4.We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.We will solve your problems immediately by E-mail, fax, Skype ,wechat,whatsaap,telephone.
6.Machine has been adjusted before delivery.
FAQ
1. how should I pay for my order ? what is the procession of this purchase ?
we accept TT by bank. you can do 30% prepayment at first, then we will start to make production.
when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment.I will send the machine to you.
2. how about your service after sales ? can your engineer speak fluent english ?
we offer the service from you got the machine,
including how to install the machine,
how to use machine. how to let machine work. and so on.
usually we will teach you how to do by email or by skype,wechat,whatsaap .
our engineer has many years of experience for cnc machine service .
he can speak very good english , so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales.
we know how to fix the problem in each parts easliy.
so welcome to visit to our factory
4. How long is the delivery time?
For standard machines, it would be 7-15 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
