| Prod Model: |
FCT-1618C&W-4S |
| Markets: |
North America,Southeast Asia,Mid East |
| Working Size: |
1600*1800 |
| Rotary Diameter: |
230mm |
| Rotary Length: |
1300mm |
| Spindle Number: |
Four Spindles |
| Spindle Type: |
Water Cooling |
| Spindle Power: |
1.5kw*4 |
| Motor: |
Stepper |
| Contro System: |
4 Axis Ncstudio |
| Transmission: |
Xy Ball Screw, Y High Accuracy Gear Rack |
| Guide Rails: |
Taiwan PMI Square Rails |

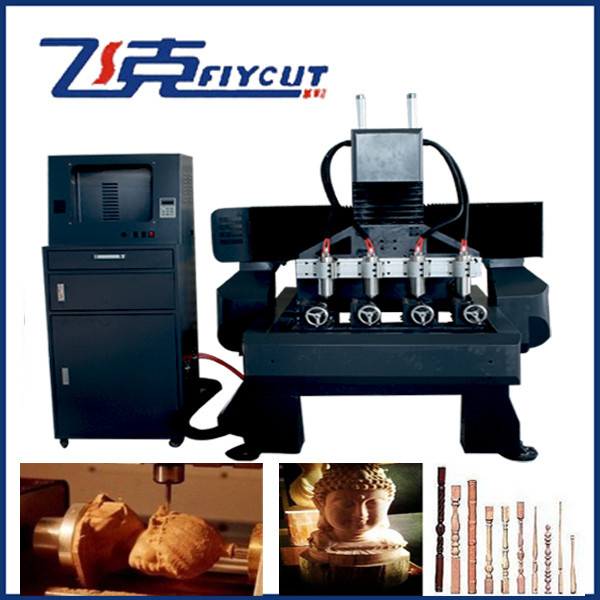

Product Description
Machine features:
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
6.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCA.
Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.
Special Configuration:
Customized model machine, imported spindle, servo motors .oil lubrication system, 6-12 spindle heads, etc.
Tips to choose suitable machine:
1)What materials do you want to engrave or cut?
2)What's the max. size of the materials (Length*Width*Thickness)?
Model |
FCT-1618C&W-4S |
Rotary diameter |
230mm |
Rotary length |
1300mm |
Flat working size |
1600×1800×200mm |
Spindle power |
Water cooling 1500W×4 |
Spindle rotate |
6000~24000RPM |
Tool diameter |
3.175,4,6mm |
Machine structure |
Industry square tube structure |
Transmission |
XY ball screw, Y high accuracy gear rack |
XYZ rails |
PMI square rails |
Dust-proof system |
XYZ high quality dust cover |
Mechanical accuracy |
less than 0.03/300mm |
Engraveing speed |
8000mm/min |
Data transmission |
by pc connection directly or USB |
Support format |
G code or HPGL |
Working voltage |
AV220V/380V 50Hz |
Net weight |
1000kg |
