| Prod Model: |
FCT-2515W-8S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
2500*1500mm |
| Rotary Length: |
1500mm |
| Rotary Diameter: |
250 |
| Reducer: |
One Reducer for One Motor |
| Spindle Power: |
Water Cooling 2200W×8 |
| Spindle Rotate: |
6000--2400rpm |
| Motor Driver: |
France Schneider Servo |
| Tool Diameter: |
3.175, 4, 6mm |
| Machine Structure: |
Industry Square Tube Structure |
| Transmission: |
Xz Ball Screw, Y High Accuracy Gear Rack |
| Spindle Layout: |
Vertical |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
| Spindle Number: |
8 Spindles |
| Color: |
User-Defined |

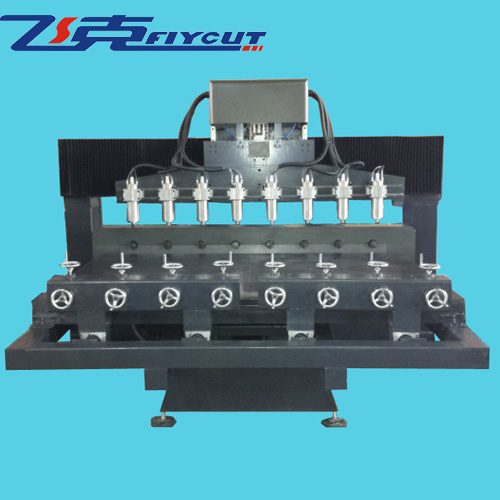

Product Description
Features:
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
6.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCA.
Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.
Technical Parameters:
| Model | FCT-2015C&W-8S |
| Rotary diameter | 250 |
| Rotary length | 1500mm |
| Reducer | one reducer for one motor |
| Spindle power | Water cooling 2200W×8 |
| Spindle rotate | 6000--2400rpm |
| Motor driver | France schneider servo |
| Tool diameter | 3.175,4,6mm |
| Machine structure | Industry square tube structure |
| Transmission | XZ ball screw, Y high accuracy gear rack |
| XYZ rails | PMI square rails |
| Dust-proof system | XYZ high quality dust cover |
| Mechanical accuracy | <0.03/300mm |
| Engraveing speed | 8000mm/min |
| Data transmission | PC-connection directly |
| Support format | G code or HPGL |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 2200kg |
Good service:
1.One year warranty for the whole machine and maintenance for lifetime.
2.Under normal usage, 1 year for the whole machine,lifelong technical support.
3.Free technical support for lifetime, including training at factory, door to door service, such as training/ installment/ adjustment / maintenance and so on.
4.Door to door service, you just need to bear round-trip tickets and accommodation.
5.Free installation,testing,training before shipping .
6.Advice for the best solutions for your requirements.
7.High precision with reasonable price
8.Meet CE, ISO9001 standards.
About us:
Anhui Aikefa (Flycut) CNC Technology Co.,Ltd is a high-tech enterprise which researches,develops,sells and offers services of numerical control and photoelectric products.The company has independent license for export and import,bears"innovative technology and create value for users" as its managing idea to design kinds of CNC products that can easily operated.
Our teamwork suppliers include UK GSI,Germany Rofin,France Schneider,Italy HSD,Italy Colombo,Taiwan PMI,Taiwan TBI,Taiwan Syntec, Japan Yaskawa,Japan Panasonic, etc.
Every year,we create $ 5 million sales result.The products are widely sold to North America, Eastern Europe, Africa, Mid East, Eastern Asia countries.
Tips to choose suitable machine:
If you are not sure which machine you should choose,kindly afford the following information.
Suitable machine will be recommended to you.
1) What materials do you want to engrave or cut?
2) What's the max. size of the materials (Length*Width*Thickness)?
