| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
245*60 Mm |
| Shape: |
Bulb |
| Material: |
Imported Clay and Heating Wire |
| Volatege: |
110.120.220.230.380 and etc. |
| Power: |
150-1000 W |
| Weight: |
330 G |
| Assistant For Option: |
Thermocouple & Reflector |
| Thermocuple Type: |
K |
| Wave Range: |
2-10 Um |
| Out Leading Line: |
100mm |
| Application: |
Heater |
| Structure Material: |
Ceramic |
| Heat Transfer Surface: |
Plate Heat Exchanger |
| Principle: |
Far Infrared Heating |
Product Description

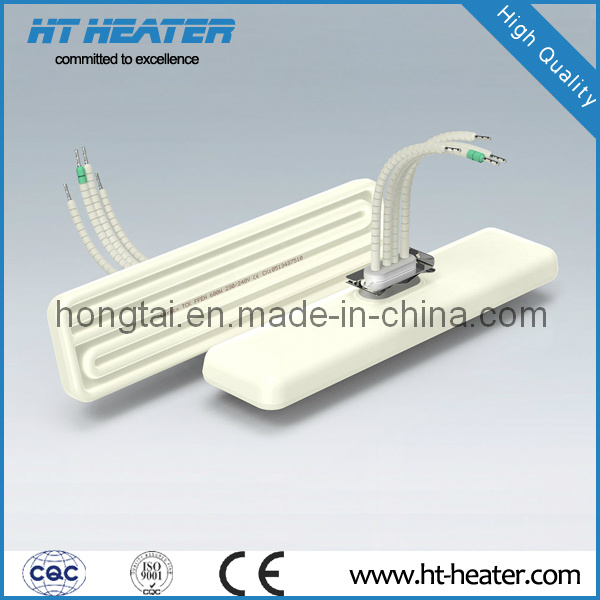

245*60 Hollow Type Ceramic Infrared Heater
Features and advantages of far Infrared Ceramic Heater
1. Unique ceramic heater - selected imported ceramics with high thermal durability, mechanical strength and good electrical insulation. Imported High quality Nichrome wire is used.
2. High emissivity
3. Quick thermal response
4. Easy control to radiate favourable wave lengths for different target materials.
5.1-2 times more speedy than ordinary heaters.
6. Uniform temperature distribution.
7. Electric power may be saved up to 30%, production yield may be raised 30% up.
8. Oven volume reduceable to one half or even less. Maintenance or replacement
Of existing old fashioned heat pipes in ovens is easy.
9. Free from dust contamination. No fire flame appears during heating process.
10. High safety.
|
Size(mm) |
Type |
Power |
|
60*60 |
Curved/flat/Hollow |
Available in 125w and 250w |
|
122*60/120*60 |
Curved/flat/Hollow |
Available from 125w to 500w |
|
122*122/120*120 |
Curved/flat/Hollow |
Available from 150w to 750w |
|
245*60 |
Curved/flat/Hollow |
Available from 150W to 1000w |
|
245*80 |
Curved/flat/Hollow |
Available from 150w to 1500W |
Founded in 2008, Yancheng Hongtai Alloy Electric Apparatus Co., Ltd is a professional Heating element manufacturer. We are Branch of Yancheng Songtai Electric Heating Element Factory(founded in 1990).
With product development, machine improved and technological innovation, we have improved OEM capacity and also have our own brand Hongtai. We have focused on management and quality control according to ISO 9001 standard. We produce top quality heaters and offer efficient service to meet customer's requirements.
We have 10 engineer with more than 10 years of experience in heating element filed to design and develop new heating elements for clients and provide professional suggestion for clients.
We introduce professional machines from Taiwan, Japan and Germany to support our production, including automatic powder filling machine, polishing machine, shrink tube machine, punching machine, automatic reeling machine and so on.
Our main products are Rod heaters, band heater, infrared heaters, temperature sensors and various heating alloys. Our products have got CE, RoHS certification.
Our factory complies with China's Labor Law to treat our workers - no force over-time working and working on legal holiday and no child labor. All workers have 2-day holiday on weekends. If there is any overtime working for urgent shipment, we will pay salary to them based on China's Labor Law.
We welcome you to cooperate with us based on win-win situations. Please feel free to contact us for further information
