Name: 22u Network Server Rack Server Storage Cabinet
Brand: thisfurniture.com
SKU: 681416941
Availability: InStock
Rating: 4.8 (127 reviews)

Price:	US $ 20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	300/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HJA-6622A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	600 X 600 X 1200 mm
Static Load:	500 Kgs
Suitable Standard:	IEC197-2, Ein4194
Type:	Server Cabinet
Usage:	Network Integration System
Installation:	Vertical
Fan Number:	Two
Certification:	ISO
Condition:	New
Capacity:	22u

Product Description

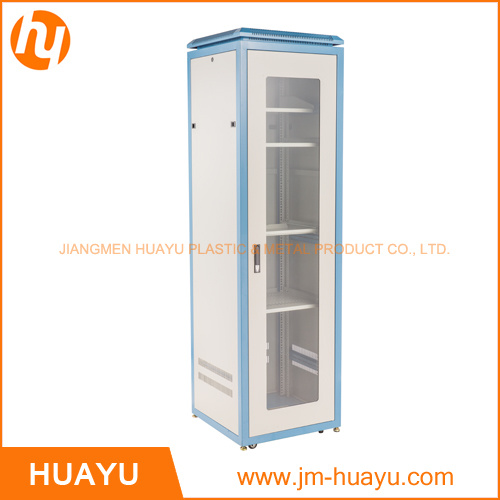

22u Network Server Rack Server Storage Cabinet

Product pictures:

Feature:

Exquisite design with precise craftsmanship;

Welded steel frame for front and back part, which can be flat packing, easy to transfer;

Arc shapedented vented front door with hexagonal holes,can turn over 180 turning degree:

Vented rear door with hexagonal holes;

Removable side panel wit latch, easy to install(optional lock);

Adjustable feet and castors are available simultaneously:

Cable entry on the top, adjustable cable entrance at the bottom with panel:

Advanced handle locks for front door, optional other lock;

S-shaped mounting profile, free to move forward and back;

Efficient baying kit of cabinet, earthing kit:

Optional plinth to fix cabinet on floor; under base cable entry:

Various optional Accessories for common using:

Unassembled packing, about 2/5 of original volume, save container space

Standard:

Comply with IEC197-2, EIN4194 Standard;

Loading Capacity:

Static Load:500kg

PRODUCT DETAILS:

Product name :	Network cabinet
(1) Model No.:	HJA-6622A
(2) Size :	6006001200MM
(3) Capacity :	22 U
(4) Brand name :	Huayu
(5) Cabinet standard :	19'' inch inner installation
(6) Material :	High quality SPCC cold rolled steel T:1.0-1.2mm
(7) Place of origin :	Guangdong China (mainland)
(8) Color :	Black, White or Gray (Special Color on Request)
(9) Packing :	Flat ,packing or assembled packing
(10) Loading capacity:	500KG
(11) Thickness :	1.0-1.5mm
(12) Installation :	19'' inch inner installation
(13) Surface finish :	Degreasing,pickling,phoshating,phoshating, powder coating
(14) Delivery details:	6 working days
(15) Packing:	(a) Film around the spareparts
	(b) EPE corner protectors in the four corners of carton
	(c) High quality cartons with strip .

Jiangmen Huayu Plastic & Metal Product Co., Ltd. is located in No. 39 Hengtansha Road, Chaolian, Pengjiang District, Jiangmen city, with convenient transportation access. It's closed to Jiangmen export cargo terminal and a highway to Guangzhou, Shenzhen and Hong Kong. Rejection molding products is our first development project. Our company manage rubber, plastic and packing film more than 13 years. In 2012, adhering to the honest and steady of last generation, we set up the metal stamping department and metal crafts department. With the development of the market, our company also established the metal plate department in 2014. Since its foundation, our staffs are more than 250, the size of company is going from strength to strength, strong technical force, advanced facilities, continuously developing towards automation. Which is a diversified company. We have the advanced administration molds, independent research and development ability. Products are fashionable, great varieties, steady quality, beautiful appearance.

Main products of our company: Motorcycle, car and household articles injection molding accessories, PE bag. The metal stamping products are washing machine accessories, household appliances and articles accessories. The metal crafts includes removable shelf, kitchen and bathroom shelf. Then metal plate includes washing machine accessories, crate and hardware case shell and so on.

We have 40 injection molding machines(120T to1300T), 10 punching machines, 4 automatic continuous punching machine, 6 hydraulic press over 315T, 2 film blowing machine. About the metal plate, we have CNC punching machine, laser cutting machine, CNC bending machine and CNC shearing machines. For the metal crafts, we have pipe cutters, wire cutting machine, pipe pit machine, burning welder and other type machines.

Since its foundation, the company keeps living up to the belief of honest, reputation first, service upmost. We have built the long term cooperative relationships with our customer base on the good quality, fast and accurate delivery, reasonable price. The products are sold around the world. And the company undertake long-term outward processing, product development, mold making, OEM and so on.
