| Prod Model: |
JH-SL011 |
| Hinge: |
304 Stainless Steel Hinge |
| Drawer Slide: |
Dtc 3-Joints Drawer Slide Without Noise |
| Reagent Shelf: |
Steel and Tempered Glass |
| Worktop: |
19mm Epoxy Resin/16mm Lab Grade Phenolic Resin |
| Accessories: |
PP Sink, PP Pegboard |
| Feature: |
It's with Sound Asorbing Material Inside of Door |
| Weight Capacity: |
More Than 100kg |
| Handle: |
304 Stainess Steel U-Type Handle |
| Adjustable Feet: |
with Adjustable Feet |
| Faucet Type: |
Triple-Outlet Cold Water Faucet |
| Material: |
Steel |
| Color: |
White |
Product Description

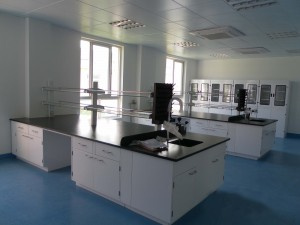

2017 new design laboratory furniture.
Type: JH-SL011
Feature: 1. European model with better appearance.
2. Excellent weight capacity with more than 100KG.
3. High quality accessories with famous brand.
4. Nice appearance with excellent process and finish, it meets with SEFA standard.
5. The quality is higher than our normal type. It's with high quality accessories, thicker material,
excellent processing on production, better coating, better weight capacity etc.
The size and colour can be custom-made requested by customers.
A. Worktop: Regular configuration: 19mm epoxy resin worktop,16mm lab grade phenolic resin worktop,20mm ceramic worktop or any other worktop specified by customers are available for your selection. There's water-proof partition with same material as worktop beside the sink.
B.Door and cabinet body:
1.2mm cold rolled steel plate coated with AkzoNobel epoxy resin powder(famous brand) after welding, polishing, acid cleaning, phosphating etc.It includes 13 kinds of chemical treatment processes. Surface is very smooth after careful and repeated polishing. The powder quality is better than common type, the coating surface is with excellent adhesive force, excellent features on chemical resistance.The door is with sound absorbing material inside to make sound minimum when the door is opened or closed. Every cabinet is equipped with 4 adjustable feet in case the floor is not flat enough.
The weight capacity can reach 90KG in horizontally when all doors are open fully.
C. Handle: Stainless steel 128mm U-type handle, long handle shaped once made of steel or long aluminum alloy handle.
D. Movable back panel: Movable and free dissembling structure which is convenient for checking water, electricity and gas pipe etc.
E. Hinge: 304 stainless steel hinge with high weight capacity. The hinge can be adjusted on different direction. The max angle can reach 170 degree.
F. Drawer sliding rail: Specialized made heavy duty drawer slide without noise. The weight capacity can reach 68KG on horizontally when the drawer slides are pulled fully. it can ensure the full opening for the drawer with good bearing capacity and without deforming.
G. Shelf: The shelf is made of 100x40mm steel frame and steel hanging pieces. The layer is made of 8mm toughened glass which is suitable to put all kinds of chemicals on it. Also custom-made reagent shelves with more designs are for your selection.
L. Accessories: TOFF brand. Sink is made of high quality PP material with size 550x450x310mm or 440x340x300mm. Epoxy sink is also available. To keep the sink stable, there's steel tubes to support it under the sink.

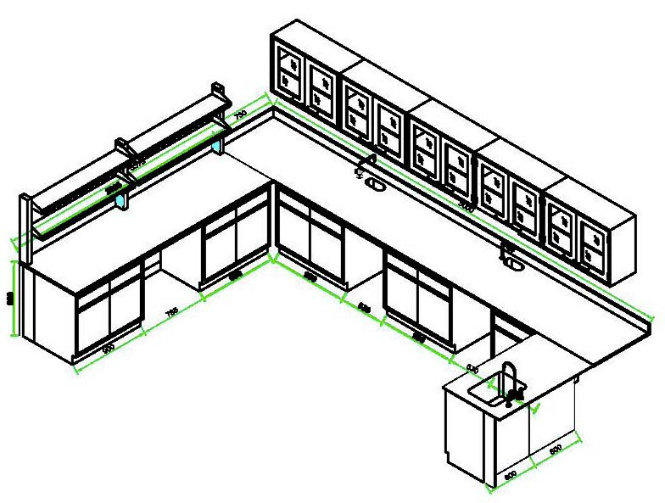

Triple outlet water faucet etcSample CAD drawing:
| Attribute | Solid lab phenolic resin worktop | Epoxy resin worktop | Ceramic worktop |
| Ingredient | Dipping phenolic resin into special multi-layer kraft paper,it's hot solid formed under high temperature and pressure | Quartz sand and epoxy mixed with special bond. | Combined clay,kaolin and feldspar mixed with many special material. |
| Corrosive resistance | It's resistant for many kinds of acid,alkali,solvent and reagent etc. | It's resistant for many kinds of acid,alkali,solvent and reagent etc. | Excellent |
| Heat resistance | Normal: 135 celsius. It couldn't touch flame directly. | 600 Celsius heat resistance | 1000 Celsius heat resistance |
| Colour | Black,gray,dark green | Black,gray,white | Black,gray,white,green |
| Worktop thickness | 12.7mm,16mm,19mm | 16mm,19mm,25mm | 20mm |
| Water resistance | Water absorption:0.6% | Water absorption:0.008% | Excellent |
| Physics feature | Good | Good | Excellent |
Jiangsu jiahong laboratory equipment co, Ltd. Is a professional manufacturer for fume hood, lab furniture and lab fitting. Our company is located in suzhou city, jiangsu province which is very near with Shanghai and the traffic is very convenient. We take on the designing, production and installation for lab system based on customer's requirement.
Our products include steel fume hood, PP fume hood, steel lab furniture, wood lab furniture, wood lab furniture with frame, various lab cabinets, epoxy resin worktop, lab accessories etc.
We have advanced CNC machine, very big production base, experienced workers and technicans. It ensures the quality and production volume of our products. We have exported to many countries including Greece, USA, Argentina, and some countries in Middle East and Africa, including universities, schools, pharmacy factories, hospitals etc. Some of our products have been got SGS and CE product certification.
Our company has obvious cost advantages compared with many producers. Our company has own dependent automatic epoxy resin coating line which is very advanced in China. Seldom manufacturer in our field has own coating line in China. It reduces our production cost, and ensures the coating quality and delivery time.
Our company declare solemnly: We will furnish most professional information with the most honest heart if you are familiar with our field or not. Seeking the long cooperation with customers is our basic object. Pls tell us if you have any requirement for product quality or any suggestion for our products, we will furnish the best service for your satisfaction.
