| Prod Model: |
FCT-7090C&W-4S |
| Rotary Diameter: |
230mm |
| Rotary Length: |
800mm |
| Reducer: |
One Reducer for One Motor |
| Spindle Power: |
Water Cooling 1500W×4 |
| Spindle Rotate: |
6000--24000rpm |
| Motor Driver: |
Hybrid Servo |
| Tool Diameter: |
3.175, 4, 6mm |
| Machine Structure: |
Industry Square Tube Structure |
| Transmission: |
Xy Ball Screw, Yhigh Accuracy Gear Rack |
| Xyz Rails: |
PMI Square Rails |
| Spindle Layout: |
Vertical |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
| Spindle Number: |
4 Spindles |
Product Description
Features:
1. The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability
2. The Special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
3. The major machine body makes the stability and no shacking in high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide ,ensure the high accuracy .
5. The professional mechanical design, scientific structure and generous appearance.
6. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
7. High quality driver motors, spindle motors, cables, inverters, etc.
8. High Accuracy, High Torsion and Professional Gear Box without any gaps, ensure high engraving accuracy.
9. Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Applications:

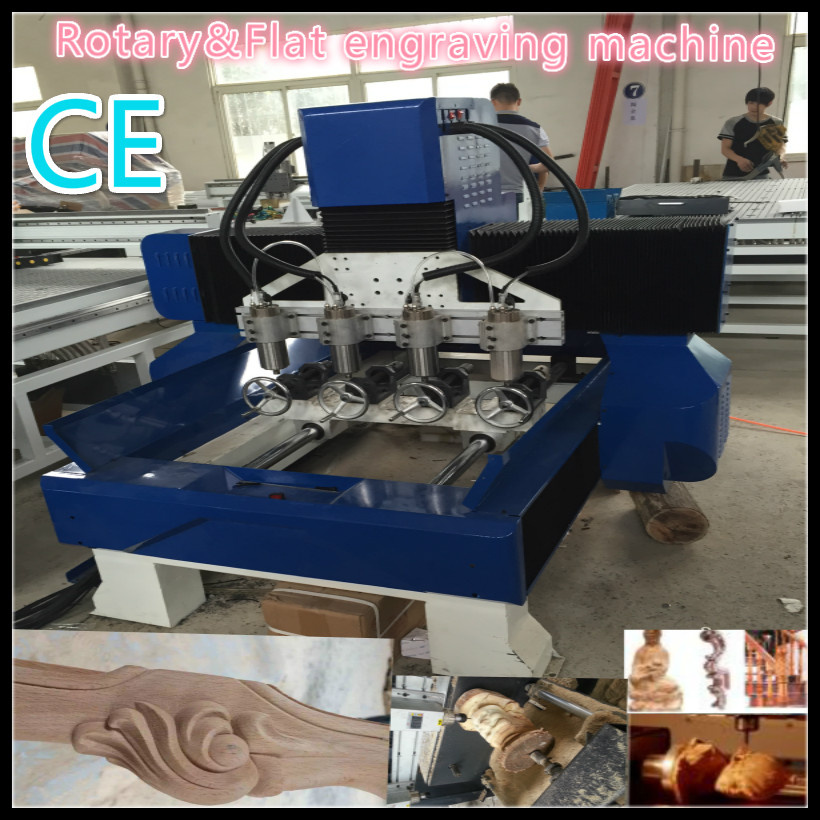

Rotary engraving: making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving:Antique reproduction furniture , Solid wood carving, arts and crafts carving, ornamental engraving, furniture- processing , instrument making ,etc.
Special Configurations: Customized model machine, imported spindles, servo motors, oil lubrication system, 6--12 spindle heads, etc.
Technical Parameters:
| Model | FCT-7090C&W-4S |
| Rotary diameter | 230 |
| Rotary length | 800mm |
| Reducer | one reducer for one motor |
| Spindle power | Water cooling 1500W×4 |
| Spindle rotate | 6000--24000rpm |
| Motor driver | hybrid servo |
| Tool diameter | 3.175,4,6mm |
| Machine structure | Industry square tube structure |
| Transmission | XY ball screw, Yhigh accuracy gear rack |
| XYZ rails | PMI square rails |
| Dust-proof system | XYZ high quality dust cover |
| Mechanical accuracy | 0.03/300mm |
| Engraveing speed | 8000mm/min |
| Data transmission | PC-connection directly |
| Support format | G code or HPGL |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 600kg |
Good service:
1.One year warranty for the whole machine and maintenance for lifetime.
2.Under normal usage, 1 year for the whole machine,lifelong technical support.
3.Free technical support for lifetime, including training at factory, door to door service, such as training/ installment/ adjustment / maintenance and so on.
4.Door to door service, you just need to bear round-trip tickets and accommodation.
5.Free installation,testing,training before shipping .
6.Advice for the best solutions for your requirements.
7.High precision with reasonable price
8.Meet CE, ISO9001 standards.
About us:
Anhui Aikefa (Flycut) CNC Technology Co.,Ltd is a high-tech enterprise which researches,develops,sells and offers services of numerical control and photoelectric products.The company has independent license for export and import,bears"innovative technology and create value for users" as its managing idea to design kinds of CNC products that can easily operated.
Our teamwork suppliers include UK GSI,Germany Rofin,France Schneider,Italy HSD,Italy Colombo,Taiwan PMI,Taiwan TBI,Taiwan Syntec, Japan Yaskawa,Japan Panasonic, etc.
Every year,we create $ 5 million sales result.The products are widely sold to North America, Eastern Europe, Africa, Mid East, Eastern Asia countries.
Tips to choose suitable machine:
If you are not sure which machine you should choose,kindly afford the following information.
Suitable machine will be recommended to you.
1) What materials do you want to engrave or cut?
2) What's the max. size of the materials (Length*Width*Thickness)?
