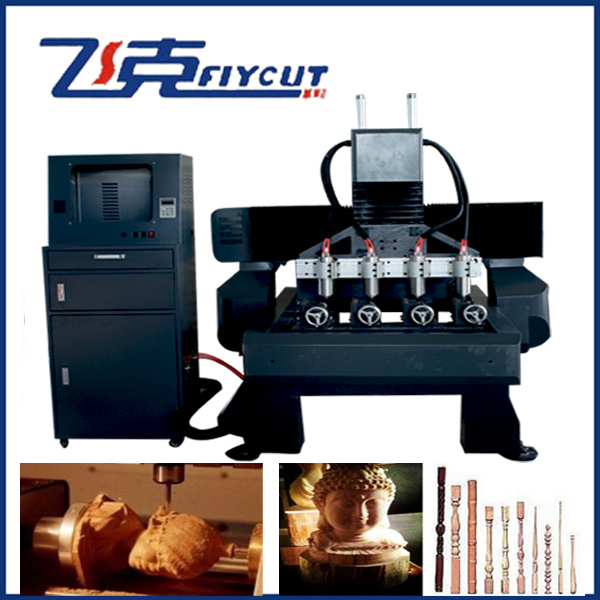

| Prod Model: |
FCT-1625C&W-4S |
| Markets: |
North America,Southeast Asia,Mid East |
| Flat Working Size: |
1600X2500 |
| Rotary Length: |
2000mm |
| Rotart Diameter: |
230mm |
| Spindle Type: |
Water Cooling Spindle |
| Spindle Power: |
Water Cooling 2200wx4 |
| Engraving Speed: |
8000mm/Min |
| Control System: |
4 Axis Ncstudio |
| Motor: |
Stepper |
| Transmission: |
Taiwan Tbi Ball Screw |
| Guide Rail: |
Taiwan PMI Linear Square Rails |
| Spindle Layout: |
Horizontal |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
| Spindle Number: |
Four Spindles |
Product Description
Features:
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.
Special Configuration:
Customized model machine, imported spindle, servo motors .oil lubrication system, 6-12 spindle heads, etc.
Technical Parameters:
Model |
FCT-2515C&W-8S |
Rotary diameter |
250mm |
Rotary length |
1500mm |
Flat working size |
2150×1500×200mm |
Spindle power |
Water cooling 2200W×8 |
Spindle rotate |
6000~24000RPM |
Tool diameter |
3.175,6,12.7mm |
Machine structure |
Industry square tube structure |
Transmission |
XYZ ALL WITH TBI ball screw |
XYZ rails |
PMI square rails |
Dust-proof system |
XYZ high quality dust cover |
Mechanical accuracy |
less than 0.03/300mm |
Engraveing speed |
10000mm/min |
Data transmission |
by pc connection directly or USB |
Support format |
G code or HPGL |
Working voltage |
AV220V/380V 50Hz |
Net weight |
3500kg |
Any question,kindly contact us :
Cindy(overseas department salesman)
Cell phone:+86 15715603006
Anhui Aikefa (Flycut) CNC Technology Co., Ltd. is a high-tech enterprise which researches, develops, sells and services of numerical control and photoelectric products. The company has independent license for export and import, bears "Innovate technology and create values for users" as its managing idea to design kinds of practical numerical and photoelectric products that can be easily operated.
Teamwork Suppliers: France Schneider, American GSI, Germany Rofin, Italy HSD, Italy Colombo, Taiwan PMI, Taiwan TBI, Taiwan Syntec, Japan Panasonic, Japan Yaskawa, etc.
Service concept: Innovation, technology, services
Innovation: Scientific and technological innovation as the basis for enterprise development, not only in technical innovation in products, markets, management, structure and concepts to innovation.
Technology: Continuously improve staff skills, enhance their technical content; Innovative business model to meet market and customer requirements.
Service: Professional engineers to provide you with software and training machines, regular visits to track your usage. QQ, Skype, WeChat, telephone, 24-hour online open.
