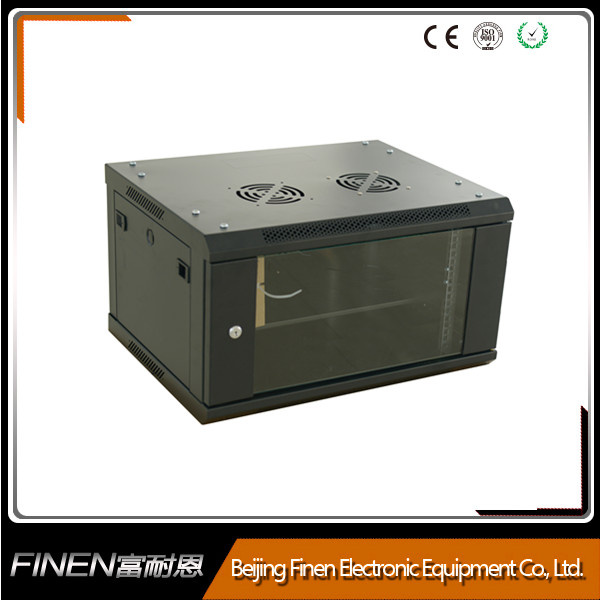

19'' Wall Mounted Network Cabinet Server Cabinet

Name: 19'' Wall Mounted Network Cabinet Server Cabinet
Brand: thisfurniture.com
SKU: 690147182
Availability: InStock
Rating: 4.9 (104 reviews)

Price:	US $ 20-80/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	15/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FINEN WL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Loading Capacity:	80kgs
Width:	550mm/600mm
Depth:	450mm/600mm
Front Door:	Toughened Glass Door
Side Panel:	Removable
Color:	Black,Gray,White
Surface Finish:	Degreasing/Pickling/Phosphating/Power Coating
Degree Of Protection:	IP20
Material:	SPCC Cold Rolled Steel
Cabinet Standard:	19''
Type:	Network Cabinet
Usage:	Wireless Monitoring System
Installation:	Wall-Mounted Cabinet
Certification:	IEC
Condition:	New
Fan Number:	Optional
Capacity:	18u-47u

Product Description

FINEN wall mounted rack mount cabinet

Production Information

Basic Information
1) Standard	Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard
2) Material	SPCC high-quality cold rolled steel
3) Thickness	Mounting profile 2.0mm Others 1.2mm
4) Surface Finish	Degreasing, Pickling, Phosphating, Powder coating
5) Protection Degree	IP20
6) Loading Capacity	60kgs(=132lbs)
7) Color	Optional: Black(RAL9004) White(RAL7035) Grey(RAL7032)
Features
1) Zinc Plated mounting profile 2) Secure,firm and reliable 3) Easy to maintain equipment 4) Two Packing Ways: Assembly packing to save labour cost, ready to resell or use Disassembly packing to save space and transport cost, easy to assemble 5) Various optional accessories: PDU, fan, shelf, bracket, cable tray, etc.. 6) Certification: ISO 9001:2000 7) OEM/ODM service available

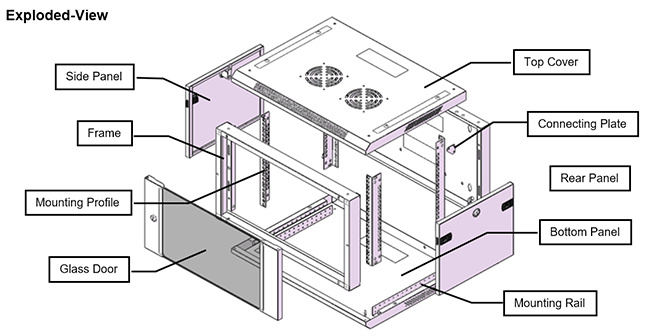

Cabinet Structure

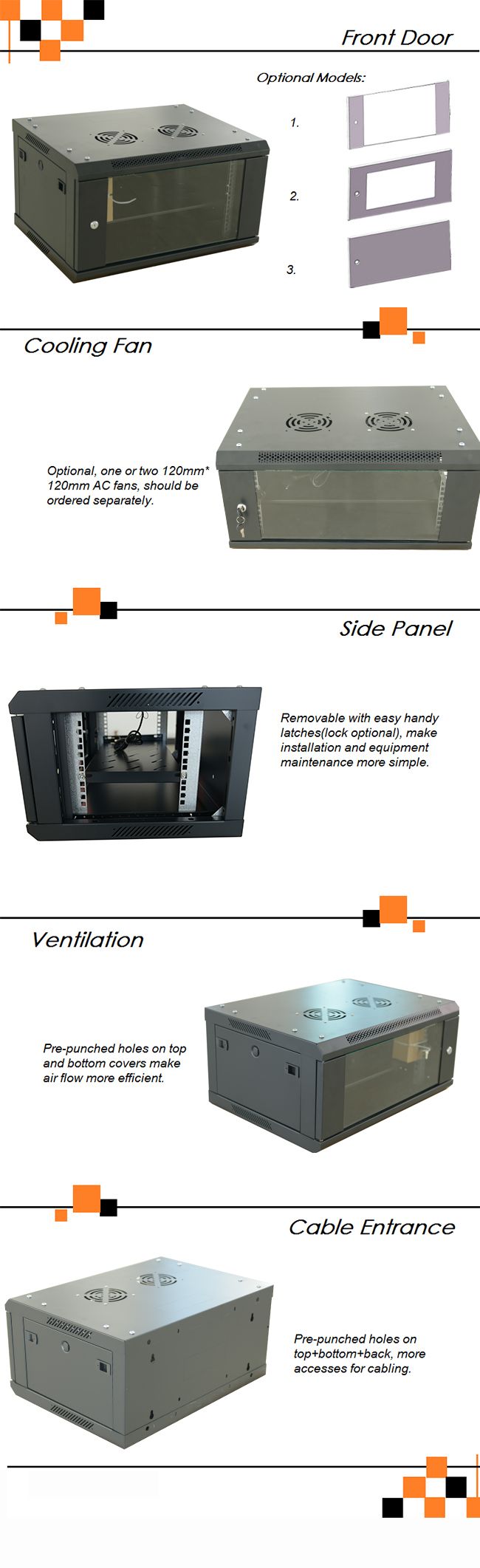

Cabinet Details

Specification

Width(mm)	Depth(mm)	Capacity(U)	Height(mm)	Order NO.
550	450	4U	280	WM5404
		6U	368	WM5406
		9U	501	WM5409
		12U	635	WM5412
		15U	769	WM5415
		18U	901	WM5418
		22U	1082	WM5422
		27U	1304	WM5427
550	600	6U	368	WM5606
		9U	501	WM5609
		12U	635	WM5612
		15U	769	WM5615
		18U	901	WM5618
		22U	1082	WM5622
		27U	1304	WM5627
600	450	6U	368	WM6406
		9U	501	WM6409
		12U	635	WM6412
		15U	769	WM6415
		18U	901	WM6418
		22U	1082	WM6422
		27U	1304	WM6427
600	600	6U	368	WM6606
		9U	501	WM6609
		12U	635	WM6612
		15U	769	WM6615
		18U	901	WM6618
		22U	1082	WM6622
		27U	1304	WM6627

Who Are We?

1. A manufacturer of server rack and network cabinet with 25 years experience

2. Around 100 skilled engineers and more than 400 workers

3. 35000 square meters workshop

4. Customizing services, OEM services, etc.

Why Us?

Applications of Our Cabinets

Rack cabinets for Information Technology and telecommunication appliances use:

• Small, Medium and Large Servers

• DVR, Security Equipment and Routers

• Patch Panels and Switches

• Telephone Systems and PABX

• Network and Communications Equipment

• UPS Equipment

• Other Rack Mount Equipment

Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.

We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.

Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.

Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.

Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.

Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
