| Prod Model: |
H1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loading Capacity: |
1300kg |
| Product Name: |
Server Cabinet |
| Installation Type: |
Vertical |
| Optional Color: |
Black,Gray,White |
| Feature: |
Floor Standing Cabinet |
| Width: |
600mm,;800mm |
| Depth: |
600*800/1000/1100/1200;800*800/1000/1100/1200; |
| Surface Finish: |
Powder Coating |
| Material: |
Nine-Fold Profile; SPCC Cold Rolled Steel |
| Type: |
Network Cabinet |
| Usage: |
Wireless Monitoring System |
| Installation: |
Vertical |
| Fan Number: |
Four |
| Certification: |
RoHS |
| Condition: |
New |
| Capacity: |
42u |
Product Description

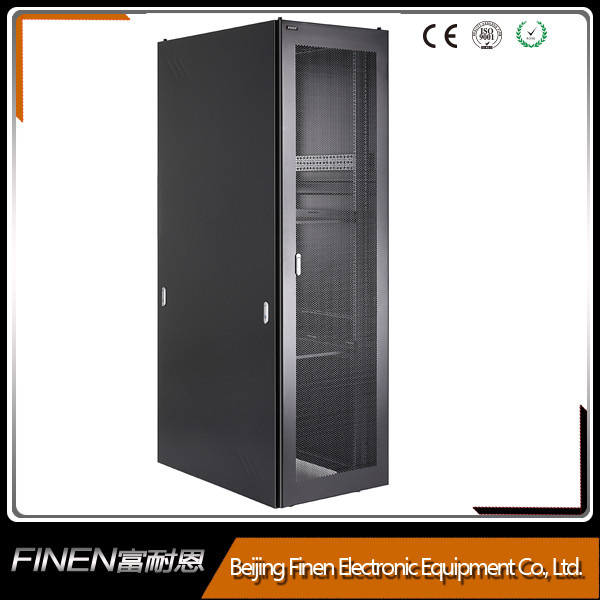

19'' SPCC Cold Rolled Steel Material 19 Inch Network Cabinet
1). 25 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery(7-14 days)
4). OEM service
Product information:
1). Industry Standard:Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard
2). Capacity/Rack Units:42u
3). Loading Capacity: 1200kgs(=2204.62lbs)
4). Materials:Nine-fold profile; SPCC high-quality cold rolled steel
5). Thickness:
Mounting profiles: 2.0mm;
Mounting rails:1.5mm
Other enclosures: 1.2mm
6) Surface Finish:Degreasing, Pickling, Phosphating, Powder coating
7)Protection Degree: IP20
8)Color:Black(RAL9004) White(RAL7035) Grey(RAL7032)

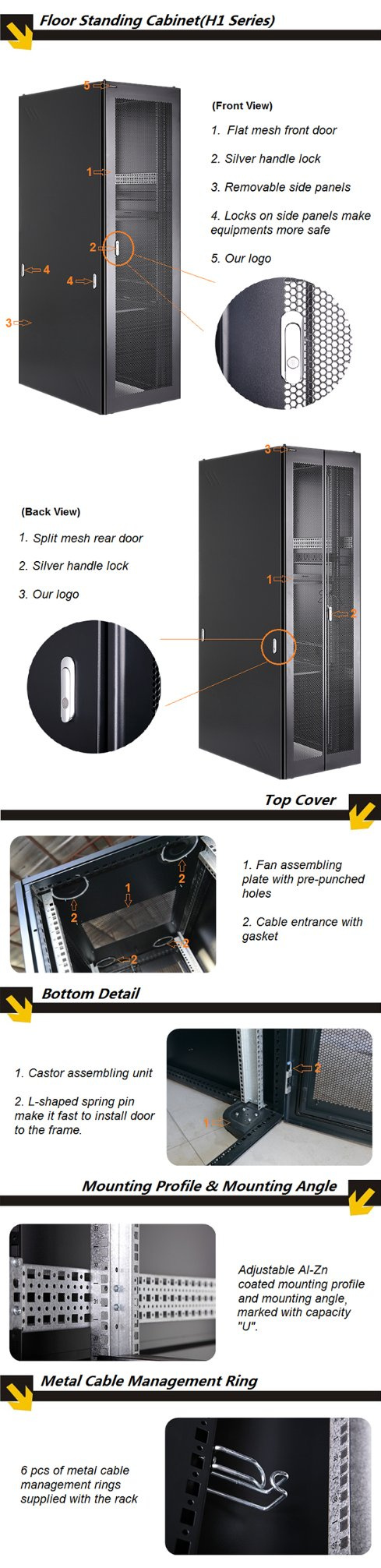

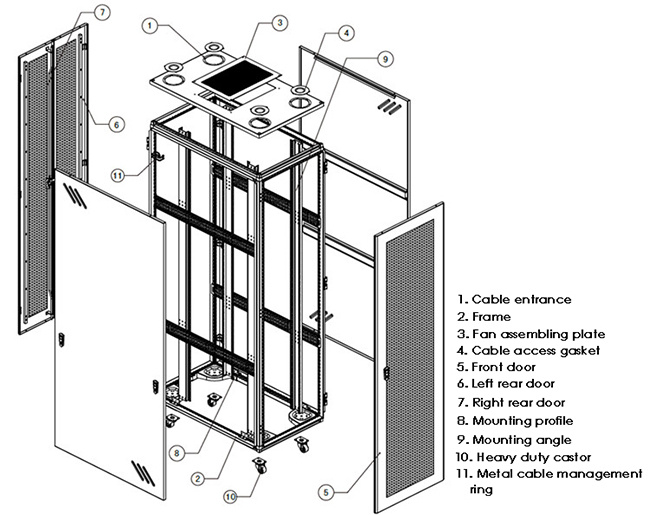

Features:2 Sets of adjustable mounting rails(Zinc Plated)
Cage nut style mounting rails
Removable/lockable side panels
Top and Bottom removable cable slots
Vented doors

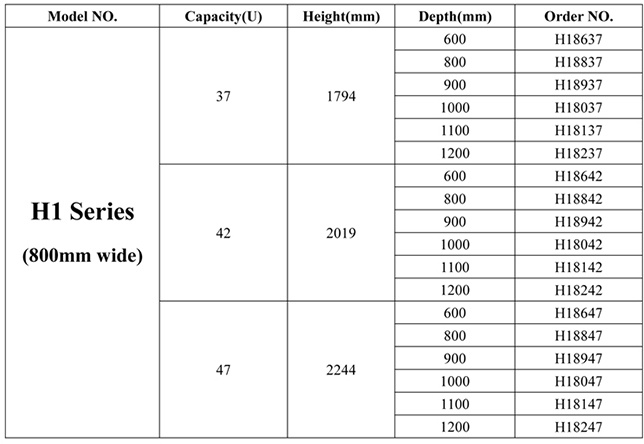

Specifications
Width - 23.62 Inches (600mm), 31.50 Inches (800mm)
Depth - 23.62 Inches (600mm), 31.50 Inches (800mm),39.37 Inches (1000mm)
Rail Width - 19 inch EIA Compliant
Advantage
1.Secure,firm and reliable
2. Easy to maintain equipment
3. Two Packing Ways:
1).Assembly packing to save labour cost, ready to resell or use
2).Disassembly packing to save space and transport cost, easy to assemble
4.Certification: ISO 9001:2000
5. OEM/ODM service available
Recommended options
Fan assembly kit
PDU
Racks Screws,Cage nuts
Plastic/Metal Cable management
Shelves
Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.
We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.
Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.
Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.
Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.
Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
