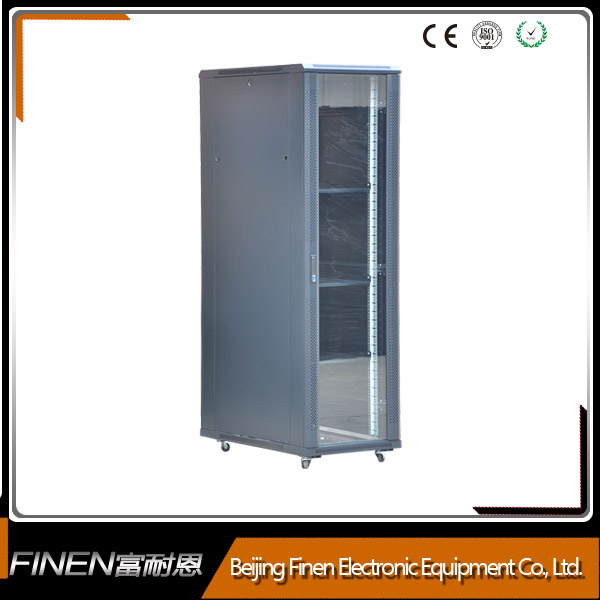

19 Inch Telecom Cabinet Server Cabinet

Prod Model:	A3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	18u,22u,27u,32u,37u,42u
Loading Capacity:	800kg
Width:	600mm, 800mm
Depth:	600mm, 800mm, 1000mm
Color:	Black, Gray, White
Surface Finish:	Powder Coating
Feature:	Floor Standing
Door:	Flat Mesh
Material:	SPCC Cold Rolled Steel
Service:	OEM
Type:	Network Cabinet
Fan Number:	Four
Usage:	Network Integration System
Certification:	RoHS
Installation:	Vertical
Condition:	New

Product Description

Finen A3 Series-19 Inch telecom cabinet server cabinet(18u 22u 27u 32u 37u 42u 47u) 1).25 year's production experience. 2).Certificate:ISO9001. 3).Quick delivery(7-10 days) 4).High quality & reasonable price Product Information 1).Industry Standard : Complies with ANSI/EIA RS-31O-D,IEC297-2,DIN41491:PART1,DIN41494:PART7,GB/T3047.2-92,;ETSI Standard 2).Capacity/Rack Units:18u,22u,27u,32u,37u,42u,47u 3).Loading Capacity:800kgs(1763.7lbs) 4).Materials:SPCC high-quality cold rolled steel 5).Thickness: Mounting profiles:2.0mm; Mounting rails:1.5mm; Other enclosures:1.2mm 6).Cooling Fan:Two/Four optional 120mm AC cooling fans 7).Side panels:Removable with Easy Handy Latches 8).Doors:vented mesh front and rear doors with handle locks 9).Colors:Black-RAL9004;White-RAL7035;Grey-RAL7032 10).Surface Finish:Degreasing,Pickling,Phosphating,powder coating Features: 1).Zinc Plated mounting profile 2).Meet IP20 Protection Grade 3).Secure,firm and reliable 4).Excellent Air Ventilation Design with AC 120mm Cooling Fans 5).Three Ways, Top, Bottom, and Rear Cabling Tunnels 6).Easy to install and maintain 6).Certification: ISO 9001:2000 7).OEM service availale Server rack Applications Rack cabinets for Information Technology and telecommunication appliances use: -Small, Medium and Large Servers -DVR, Security Equipment and Routers -Patch Panels and Switches -Telephone Systems and PABX -Network and Communications Equipment -UPS Equipment -Other Rack Mount Equipment Who are we? 1).A manufacturer of server rack and network cabinet with 30 years experience 2).53 skilled engineer and more than 400 workers 3).35000 square meters workshop 4).Customizing services, OEM services, etc. Other Choice: FINEN-A2 Series Toughened glass front door and solid rear door with round locks FINEN-AS Series Toughend glass front door with air holes on door stripe,vented mesh rear door,handle locks FINEN-K3 Series Hexagonal mesh front and rear doors with moon locks FINEN-WL Series 4u,6u,9u,12u,15u,18u wall mountable rack cabinets We are always developing the new design according to customer demands. Cabinet Package Contents No. Component name Quantity Unit Material Remark 1 Top Cover 1 pc SPCC cold rolled steel T1.0 2 Fan Unit 1 pc --- With 2/4 fans 3 Mounting Profile 4 pc Zinc plated  T2.0 4 Mounting angle 6 pc SPCC  T1.2 4pcs for lower 30U 5 Frame 2 pc SPCC  T1.2 6 Lock 2 pcs --- Handle lock 7 Front Door 1 pc SPCC  T1.2 Mesh door 8 Rear Door 1 pc SPCC  T1.0 Mesh door 9 Side Panel 2 pcs SPCC  T1.0 Removable 10 Bottom Panel 1 pc SPCC  T1.0 11 Screw 20 pcs --- 80pcs 12 Square Nut 20 pcs SPCC  T1.0 80pcs 13 Castor 4 pcs Steel 14 Adjustable leveling feet 4 pcs Steel 15 Other components are available according to request     Specification Model No. Capacity(U) Width(mm) Depth(mm) Height(mm) Cubic(CBM) A3-6618 18 600 600 988 0.17 A3-6818 600 800 988 0.20 A3-6018 600 1000 988 0.23 A3-6622 22 600 600 1166 0.192 A3-6822 600 800 1166 0.243 A3-6022 600 1000 1166 0.30 A3-6632 32 600 600 1610 0.28 A3-6832 600 800 1610 0.33 A3-6032 600 1000 1610 0.38 A3-6637 37 600 600 1833 0.30 A3-6837 600 800 1833 0.35 A3-6037 600 1000 1833 0.42 A3-6642 42 600 600 2055 0.32 A3-6842 600 800 2055 0.38 A3-6042 600 1000 2055 0.46
