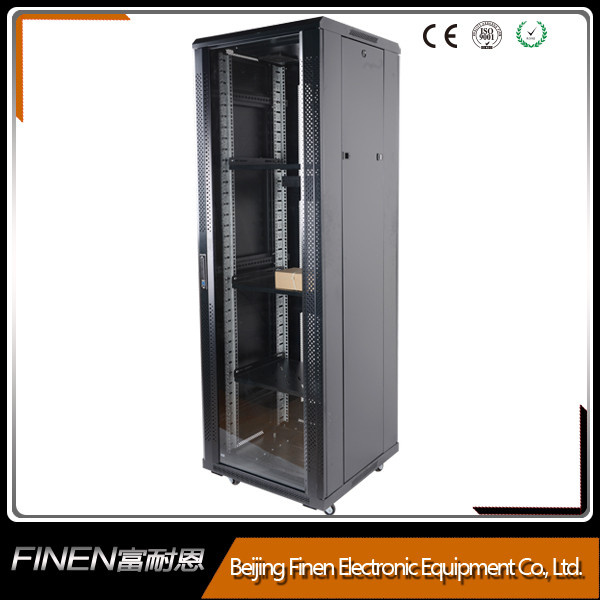

19-Inch Server Rack, Standing Network Cabinet with Tempered Glass Locking Doors

19-Inch Server Rack, Standing Network Cabinet with Tempered Glass Locking Doors
Price: US $ 137/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Model No.: as
Product Name: Server Rack
Installation Type: Vertical
Optional Color: Black,Gray,White
Feature: Floor Standing Server Rack
Width: 600/800mm
Depth: 600-1200mm
Surface Finish: Powder Coating
Material: SPCC Cold Rolled Steel
Type: Network Cabinet
Usage: Wireless Monitoring System
Installation: Vertical
Certification: RoHS
Condition: New
Fan Number: Optional
Capacity: 18u-42u

Product Description

19-inch Server Rack,Standing Network Cabinet with Tempered Glass Locking Doors

Specification:
Basic Information
1) StandardComplies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92ETSI Standard
2) MaterialSPCC high-quality cold rolled steel
3) ThicknessMounting profile 2.0mm
Others 1.0mm
4) Surface FinishDegreasing, Pickling, Phosphating, Powder coating
5) Protection DegreeIP20
6) Loading Capacity800kgs(=1763lbs)
7) ColorOptional:  Black(RAL9004)  White(RAL7035)  Grey(RAL7032)
Features
 2 Sets of adjustable mounting rails(Zinc Plated)
 Cage nut style mounting rails
 Removable/lockable side panels
 Top and Bottom removable cable slots
 Glass front door/Vented Rear door

Specifications

 Width - 23.62 Inches (600mm), 31.50 Inches (800mm)

 Depth - 23.62 Inches (600mm), 31.50 Inches (800mm),39.37 Inches (1000mm)

 Rail Width - 19 inch EIA Compliant



Advantage
1.Secure,firm and reliable
2. Easy to maintain equipment
3. Two Packing Ways:
    1).Assembly packing to save labour cost, ready to resell or use
    2).Disassembly packing to save space and transport cost, easy to assemble
4.Certification: ISO 9001:2000
5. OEM/ODM service available

Recommended options

 Fan assembly kit
 PDU
 Racks Screws,Cage nuts
 Plastic/Metal Cable management
 Shelves



Cabinet Structure

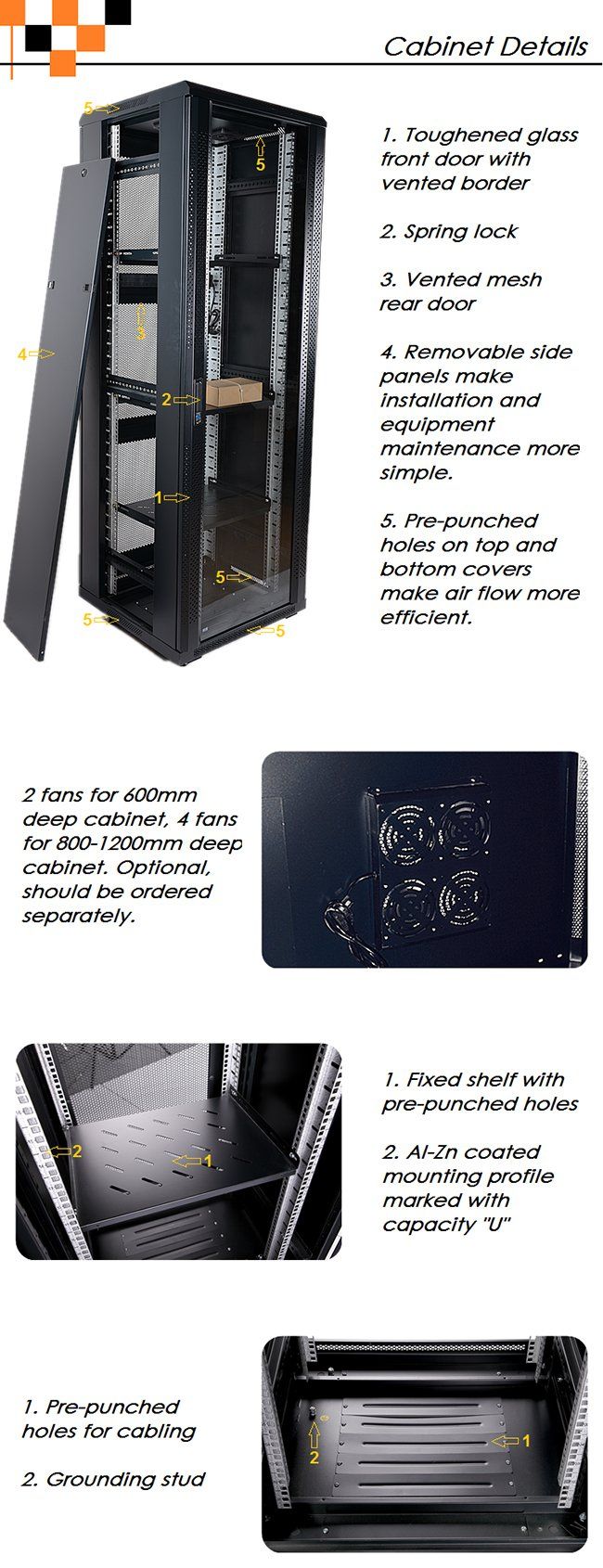

                      Cabinet Details

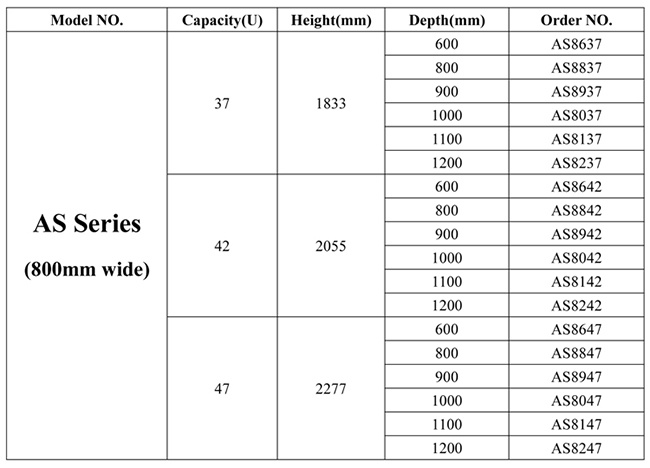

Specification



Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.

We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.

Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.

Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.

Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.

Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
