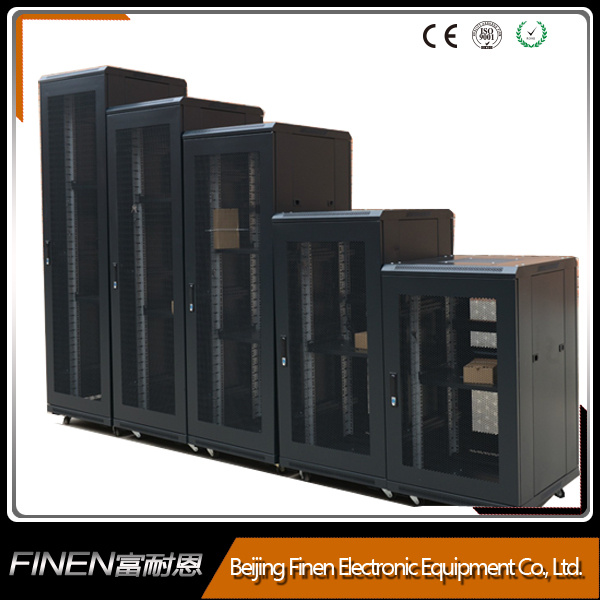

19 Inch Metal Electronic Cabinet Rack Cabinet

Prod Model:	A3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
U Capacity:	18u,22u,32u,37u,42u
Loading Capacity:	800kg
Color:	Black,Gray,White

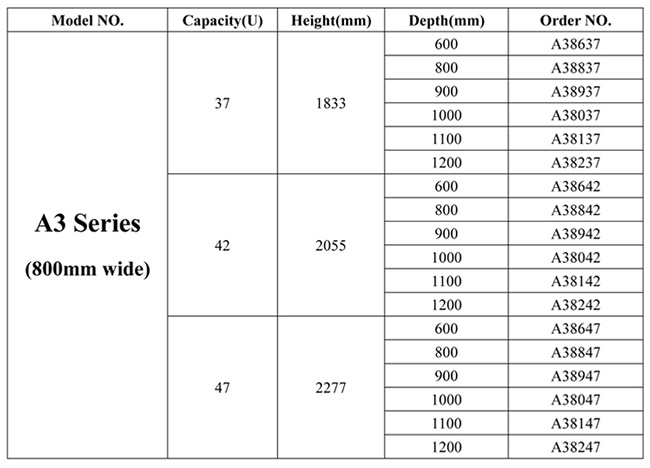

Width:	600mm,800mm
Depth:	600mm,800mm,1000mm
Material:	SPCC Cold Rolled Steel
Optional Service:	OEM
Certificate:	ISO
Protection Grade:	IP20
Type:	Server Cabinet
Usage:	Network Integration System
Installation:	Vertical
Fan Number:	Two
Certification:	RoHS
Condition:	New

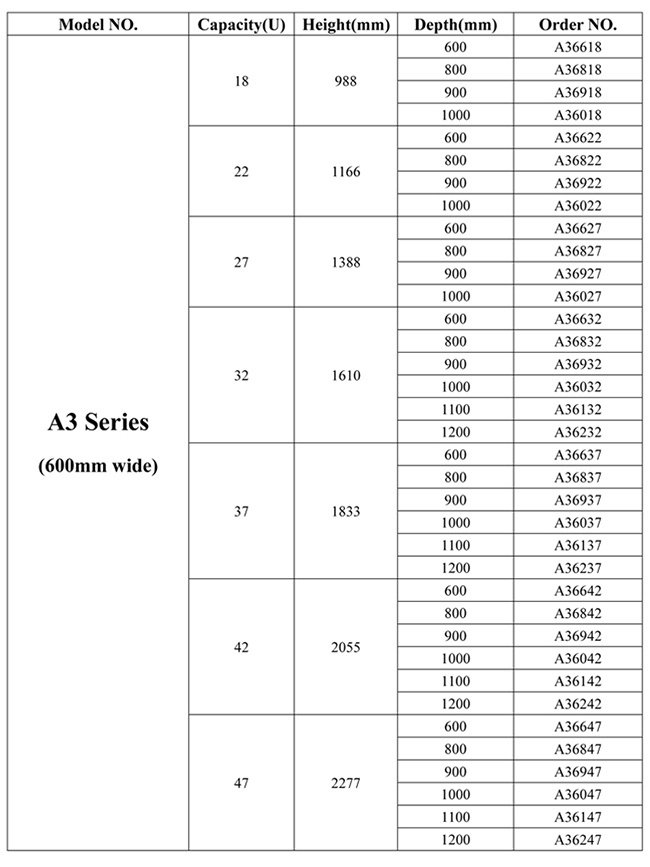

Capacity:	18u,22u,27u,32u,37u,42u

Product Description

19 inch metal Electronic Cabinet Rack Cabinet

1). 25 year's production experience
2). Certificate: ISO9001
3). Quick delivery(7-10 days)
4). OEM service

1. Product Information
1). Standard: Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard

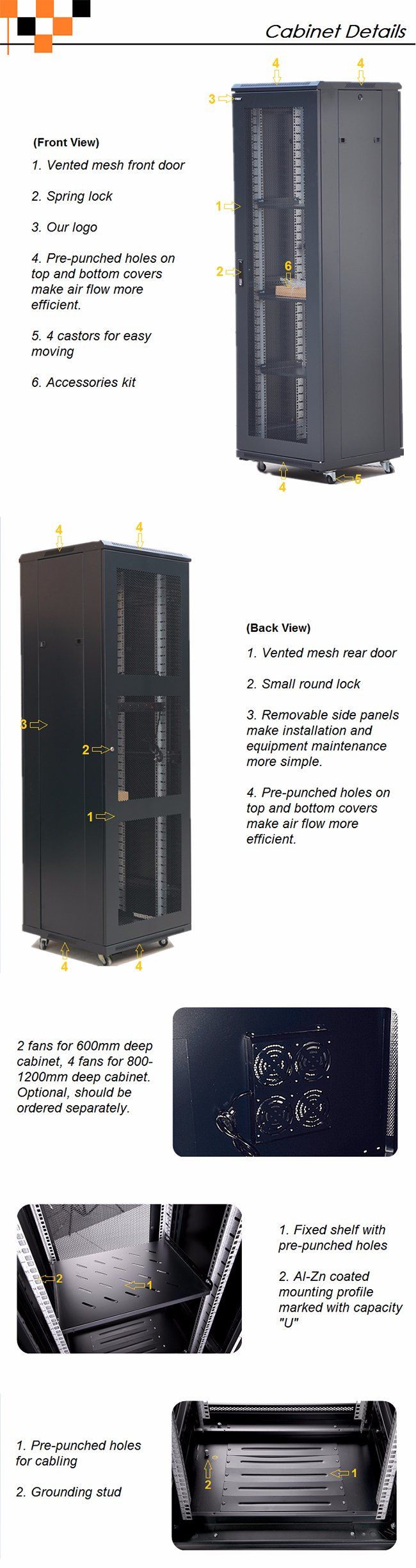

2). Feature
-High-Density square holes Front Door With Over 180 Turing Degree-Vented rear door with round lock
-High-Density square holes Rear Door (Ventilation Rate Above 75%)
-Side Panel: Removable Side Panel, easy To Install And Miantain (Lock Optional)
-Zinc Plated mounting profile
-Adjustable feet and heavy duty castors are supplied
-Cable entry on the top cover and base plate with adjustable sizes
-Optional installation of plinth for extra ventilation and eA3e of cabling
-Efficient and reliable cabinet connection with use of baying kit
-Removable side panels, eas to install and remove, key locks available are accessory.

3). Main Material: SPCC Cold rolled steel
4). Surface Finish: Degreasing, Pickling, Phosphating, Powder coating.
5). Degree of Protection: IP20
6). Loading Capacity: 800kg

2. Applications

Rack cabinets for Information Technology and telecommunication appliances use:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment

3. Who are we?
1). A manufacturer of server rack and network cabinet with 30 years experience
2). 53 skilled engineer and more than 400 workers
3). 35000 square meters workshop
4). Customizing services, OEM services, etc.

4. Other choice
AS series cabinet- with toughened glass front door and mesh rear door
WL series cabinet- wall mounted cabinet(4U 6U, 9U, 12U)

All you need to do - take it out of the box and start installing your hardware.
Designed and made from high quality steel, this Rack Cabinet has all the features you need to get your network up and running - FAST! ! !
All Rack Cabinets we manufacture, are built around universal 19" Rack-mount standards - designed to take Rack Mount equipment from other Vendors.

Cabinet Package Contents
No.	Component name	Quantity	Unit	Material	Remark
1	Top Cover	1	pc	SPCC cold rolled steel T1.0
2	Fan Unit	1	pc	---	With 2/4 fans
3	Mounting Profile	4	pc	Zinc plated  T2.0
4	Mounting angle	6	pc	SPCC  T1.2	4pcs for lower 30U
5	Frame	2	pc	SPCC  T1.2
6	Lock	2	pcs	---	Handle lock
7	Front Door	1	pc	SPCC  T1.2	Mesh door
8	Rear Door	1	pc	SPCC  T1.0	Mesh door
9	Side Panel	2	pcs	SPCC  T1.0	Removable
10	Bottom Panel	1	pc	SPCC  T1.0
11	Screw	20	pcs	---	80pcs
12	Square Nut	20	pcs	SPCC  T1.0	80pcs
13	Castor	4	pcs	Steel
14	Adjustable leveling feet	4	pcs	Steel
15	Other components are available according to request
