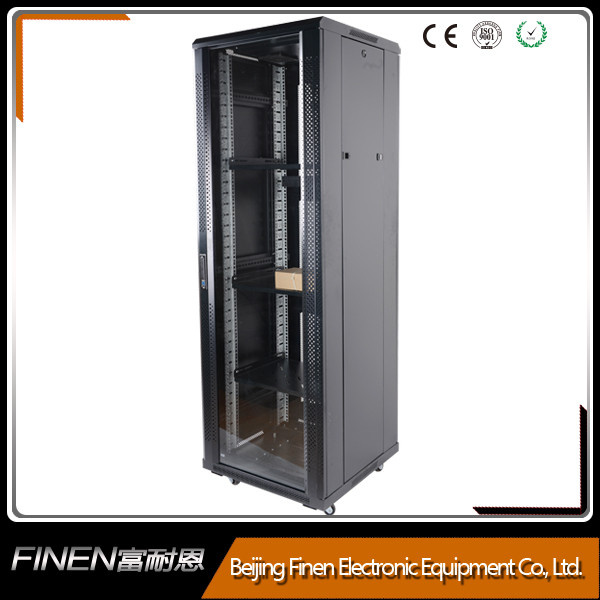

19" Front Glass Door Rear Steel Door 37u Network Data Rack Server Cabinet
| Price: |
US $ 137/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Model No.: |
as |
| Product Name: |
Server Rack |
| Installation Type: |
Vertical |
| Optional Color: |
Black,Gray,White |
| Feature: |
Floor Standing Server Rack |
| Width: |
600/800mm |
| Depth: |
600-1200mm |
| Surface Finish: |
Powder Coating |
| Material: |
SPCC Cold Rolled Steel |
| Type: |
Network Cabinet |
| Usage: |
Wireless Monitoring System |
| Installation: |
Vertical |
| Certification: |
RoHS |
| Condition: |
New |
| Fan Number: |
Optional |
| Capacity: |
18u-42u |
Product Description
19" Front glass door rear steel door 37U network data rack server Cabinet
| Basic Information |
| 1) Standard | Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard |
| 2) Material | SPCC high-quality cold rolled steel |
| 3) Thickness | Mounting profile 2.0mm
Others 1.0mm |
| 4) Surface Finish | Degreasing, Pickling, Phosphating, Powder coating |
| 5) Protection Degree | IP20 |
| 6) Loading Capacity | 800kgs(=1763lbs) |
| 7) Color | Optional: Black(RAL9004) White(RAL7035) Grey(RAL7032) |
| Features |
2 Sets of adjustable mounting rails(Zinc Plated)
Cage nut style mounting rails
Removable/lockable side panels
Top and Bottom removable cable slots
Glass front door/Vented Rear door
Specifications
Width - 23.62 Inches (600mm), 31.50 Inches (800mm) Depth - 23.62 Inches (600mm), 31.50 Inches (800mm),39.37 Inches (1000mm) Rail Width - 19 inch EIA Compliant
Advantage
1.Secure,firm and reliable
2. Easy to maintain equipment
3. Two Packing Ways:
1).Assembly packing to save labour cost, ready to resell or use
2).Disassembly packing to save space and transport cost, easy to assemble
4.Certification: ISO 9001:2000
5. OEM/ODM service available
Recommended options
Fan assembly kit
PDU
Racks Screws,Cage nuts
Plastic/Metal Cable management
Shelves |
Cabinet Structure

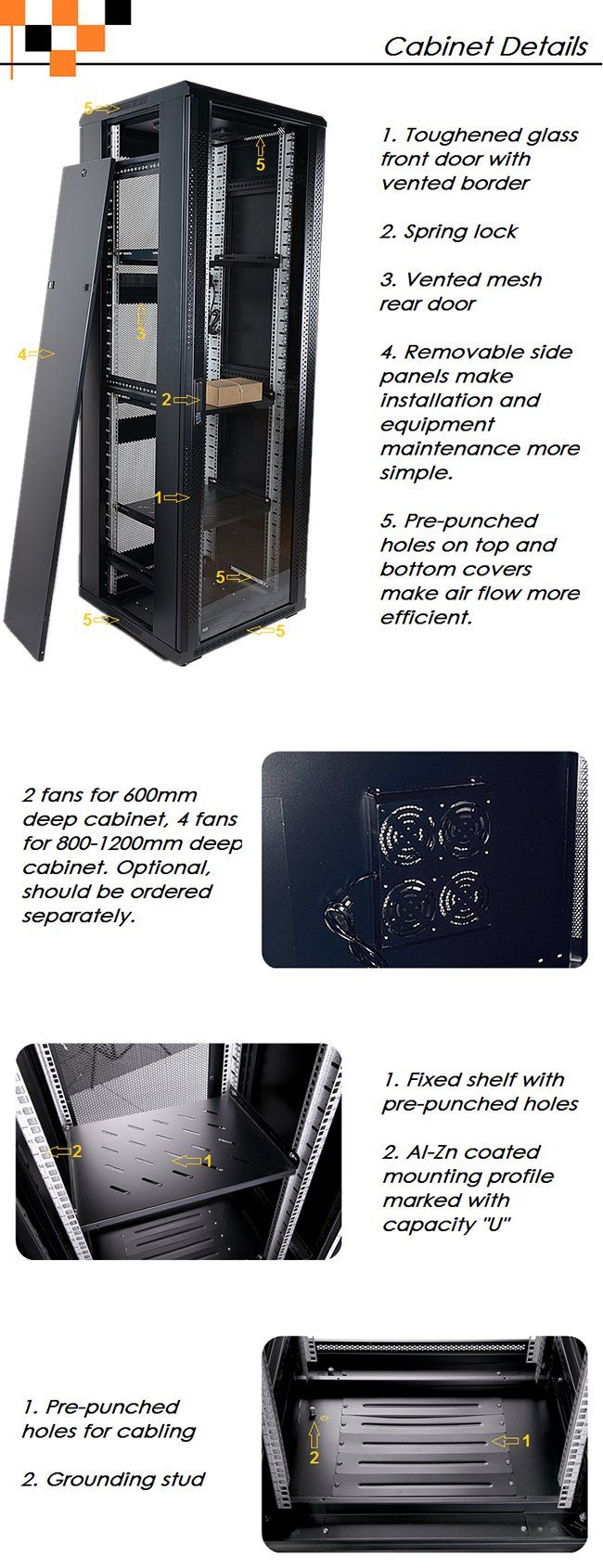

Cabinet Details
Specification
