| Prod Model: |
WLS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Trade Mark: |
Finen |
| Optional Color: |
Black,White |
| Load Capacity: |
60kg |
| U Capacity: |
4u 6u 9u 12u 15u 18u 22u 27u |
| Width: |
550mm/600mm |
| Depth: |
450mm/600mm |
| Packing Way: |
Assembly Packing,Disassembly Packing or Customized |
| Front Door: |
Tempered Glass, Can Open From Either Left or Right |
| Side Panel: |
Remove Easily with Latches |
| Optional Accessories: |
Fan,PDU,Bracket,Shelf,Brush Strip,Rubber Strip,etc |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Wall-Mounted Cabinet |
| Fan Number: |
One |
| Certification: |
RoHS |
| Condition: |
New |
| Capacity: |
4u-27u |
Product Description

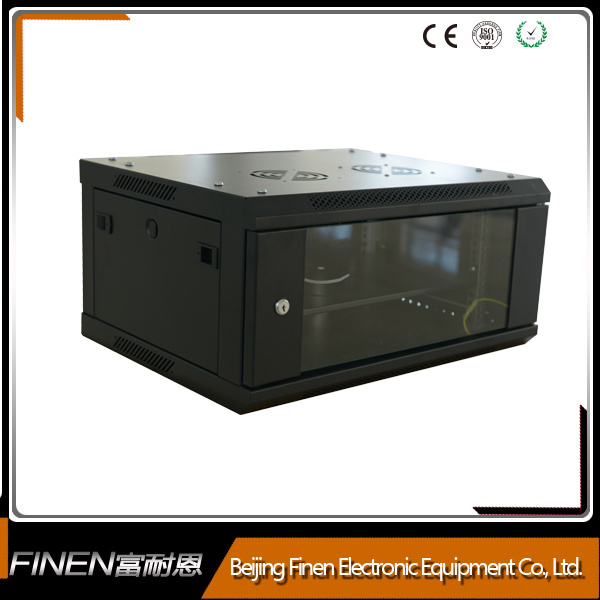

Hot Sale Wall Mount Network Cabinet Rack for Office and Family Use
Product Information
1.Standard:
Complies with ANSI/EIA RS-31O-D,IEC297-2,DIN41491:PART1,DIN41494:PART,GB/T3047.2-92,;ETSI Standard

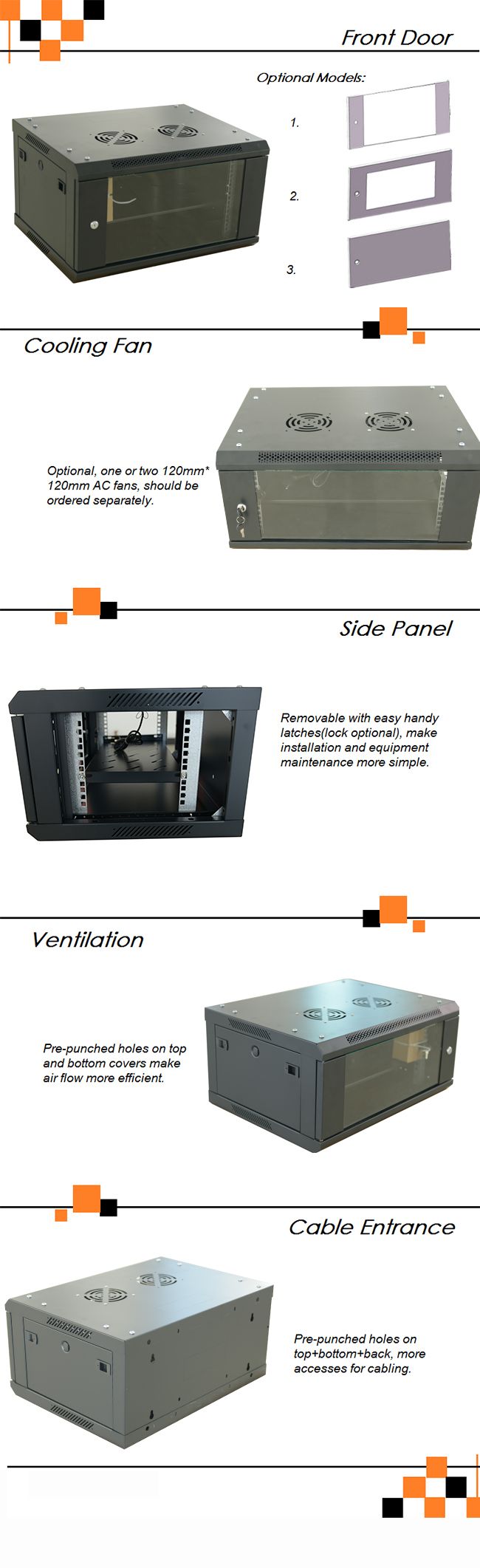

2.Feature
1) Loading Capacity:60kg
2) Mounting profile:2.0mm,others:1.20mm
3) Reversible, front tempered glass door
4) Toughened glass on front door
5) Side Panel: Removable Side Panel, Easy To Install And Miantain (Lock Optional)
6) Revolving front locks
7) Vented front and sides for cooling
8) Pre-punched provision for 1 fan (fan not included)
9) Pre-punched holes for cabling
3.Main Material
SPCC Cold rolled steel
4.Surface Finish
Degreasing, Pickling, Phosphating, Powder coating.
5.Degree of Protection:IP20
6.Loading Capacity:60kg
7. Packing Way:
Nework Cabinet Applications
Rack cabinets for Information Technology and telecommunication appliances use:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment
Who are we?
1).A manufacturer of server rack and network cabinet with 30 years experience
2).53 skilled engineer and more than 400 workers
3).35000 square meters workshop
4).Customizing services, OEM services, etc.
Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.
We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.
Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.
Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.
Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.
Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
