| Price: | US $ 3999-12999set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 1836 |
|---|---|
| Voltage: | 220V, 1pH, 50Hz (Option:380V) |
| Dimension(L*W*H): | 4400*2200*1750mm |
| Working Area: | 1800*3600*200mm |
| Spindle: | Water Cooling Spindle |
| Spindle Power: | 5.5kw |
| Spindle Speed: | 0-24000rpm |
| Motor: | 850W Japan Yaskawa Servo Motor |
| Driver: | 1kw Japan Yakaswa Servo Driver |
| Inverter: | 5.5kw Fuling Inverter |
| Control System: | DSP Control System |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |

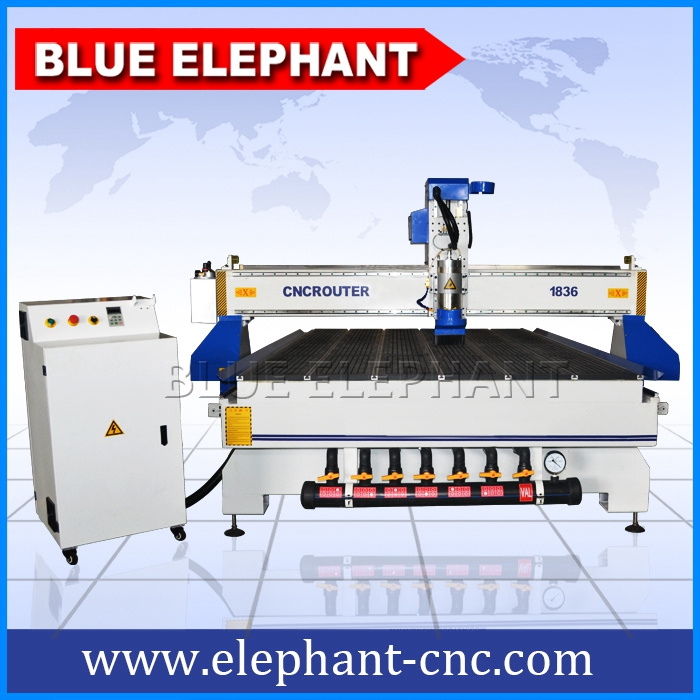

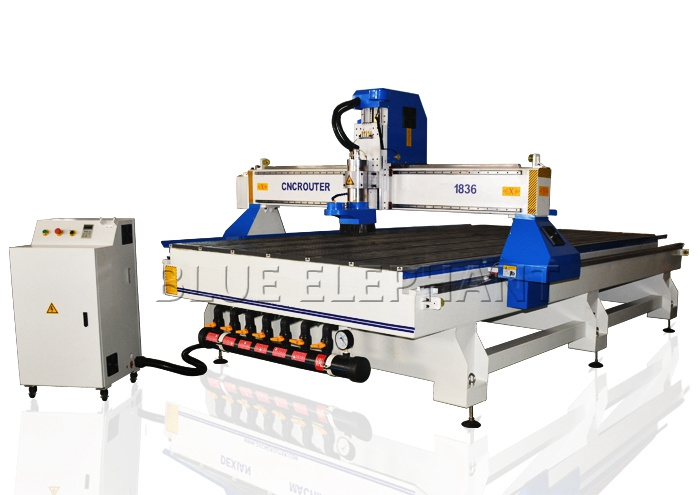

Features of cnc machine 1836:

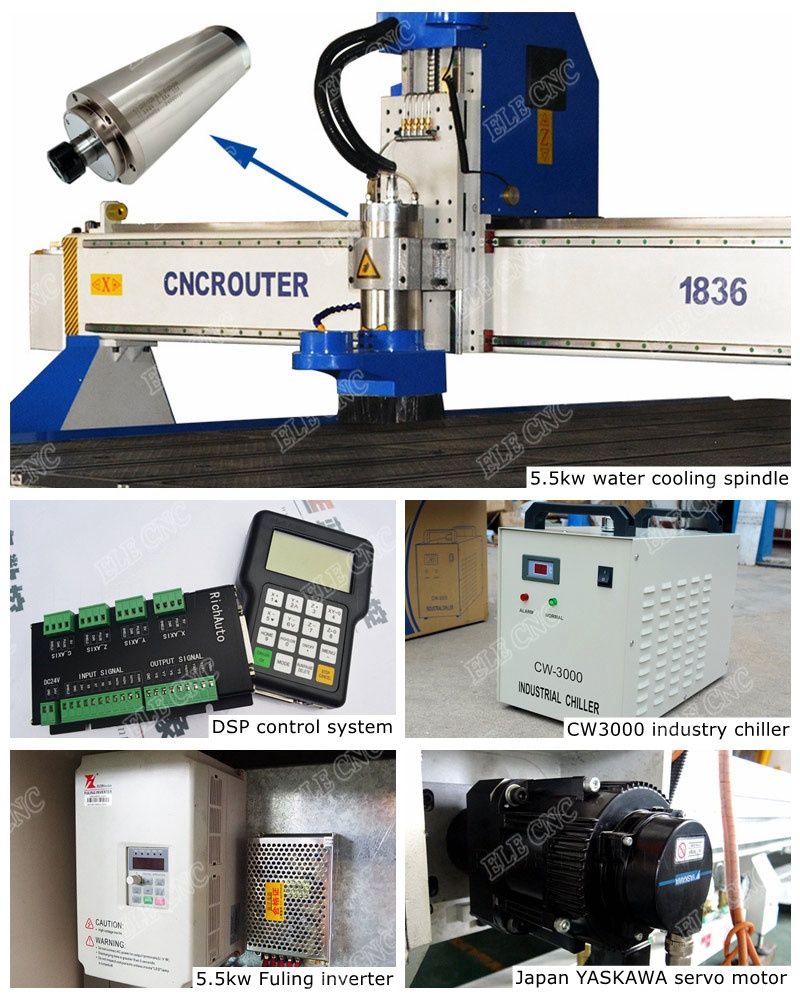

Product Details of cnc machine 1836:
Parameters of cnc machine 1836:
Descriptions | Parameters |
| Modle | 1836 |
| Working area | 1800*3600*200mm |
| Spindle | 5.5kw water cooling spindle with CW3000 industry chiller |
| Spindle speed | 0-24000RPM |
| Motor & Driver | 850w YASKAWA Servo Motor and 1kw Servo Driver |
| Inverter | 5.5kw FULING inverter |
| Control system | DSP control system with USB interface |
| Table Surface | Vacuum & T-slot working table |
| Working Voltage | 220V, 1ph, 50Hz (option:380V) |
Software | Artcam ,Type 3 software |
Transmission | Z axis with Taiwan TBI Ball screw transmission X,Y axis with high precision helical rack gear transmission X,Y,Z axis with Taiwan HIWIN Linear Guide |
| Option | 7.5kw water circulation vacuum pump, 380v,3ph 3kw double packet dust collector, 380v,3ph Auto oil mist cooling sprayer for metal Tool calibration sensor Oil lubrication system Switch: Japanese OMRON Switch Cable: Highly flexible towline; fire-resistant double-sheathed cable. |
PS:All the working area and specifications can be customized according to your requests.
Applications:
1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
4.Relief sculpture and 3D engraving.
Sample:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
