| Prod Model: |
FCT-1325W-AT2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Engraving Router |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Layout: |
Horizontal |
| Color: |
Iron Grey |
| Condition: |
New |
| Customized: |
Customized |
| Spindle Number: |
Triple-Spindle |
| Spindle Type: |
Water Cooling |
Product Description
Features:
1. This machine use 3 different tools for carving different designs on wood, no need to change tools manully, easy to operate machine and making programme.
2. The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability.
3. The special instruments to eliminate welding stress, high-precision planer ensure the precision and no deformation.
4. The major machine body makes the stability and no shacking in high speed.
5.XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
6. The professional mechanical design, scientific structure and generous appearance.
7. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifspan of spare parts.
8. High quality driver motors, spindle motors, cables, inverters,etc.
9. High Accuracy, High Torsion and Professional Gear Box without any gaps, ensure high engraviing accuracy.
10. Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Application:
Large quantity production for different materials, best choice for making wood door, Antique reproduction furniture, furniture making , instruments making, art and crafts, vacuum 3D LED box, aluminum composite boards, model-building, etc.
Working voltageAC220V/50Hz or 380V/50HzNet weight1200kg
Special configuration:
Servo motor and driver, large models, imported spindles, etc.

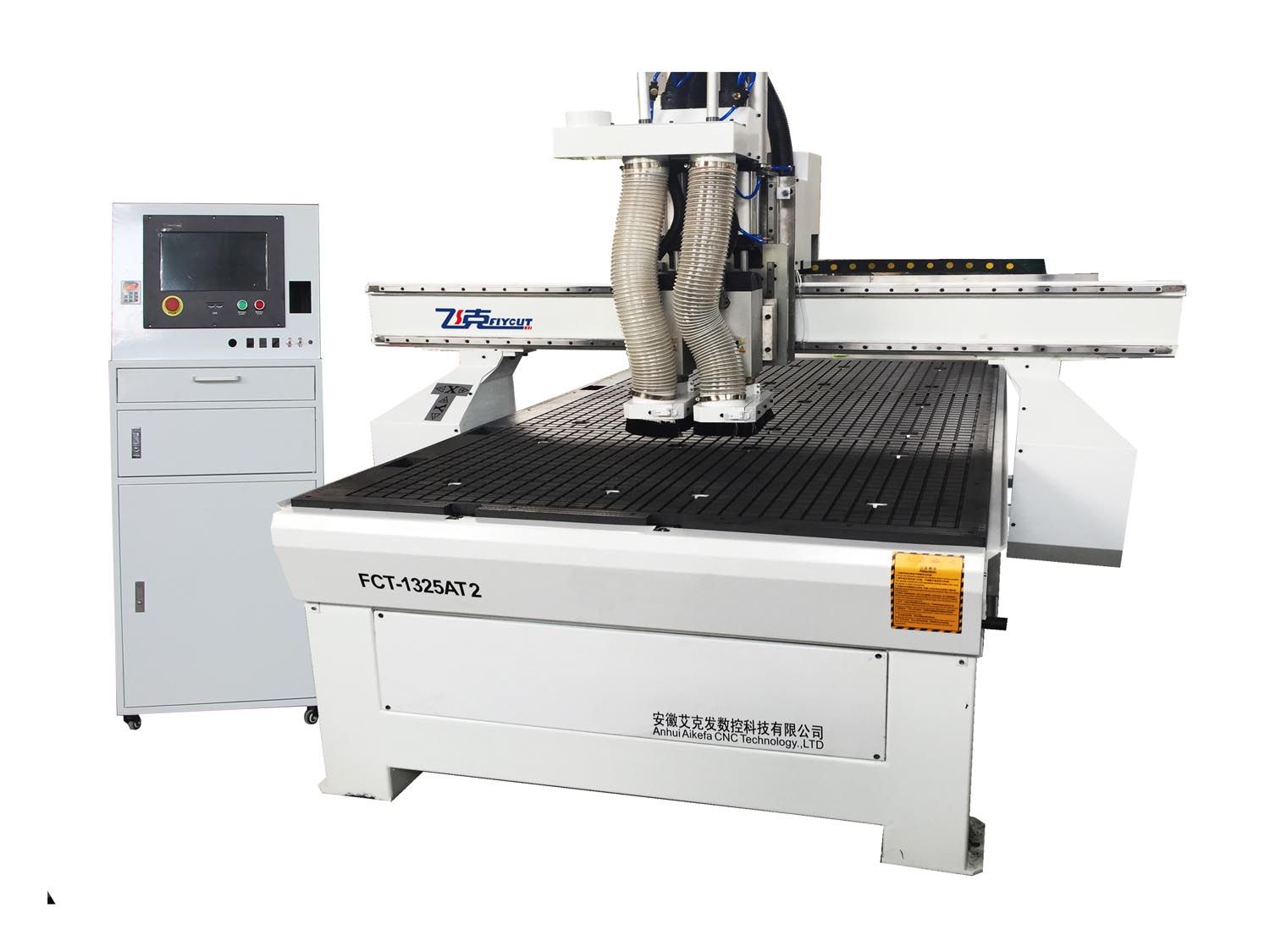

Model | FCT-1325W-AT2 |
| Table size | 1600×2640mm |
| Working size | 1300×2500×200mm |
| Spindle power | NO.1 &NO2 spindle 5.5kw water cooling |
| Z axis structure | Independent Z axis,3 air cylinders,high accuracy ball screw |
| Spindle rotate | 6000-24000rpm |
| Motor driver | Stepper motor(Chinese servo motor or imported servo motor is optional) |
| Tool diameter | 3.175, 4, 6, 12.7mm |
| Machine structure | Industry square tube structure |
| Transmission | Accuracy gear rack |
| XYZ rails | Imported square rails |
| Mechanical accuracy | <0.03/300mm |
| Data transmission | PC connection directly |
| Support format | G code or HPGL |
| Engraving speed | 12000mm/min |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 1200kg |
Tips to choose suitable machine:
1)What materials do you want to engrave or cut?
2)What's the max. size of the materials (Length*Width*Thickness)?
