1000kg Capacity Hydraulic Electric Wood Roller Scissor Lift Table
Price: |
US $ 950-1330/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
RLT |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Load Capacity: |
1000kg to 2000kg |
Lifting Height: |
870mm |
Quantity Of Hydraulic Cylinder: |
2 |
Voltage: |
as Per Customers' Local Standard |
Color: |
Yellow, Blue, Red or as Per Customer Requiement. |
Quality Warranty: |
12 Months |
Way Of Installation: |
on Ground or Underground. |
Lowering Speed: |
Adjustable |
Application: |
Building Crane |
Carrying Capacity: |
Weight Level |
Driven Type: |
AC |
Running Mode: |
Stationary |
Feature: |
Spillover Valve |
Product Description

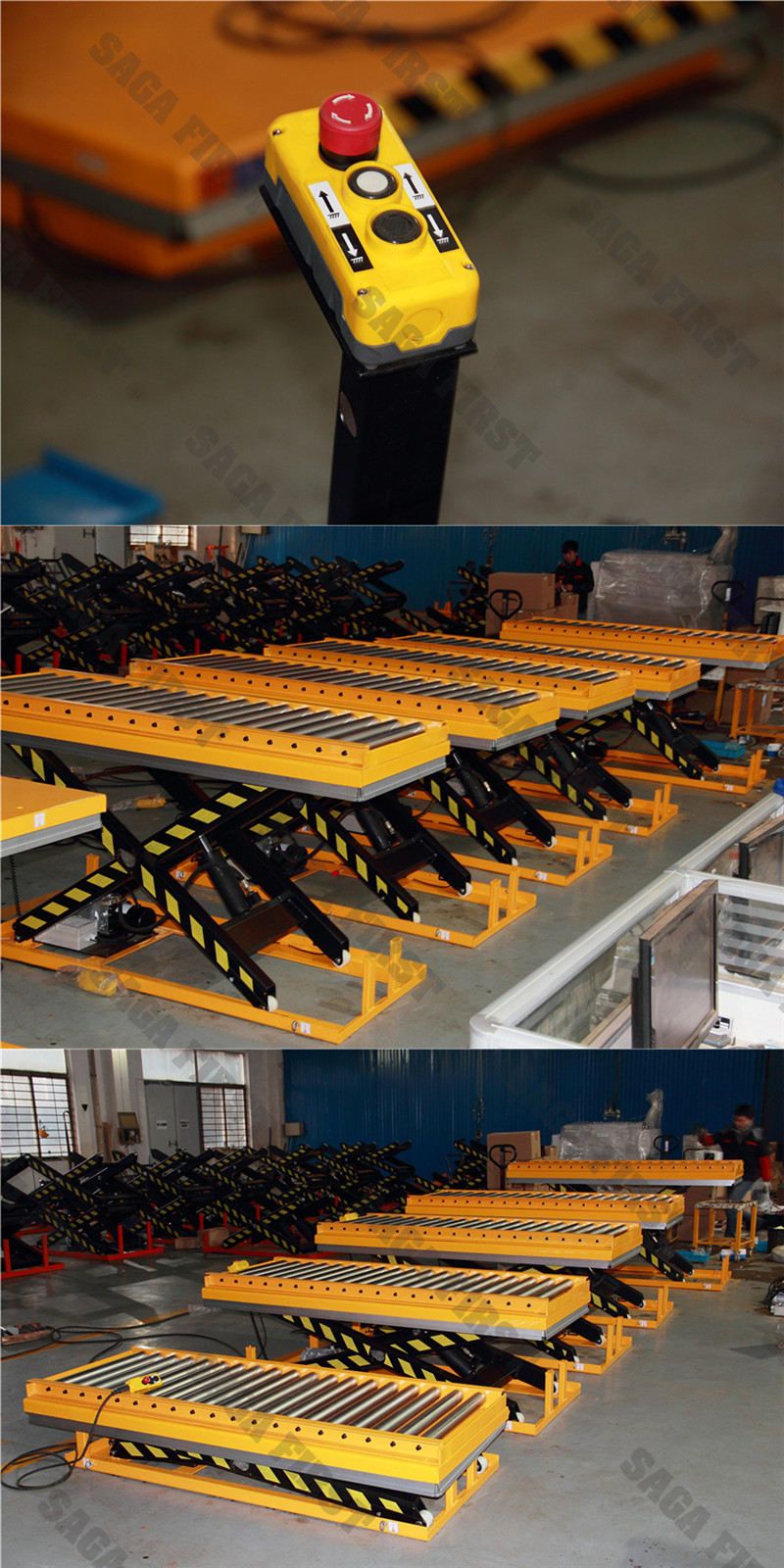

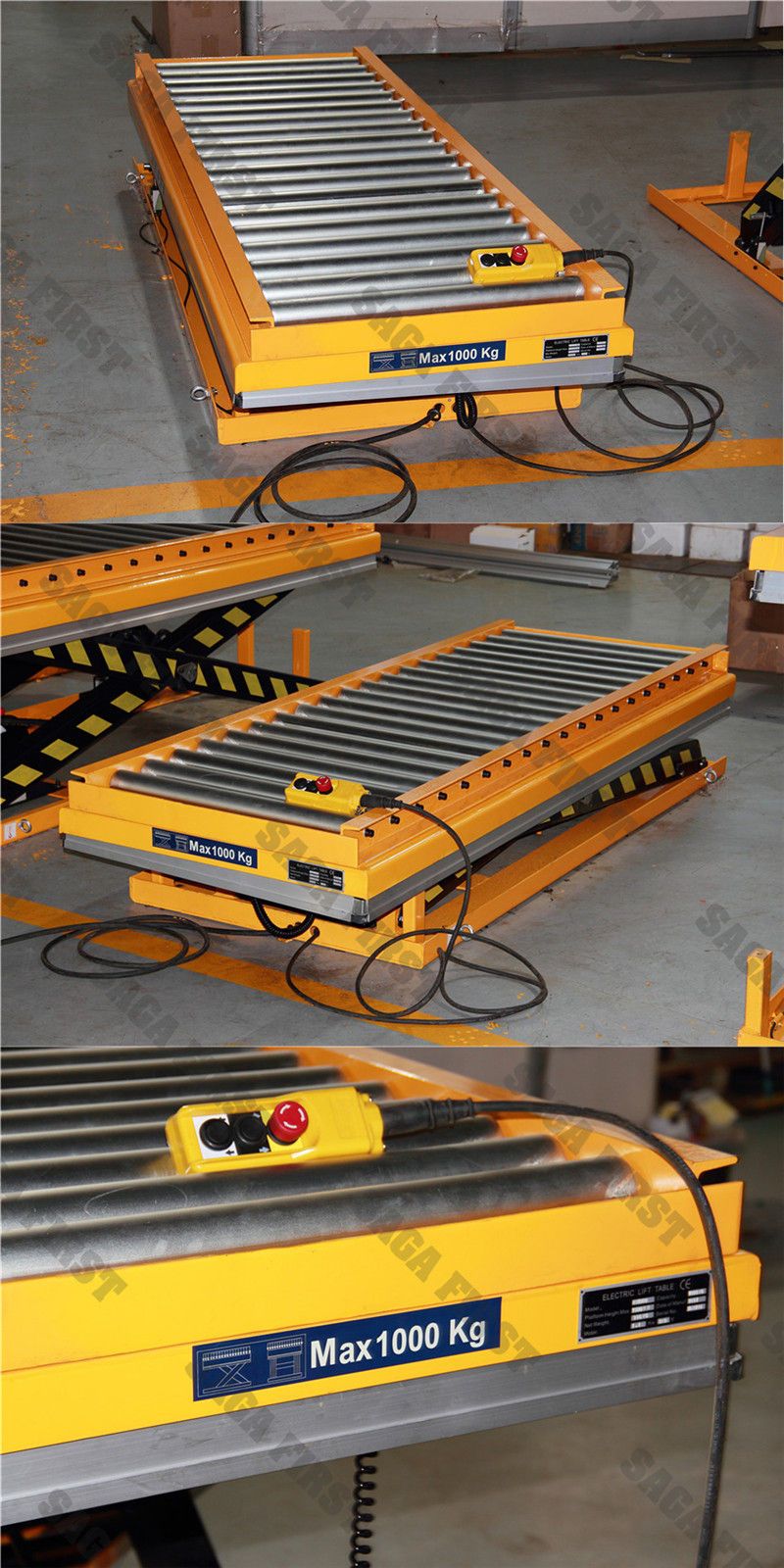

1000kg capacity hydraulic electric wood roller scissor lift table
Introduction:
Driven by the electric and hydraulic system.
Installed in the pit or on ground floor
Advantages:
1.Standard ramp make it easier to load and unload.
2.High quality pump station make it lift and fall very stably.
3.Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4.Equipped with aluminum alloy blend-stop under the platform
5.Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
6.Explosion-proof valve stops platform lowering quickly when pipe bursts.
7.Up to American standard ANSI/ASME and Europe standard EN1570
Safety Precautions:
1. Explosion-proof valves
2. Spillover valve
3. Emergency decline valve
4. Overload protection locking device.
5. Emergency decline valve
6. Overload protection locking device.
Specification:Model | Load Capacity (Kg) | Platform Size (mm) | Base Size (mm) | Min./Max.Platform Height (mm) | Lifting time (S) | Voltage (V) | Net Weight (kg) |
LP01 | 1000 | 1450*1140 | 1325*1074 | 85/860 | 25 | As Per Customers' Local Standard | 357 |
LP02 | 1000 | 1600*1140 | 1325*1074 | 85/860 | 25 | 364 |
LP03 | 1000 | 1450*800 | 1325*734 | 85/860 | 25 | 326 |
LP04 | 1000 | 1600*800 | 1325*734 | 85/860 | 25 | 332 |
LP05 | 1000 | 1600*1000 | 1325*734 | 85/860 | 25 | 352 |
LP06 | 1500 | 1600*800 | 1325*734 | 105/870 | 30 | 302 |
LP07 | 1500 | 1600*1000 | 1325*734 | 105/870 | 30 | 401 |
LP08 | 1500 | 1600*1200 | 1325*734 | 105/870 | 30 | 415 |
LP09 | 2000 | 1600*1200 | 1427*1114 | 105/870 | 35 | 419 |
LP10 | 2000 | 1600*1000 | 1427*734 | 105/870 | 35 | 405 |
Our Service:
1.We can design the customerized stationary scissor lift as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the stationary scissor lift break down to help you repair.
6.Parts of scissor lift can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The stationary scissor lifts adopt most of the common parts of hardware.You can buy the parts in your local hardware market
or forklift parts shop.
2.How can customer repair the stationary scissor lifts.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it
by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.Contact Information:
Vera (Sales Manager)
Qingdao Sinofirst Machinery Co., Ltd
Add:Danshan Industrial Park, Chengyang,Qingdao China
Tel:+86-532-66851115 Fax: +86-532-66851125
Mob:+86-18562698580 URL: www.liftawp.com
Qingdao Sinofirst Machinery Co., Ltd., famous for its high-end equipment, new and high technology, high credit standing and high growth, is a leading enterprise of aerial working platform in China and the first listed enterprise in the industry (stock code: 603338), with a total investment of up to RMB 560 million, a land area of more than 300 acres and a building area of up to 160, 000m2.
For the creation of high-end equipment, the Company has been devoted to the research and development, manufacturing, sales and service of various aerial working platforms, with 6 series and more than 80 models such as self-propelled telescopic booms, articulating booms, scissors, vertical, aerial stock picker and mast climbers. These products, featuring self-propelled type, intelligent operation and control, safety and super-sized coverage, are the most popular aerial working "robots". Due to the realization of specialization, serialization and branding, they have been widely applied to such industries as manufacturing and maintenance of airplanes and ships, building construction and installation, construction of roads and bridges, municipal works, warehousing and supermarket, etc. The Company also provides army with special-purpose products in addition to satisfying the civil demands. Sinofirst products have the following international safety certifications; European CE issued by TUV in Germany and ECM in Italy, ANSI in USA, AS/NZS 1418 in Australia, CU-TR in Russia, KC in Korea, so they are well sold to more than 80 countries and regions in Europe, the Americas, Asia and Africa, etc, as well as three large mainstream markets including Germany, Japan and America with good reputation.

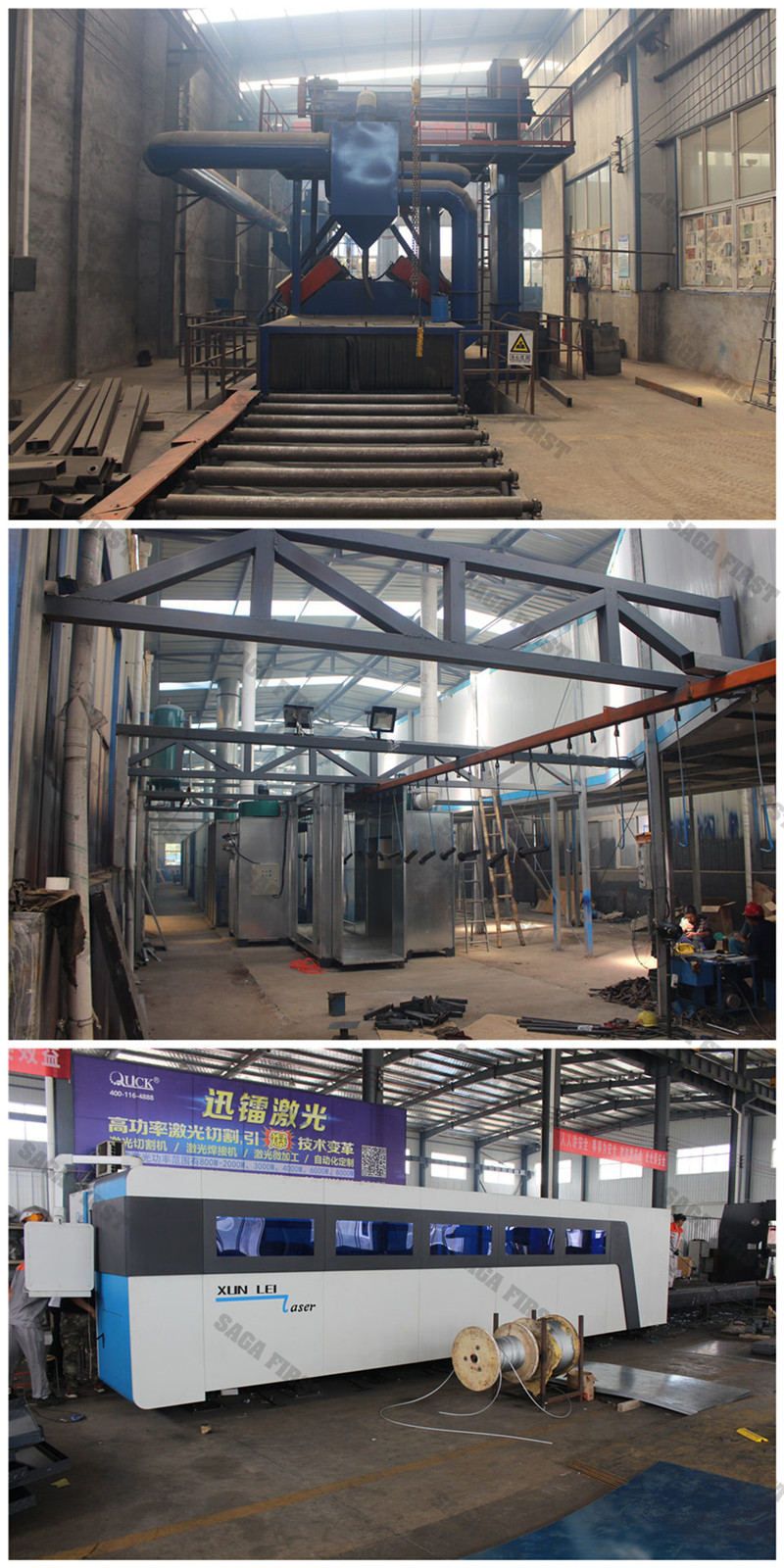

With high and new technologies, the Company has advanced and award-winning processing equipment such as automatic bending robot and laser cutting machine imported from Germany, Hamada NC punch press imported from Japan, large automated surface coating production line and general assembly production line, etc. In the aerial working platform manufacturing field, the Company takes the global tycoon as a benchmark, introduce, absorb and re-innovate foreign advanced technologies so as to stand on the technological forefront for long. In view of the realization of light structure design, integrated control system, refined hydraulic system, scientific combination and matching, we have created a batch of safe, reliable, high-efficiency and environmental-friendly new national brands. By right of strong technical strength, the Company has established a provincial-level new and high-tech R&D center, owns domestic top-notch professional talents and a team of professional technicians who are accomplished in mechanical structure, hydraulic system and electric control system, and cooperates with national defense and military industry authorities technically. Through technical innovation, the Company has owned more than 140 patents, of which there are nearly 40 patents for invention and 2 certificates of registration for computer software copyright; We have self-owned intelligent property right of core technology and the Company is recognized as Shandong provincial patent model enterprise. Besides, the Company has participated in the formulation of 5 national standards and 3 industrial standards. With multiple technologies to fill up the domestic vacancy, the Company has undertaken and complete "key scientific and technological projects" and national torch plan projects successively and won a provincial scientific and technological progress award. Moreover, the Company has been regarded as a new and high-tech enterprise supported by China, green enterprise of Shandong Province, standard innovation-oriented enterprise and innovative pilot enterprise and has become a leading enterprise of aerial working platform manufacturing industry in China.
