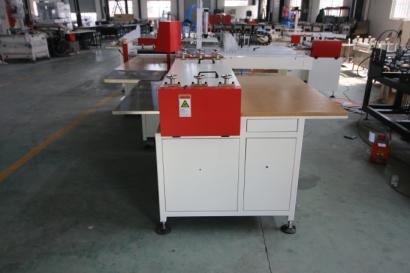

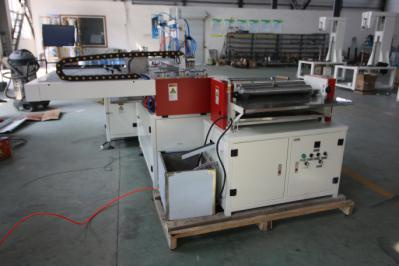

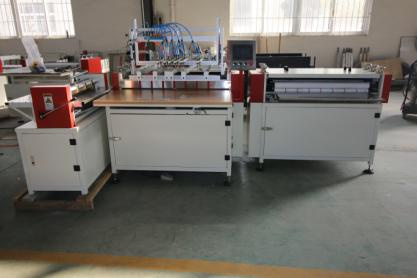

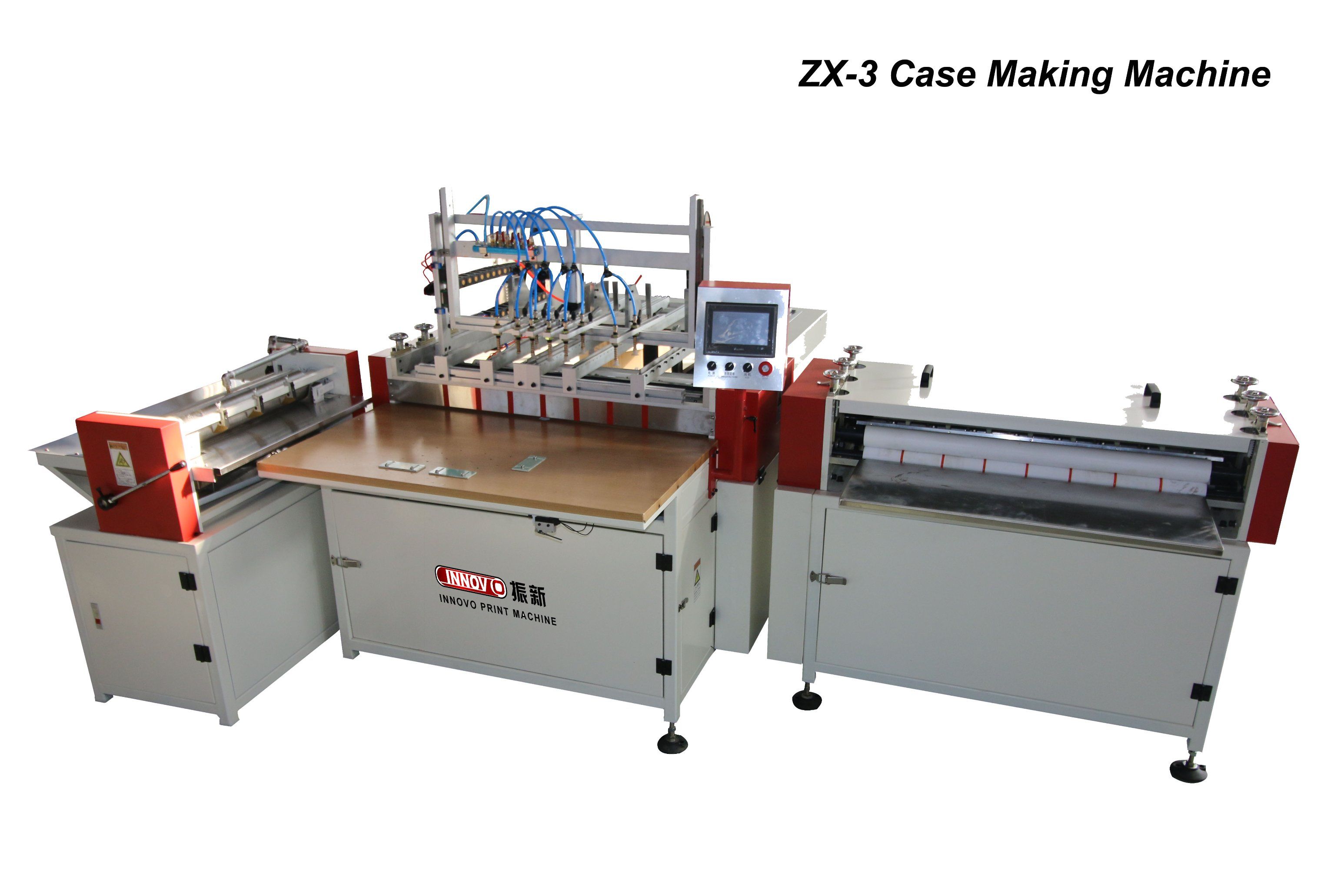

Zx-3 Book Case Making Machine

Zx-3 Book Case Making Machine
Price: US $ 18000-19000set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: PKD-800
Case Size(Max): 800*450mm
Case Size(Min): 150*150mm
Work Speed: 10-15PCS/Minute
Paper Thickness: 80-175g
Weight: 800kg
Dimension(L*W*H): 3300*1220*1550mm

Product Description

PKD-800 case making mamchine
  1. Type: Other
  2. Condition: New
  3. Application: Machinery & Hardware
  4. Packaging Type: plywood Case
  5. Packaging Material: Paper
  6. Automatic Grade: Semi-Automatic
  7. Driven Type: Electric
  8. Voltage: 220V
  9. Power:0.75Kw
  10. Place of Origin: Zhejiang, China (Mainland)
  11. Brand Name: INNOVO
  12. Model Number: PKD-800
  13. Weight: 800 kg
  14. Dimension(L*W*H): 3300*1220*1550mm
  15. Plywood case dimension:3450*1450*1700mm
  16. color: white and red
Packaging Details:plywood case
Delivery Detail:about 20 days after received the payment
Specifications
The case making machine is mostly applicable to various notebook, photo book (photo album), folder, certificate, hardcover book.
This machine is the most applicable to various notebook, photo book (photo album), folder, certificate, hardcover book ,shell for folding(covering) and pressing, twice finished on both sides, one operator, forthright, Covers an area of small space , is post-press especially digital post-press  good partner.
Feature
Upper side glue when paper cross the roller
Glue pump can cycle glue when drop down on the inox roller
Large capacity glue tank
Automatically clean the roller if not work
Adopting PLC operating system
Can use hot glue, white latex
Replace products, adjustable machine speed
Feeder position
Working details
This machine need 2 worker at same time.
Firstly: one person stand in the front of plate glue the cover paper with Glue Machine on upper side;
Secondly: sucker move the cardboard to the glued cover paper automatically;
Thirdly:the same person convey the fixed unit to fold 2 book side by put into the plate,move to the back of sucker
Fourthly:the person stand in back of sucker move the 2 sides folded cover to ZXSCM 500 I Book Hard cover Double-side edge folding machine,Then folding the other 2 sides,push out,finished.

Technical parameter
ModelPKD-800
Power Supply220V/50HZ
Mainframe power0.75kw
Work Speed10-15PCS/minute
Case size(max)800*450mm
Case size(min)150*150mm
Machine Dimensions(L×W×H)3300*1220*1550mm
Paper thickness80-175g

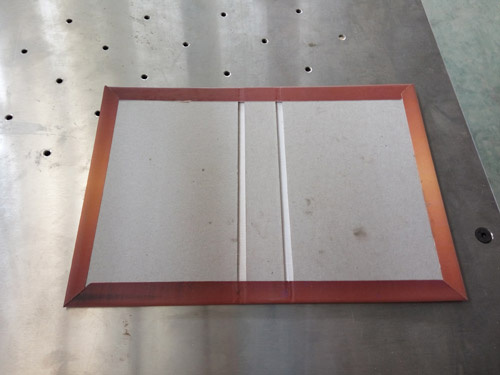

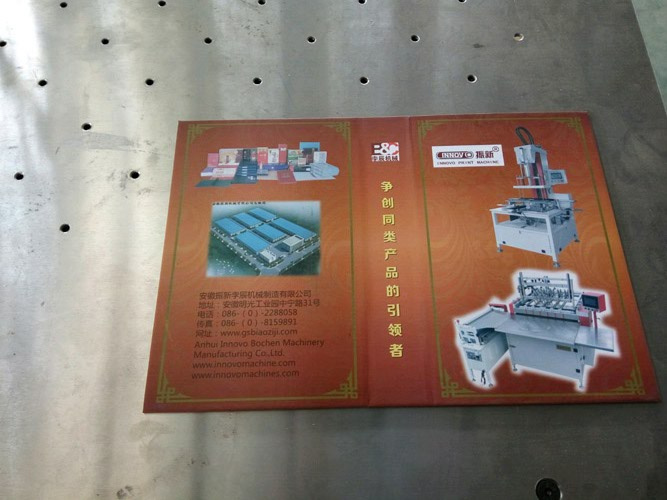

Sample photoes
