| Prod Model: |
YG-2621 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Glass Thickness: |
1.5-19mm |
| Cutting Speed: |
2-3PCS/Min |
| Worker: |
1-2person |
| Type: |
Glass Cutting Machine |
| Certification: |
CE |
| Control System: |
PLC |
Product Description

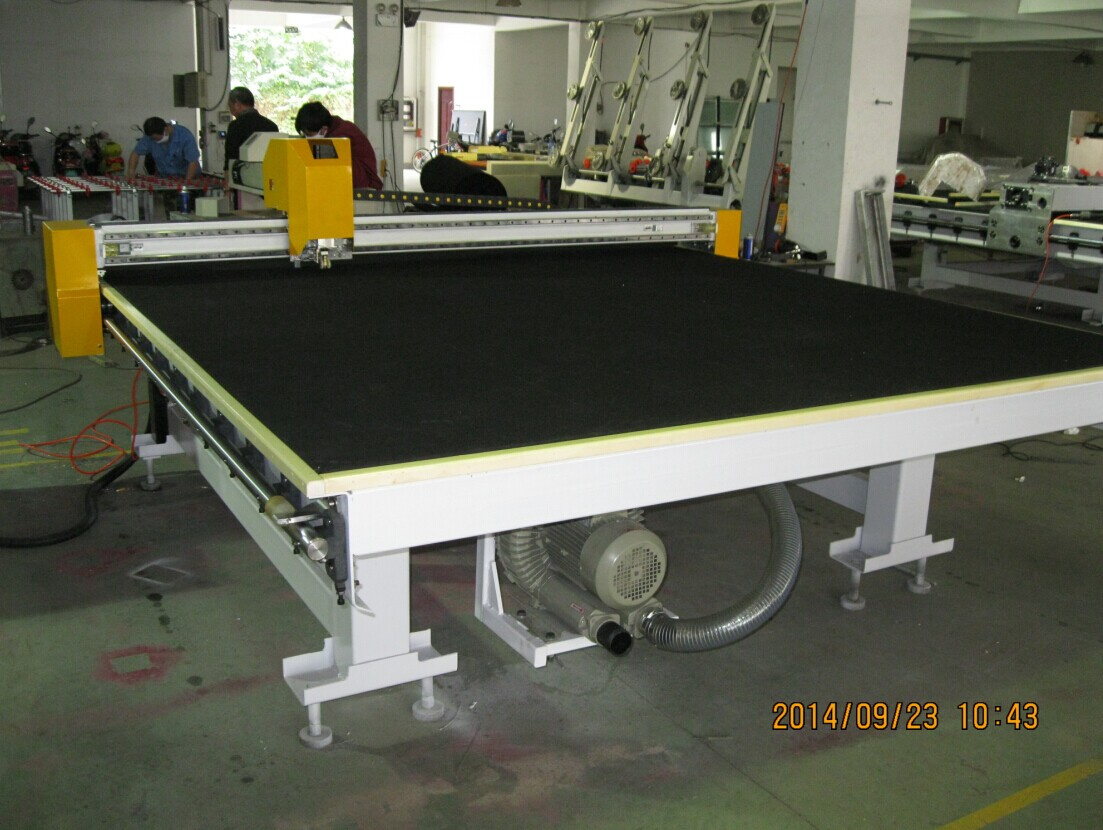

YG-2621-CNC FULLY AUTOMATIC GLASS CUTTING TABLE:
MAX. GLASS SIZE: 2000X2500MM
MIN. GLASS SIZE: 20X20MM
GLASS THICKNESS: 3-25MM
WEIGHT(ABOUT): 1500KGS
MACHINE SIZE: 3230X2620X1275MM

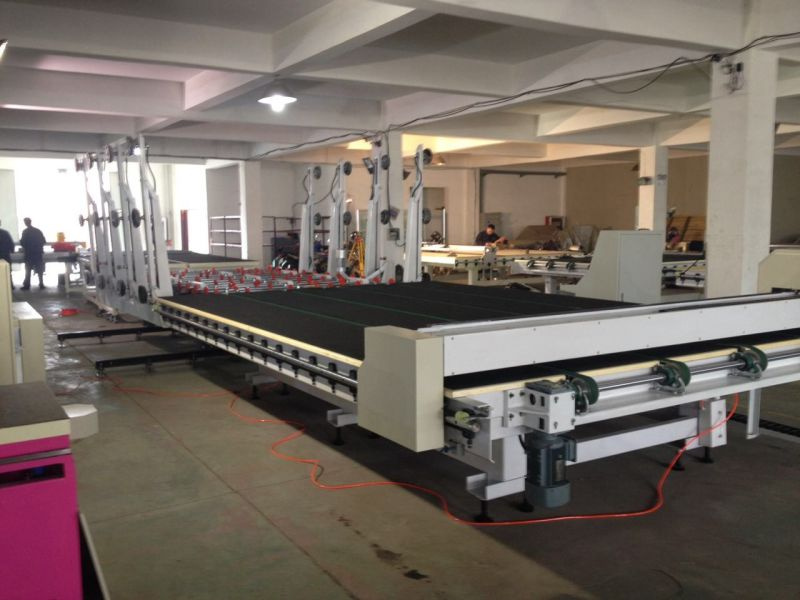

VOLTAGE: 220V 50HZ 3 PHASESY-4028 Automatic CNC Automatic Glass Cutting Line:
Name: SY-4028 CNC Automacit Glass Cutting Line:
Equipment consists:
SY-4028 Dual simplex bit automatic glass loading machine (Mechanical)+SY-4028 Automacit cutting machine + SY-0428 Air flotation breaking table.
Equipment performance:
SY-4028 Dual simplex bit automatic glass loading machine
Equipment consists:
Equiment main frame/equipment walking system/equipment transfer system/vacuum
Adsorption system/mechanical turning system/high-low voltage electrical system/
Power-off protection system/programm control system.
1.2 Machine layout:
1), Flip sprocket chain: Special high-precision strengthen form.
2), Transmission roller: Import PU material.
3), Vacuum sucker: Imported Ding-qing rubber material (Double absorption structure).
4), Transport/flip motor: Taiwan Chengbang motor
5), Vacuum pump: Sino-German brand "PUXU".
1.3 Electrical apparatus element
1), PLC Controller: Imported LS
2), Transducer: Taida
3), Photoelectric switch: Guangchuan
4), Approach switch: Omron
5), Relay: Omron or Schneider
6), Control electric lam: Flexible shield electric lam.
7), Contactor: Schneider
8), Pneumatic elements: Taiwan AiroDK.
9), Pressor sensor: Japanese SMC
Guarantee & Aftersales service:
1)Guarantee the complete machine for one year, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly english manual for machine using and maintaining.
