| Prod Model: |
X6336 |
| Colour: |
Blue and White |
| Achieve Standard: |
Ce Standard |
| Pass: |
9001: 2000 |
| Brand: |
Dxmc |
| Automatic Grade: |
Semiautomatic |
| Precision: |
Precision |
| Type: |
Vertical and Horizontal Turret Milling Machine |
| Object: |
Metal |
| Structure: |
Vertidal |
| Controlling Mode: |
Normal |
Product Description

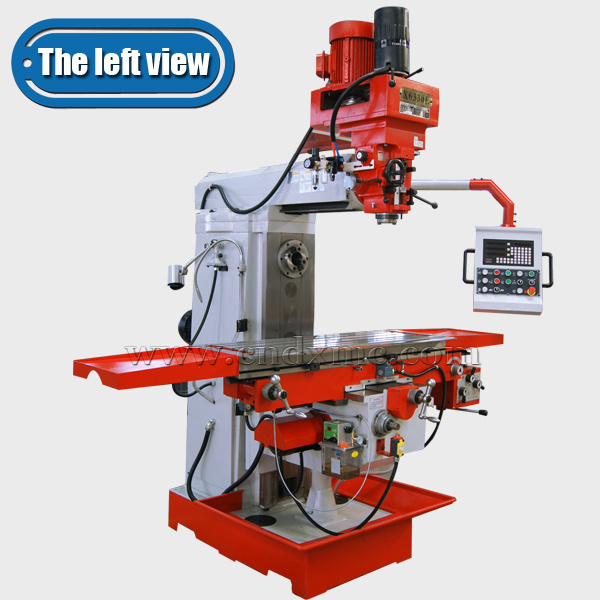

Cheap slotting head table top vertical milling copy X6336 (CE)
Advantage
1,Industrial hobbies milling machine
2,Cast iron after artificial aging treatment, high precision,long service life.
3,Gear power feed,motorized lift on Z axis.
4,Hardening treatment, rectangular guideway.
5,Equipped with manual lubricating device, the lubrication on the lead screw and guideway.
6,The longer slide, stability is good.
Specification
milling and drilling machine
| Specifications | X6336 |
| Spindle taper | ISO40 (V) ISO50(H) |
| Distance from vertical spindle to worktable(mm) | 135-485 |
| Distance from vertical spindle to worktable(mm) | 0-350 |
| Spindle speed range(r.p.m) | 68-7200V 60-1800 H |
| Table size | 1250*360 |
| Table travel | 1000*300*400 |
| Main motor(kw) | 4.0( H) 3.7/2(V) |
| Arm travel(mm) | 500 |
| Overall dimensions(mm) | 2220×1790×2360 |
| N.W/G.W (kg) | 2500/2700 |
Company overview
Tengzhou Sanzhong Machinery Manufacture Co.,ltd. is a highly professional and experienced manufacturer of milling machine, vertical and horizontal universal milling machine, Vertical and horizontal turret milling machine, Drilling and Milling Machine in China. We manufacture and supply a wide range of milling machine to customers across the world.
Our products include: Milling Machine | Vertical and horizontal universal milling machine | Vertical and horizontal turret milling machine | Vertical universal milling machine | Vertcial turret milling machine | Knee type milling machine | Miller |Milling Machinery | Drilling and Milling Machine | multi-functional milling machine | bridgeport milling machine | Mini milling machine | Metal milling machine | Machine tool
After-sale Service
Technical support online service provided.
Technical files service provided.
Machine operation videoprovided
On-site training service provided.
Spare parts replacement and repair service provided.
All of the questions will be replied within 24 hours
Tengzhou Sanzhong Machinery Manufacture Co., Ltd. is a highly professional and experienced manufacturer of milling machine, vertical and horizontal universal milling machine, Vertical and horizontal turret milling machine, Drilling and Milling Machine in China. We manufacture and supply a wide range of milling machine to customers across the world.
Our products include:
Milling Machine
Universal milling machine
Turret milling machine
Drilling and milling machine
Knee type milling machine
Shaper machine
Radial drilling machine
Lathe machine
CNC machining center
Located in a famous machine tool town Tengzhou Shandong Province. We are professional in developing, manufacturing and selling milling machine over 10 years. All the milling machines are scientifically designed, with best appearance, exquisite workmanship and advanced functions. Our milling machines are very popular with customers. Replying on regional advantages, we successfully create a batch of good-quality and competitively priced milling machines.
Our factory has advanced technologies, advanced milling machines, universal milling machine, turret milling machinem, Drilling and milling machine, and other advanced equipment. Our factory adheres to the principle of "market-oriented, science and technology", taking development as the center. We provide excellent milling machine and sincere service, together with fast delivery. Welcome customers at home and abroad to cooperate with us for a brilliant future!
