| Prod Model: |
SSC-E-237 |
| Power Source: |
Electricity |
| Power And Plug: |
as Per Your Country |
| OEM Service: |
Available |
| Warranty: |
12 Months |
| Accessories: |
1% for Free |
| Structure: |
Safe, Stable and Durable |
| Type: |
Operating Table |
| Certification: |
ISO13485 |
| LCD Display: |
With LCD Display |
| Source: |
Air |
| Anesthesia: |
Closed Circuit |
| Type Of Operating Light: |
Double Operating Light |
| Kind: |
for General Operation |
| Group: |
All |
Product Description

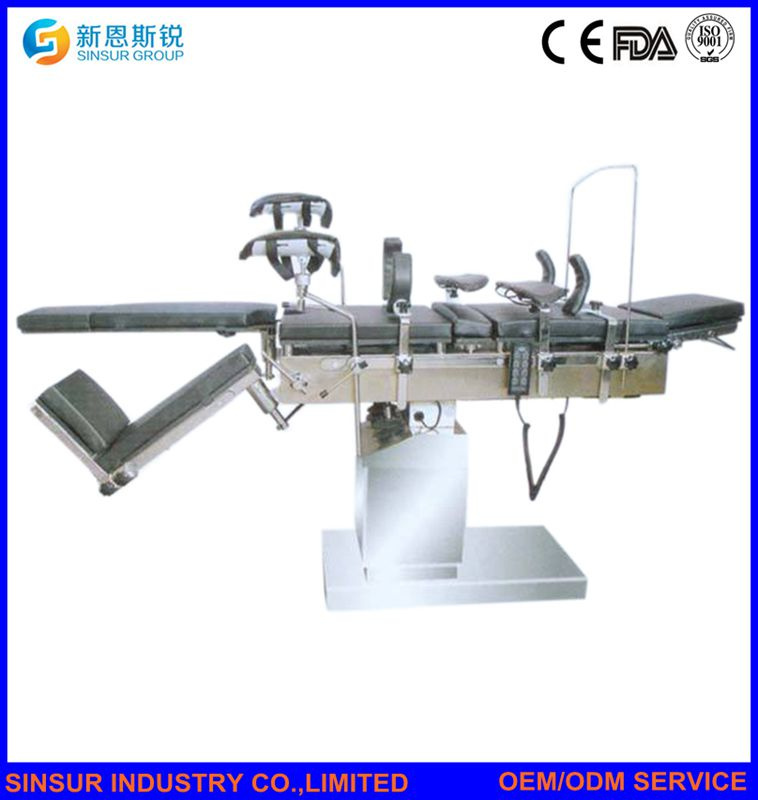

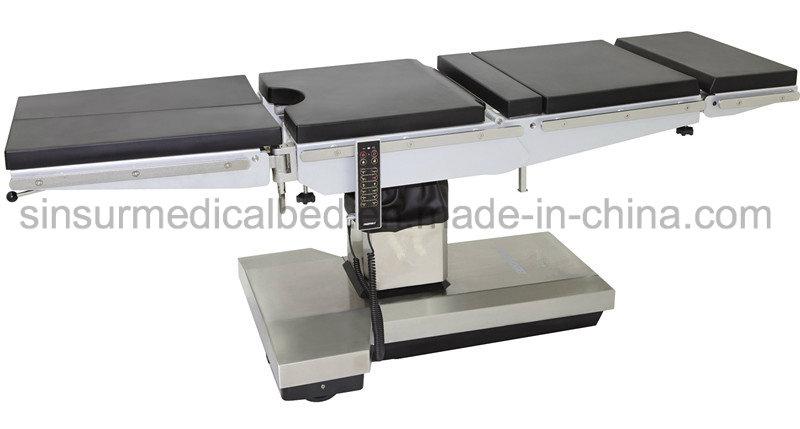

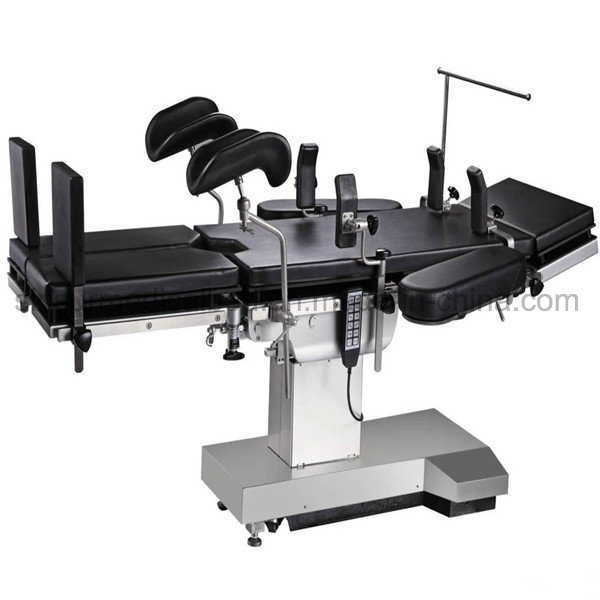

This operating table is designed for surgical procedures of the head, neck, thorax, abdomen perineum and extremities as well as gynecological, obstetrical, urological, otorhinolaryngology and cranial operations.
Our advantage
• Leg section can be rotated, opened, disassembled and adjusted easily
• The bed surface is made of high strength plastic plate, which can move forward and backward and is suitable for X-ray examination
• With 24V direct supply, the table is safe and reliable. All the adjustment of the table, like elevation, lowering, reversed Trendelenburg, lateral tilt, etc, are all effected by electric button
• Metal piece made from stainless steel, anti-rust, and easy to clean
• Integrated with rechargeable battery which can support 15 days operations
Dimension
| Overall length | 2100mm |
| Width | 500mm |
| Head rest | 280*325mm |
| Back section | 480*530mm |
| Kidney bridge | 100*480mm |
| Seat section | 480*530mm |
| Leg section | 236*510mm |
| Foot rest | 180*273mm |
| Table top from floor | 750mm Min. |
| Table top from floor | 1000mm Max. |
Range of movement
| Max. reversed Trendelenburg | ≥15º |
| Max. Trendelenburg | ≥20º |
| Max. Lateral Tilt | ≥15º |
Adjustment of sections
| Head rest-raised from horizon | ≥45º |
| Head rest-lowered from horizon | ≥90º |
| Back section-raised from horizon | ≥45º |
| Leg section-lowered from horizon | ≥90º |
| Leg section-opened | ≥90º |
| Backward and Forward movements | ≥400mm |
| Kidney Bridge elevation | ≥80mm |
| Safe working load capacity | ≤135kg |
Sinsur Industry Co., Limited, is a professional supplier of medical equipments, specialized in medical beds, operating table, shadowless lamp in operating room, and medical trolleys, etc since the year 2010 with a high international commercial reputation. We have exported to many countries and now we are very familiar with these countries commoercial habits.
We have our own factory located in Jining, Shandong with our own professional and efficient R&D team which guarantees all your requirements realized and make OEM products according to your ideas. Our workers are well trained and professional in producing medical instruments. Our sales team, is not only professional in international trade, but they are also experts in medical beds, operating table, shadowless lamp, etc. We are sure, we can give you a one-stop, full satisfaction trading experience.
We have passed ISO, CE and FDA certifications and we always adhere to "we care, you are at ease" principle. Contact us now and let's do something perfect.
