Name: Wood Door Machine Production Line / 9kw Italy Hsd Spindle CNC Wood Cutting Machine
Brand: thisfurniture.com
SKU: 712717972
Availability: InStock
Rating: 4.6 (104 reviews)

Price:	Negotiable/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JCT1325L
Processing:	Drilling Machine
Spindle:	9kw Itlay Hsd Air Cooling Spindle
Motor:	Japan Yaskawa Servo Motor and Servo Driver
Control:	Synthec or Ncstudio
Table:	Vacuum Suction
Size:	13002500300 mm (Optional)
X.Y Structure:	Gear Wheel Transmission, Hiwin Linear Guide Rail
Z Stucture:	Hiwin Ball Screw, Hiwin Guide Rail
Software:	Artcam / Type 3 / Powermill
Working Speed:	Max 30 M/Min
Spindle Layout:	Vertical
Spindle Number:	Single-Spindle
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	SGS

Product Description

cheap price wood door machine production line / 9KW ITALY HSD spindle cnc wood cutting machine

For cutting/engraving foam ,plastic,stone,wood,aluminum,Alucbond,ACP,copper,PVC ,glass etc

For making kitchen top / counter top / table top / basin table etc

For making furniture / mould / releif / sculpture / artwork / decoration / craft / mold etc

1.Technical Specifications

Description	Parameters
Model	JCT1325L
X,Y,Z axis working area	13002500300mm
Whole structure	Welded Steel gantry structure
Table surface	Clamp & Vaccum suction table
X,Y,Z structure	Taiwan HIWIN Square linear guide rail
X,Y structure	Rack and pinion transmission,high speed and more stable; Y -double motor drive
Z structure	Imported ball screw, high precision
Max. idling speed	50m/min
Max. working speed	30m/min
Repositioning Accuracy	±0.05mm
X Y Z working Accuracy	< 0.02mm
Spindle	9KW ITALY HSD ATC air-cooling spindle
Spindle rotating speed	0-24000rpm/min
Tool magazine	Linear ATC system, with 8pcs tool magazine
Diameter of tools	Φ3.175 -Φ20
Collet size	ER 32
Operation language	G code (plt, mmg, uoo, bmp)
Driving system	Japan servo motor and driver
Operating system	Ncstudio control system
Working voltage	AC380V, 3ph, 50-60Hz
Software	UcancamV8 / Type3 / Artcam software (option)

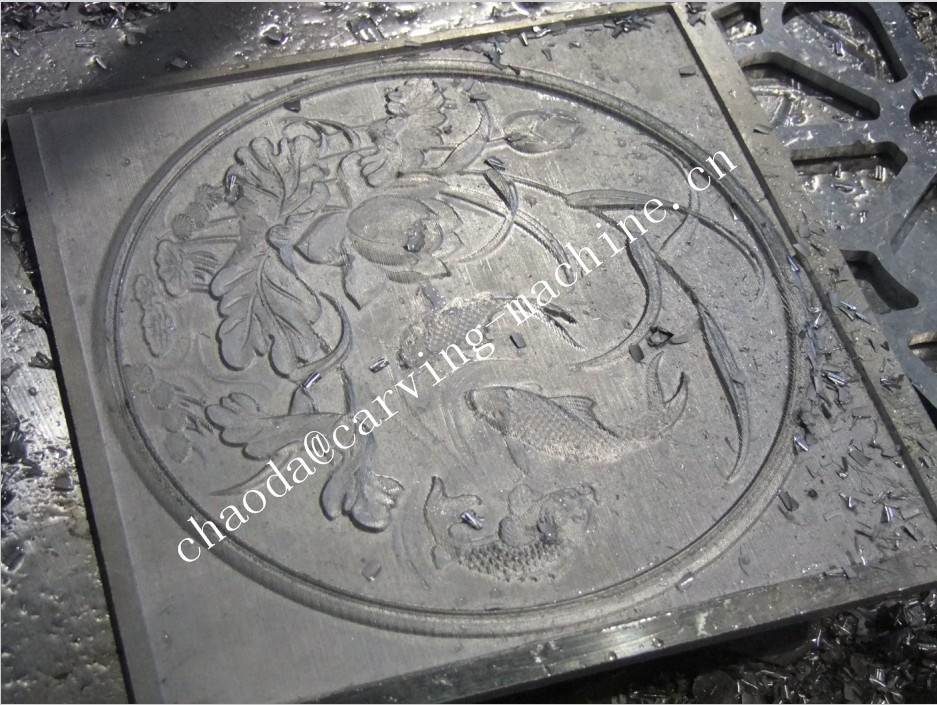

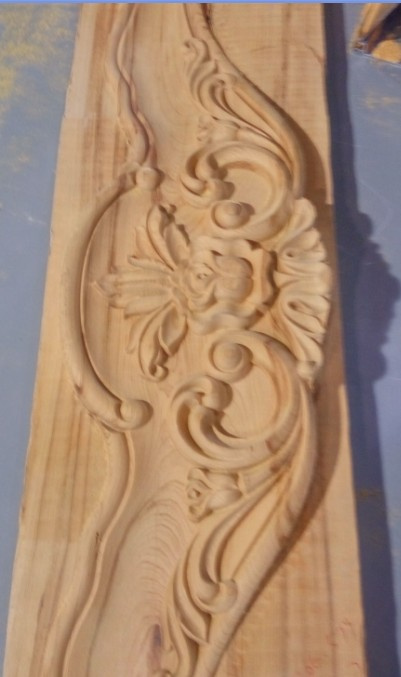

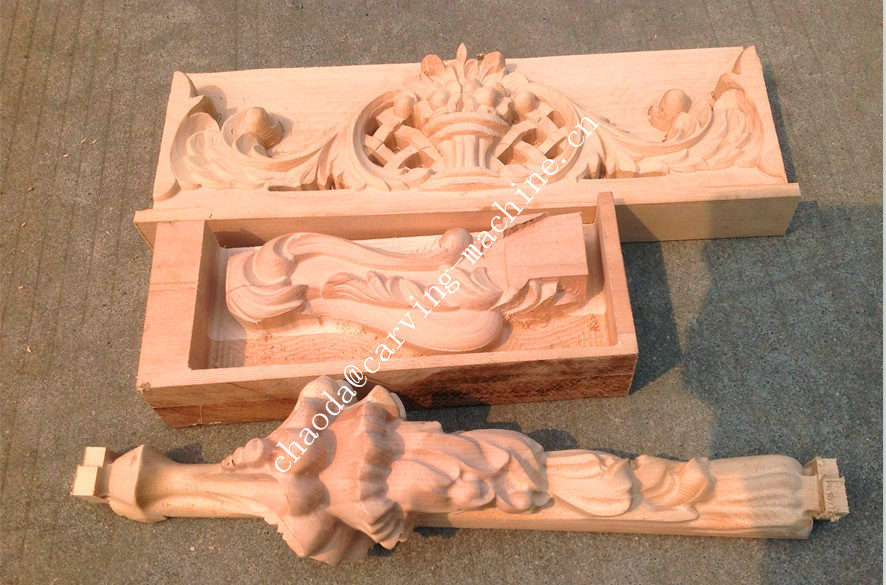

2.Sample photo

A Factory You Can Trust:

Located in Linyi City, Shandong Province, Linyi CHAODA International CNC Technology Co., Ltd is a professional manufacturer of CNC Router Machine, Laser Engraving and Cutting Machine, Plasma Metal Cutting Machine, 3D Scanner, vacuum Forming Machine, etc.

Our factory was established in 2002 and covers 40000 Square meters.

We have experienced and professional engineers who devote themselves to machines' research, development, production, and after- sale service. Our machines have won praise from customers worldwide and with very good reputation in this field.

Quality and Safety:

We have implemented a strict and complete quality control system, which ensures that each machine can meet quality requirements of customers. Besides, all of our machines have been strictly inspected before shipment. Our machines have attained CE certificate with Quality Test report & BV certification.

Your satisfaction, Our eternal pursuit!

Our aim is to help customers realize their goals. We are making great efforts to achieve mutual benefit relationship and sincerely hope to cooperate with you!
