| Prod Model: |
HJ-A001024 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |

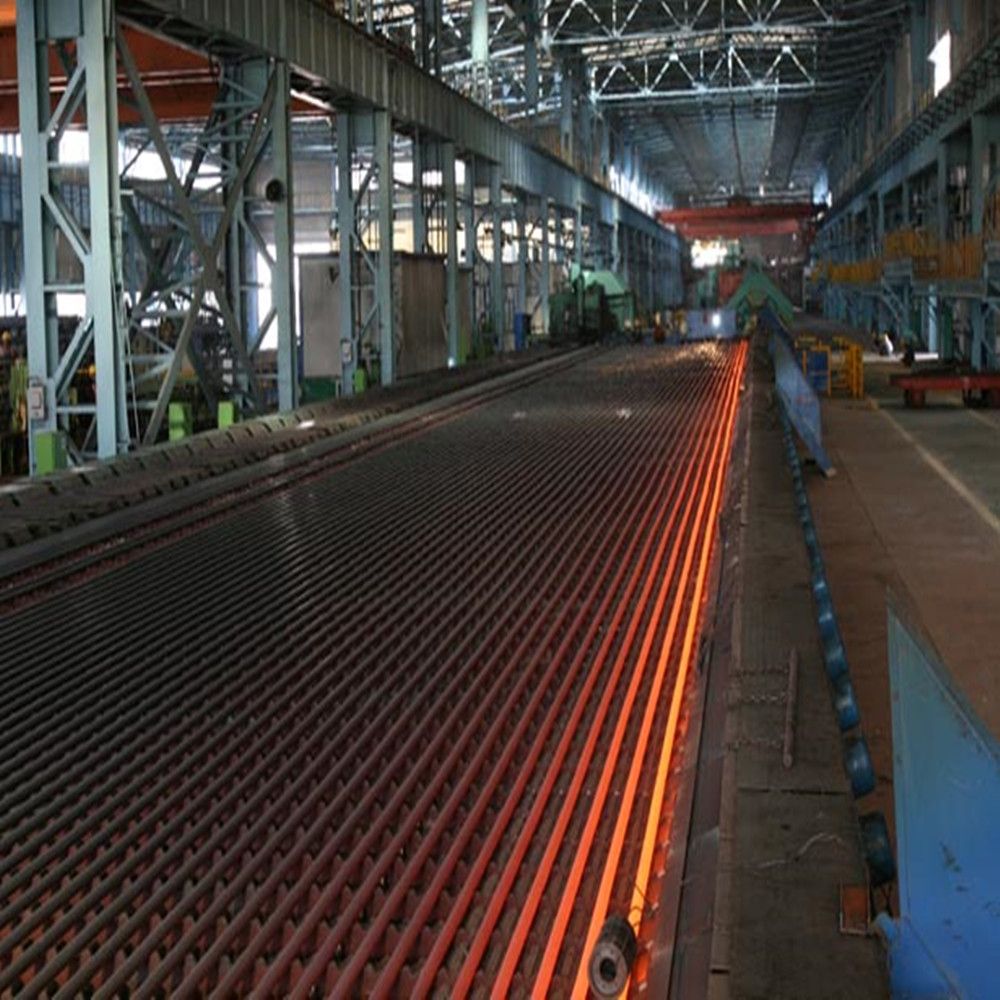

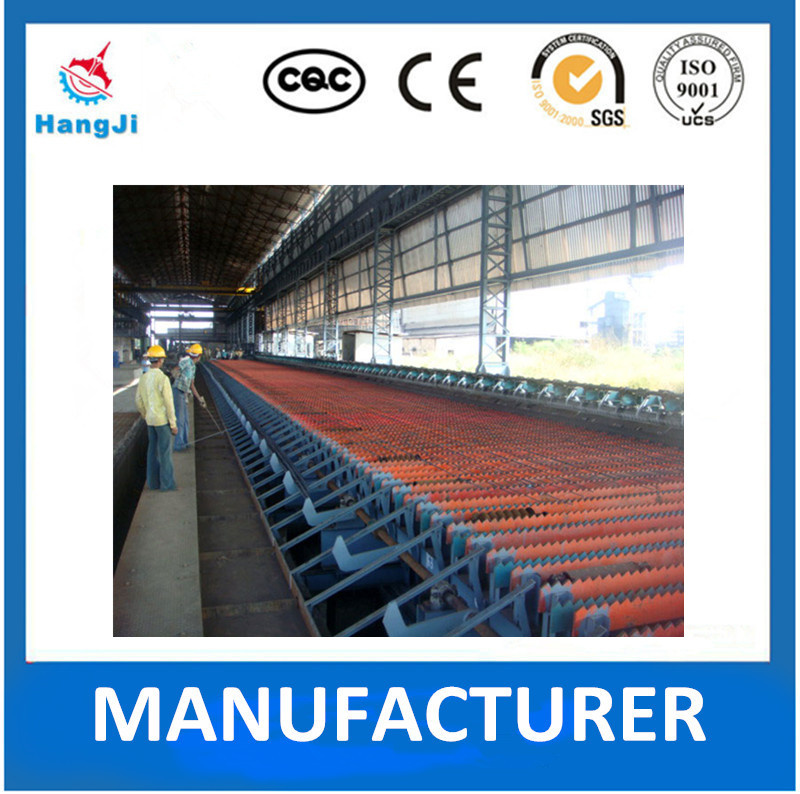

Cooling Bed |
| Warranty: |
1-3years |
| Color: |
According to Customer |
| After Sales Service Provided: |
Supply by Seller |
| Steel To Be Processed: |
Bar,Rebar,Wire Rod,Section Steel |
| Type: |
Auxiliary Equipment |
| Certification: |
CE |
Product Description
1.Standard air cooling roller bed
1.1 : Function: with different cooling speed,control and cool the coil according to the metallographic structure and mechanical property of the product requirements, then sent the coil of overlapping to coil collection station.
1.2, Steyr air cooling roller bed 1set
Type and function: roller type chain drive conveyor.Convey the wire rod in the form of loose coil to the coil gathering drum.Produce the expected metallurgical properties and mechanical properties of the wire with standard and slow cooling mode. 1) standard cooling mode: roller bed speed is quick, wire rod is loose-loop model, roller bed without insulation cover, forced air cooling. 2) slow cooling mode: slower roller bed,with insulation cover,without air cooling.
1.3 Technical parameters
Total Length: 90000mm
Each cooling section length: 6000mm~9200mm
Lifting adjusting device of the entrance section :
Lifting Stroke about 609.6mm
Primary air cooling segment quantity 7
The main air cooling section of each length 9252 mm
Air cooling section with insulation cover 1-8
Insulation cover quantity 16
Insulation cover length 4.6 m
Open insulation cover way pneumatic
Cooling rate (delayed cooling): 0.3 to 17 ºC
Lubrication:roller bearing manual grease lubrication.
High-temperature region with a special lubricating medium
Chain: Manual thin oil lubrication , other mobile device manual grease lubrication
Roller diameter: ¢121mm
Effective length of roller body: 1400mm
Roller gap: 250mm
Roller line speed: 0.25~2m/s
Highest temperature of roller table allows to bear:900ºC
Roller table transmission:
AC motor: Y series motor(10-16 stands)
Motor power: 15KW
Revolving speed: 1500rpm/min
Cooling fan:
quantity: 8 stands
Flow: 94000~140000m³/h
Full pressure: 4300~3900Pa
Required power: 165~211KW
Motor model: 4P-220
2. Coil gathering station
2.1 Coil gathering drum
Function: gather forming wire coil reel in the gathering drum. When a roll of collected coil has been removed, offer a buffer space. Then allow rolling mills rolling following the production rhythm.
Technical parameters:
Working pressure of pneumatic system 0.5 MPa
Separating claw cylinder: piston diameter Φ200mm,stroke 320mm
Hydraulic cylinder Φ40XΦ28, stroke 290mm
Inner diameter of the reform drum: 1250mm
Center drum lift: 120mm
Max temperature of coil forming: 600ºC
Capacity of equipment: ¢5.0~¢25mm
Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd. is a professional manufacturer of high-speed wire-rod, high-speed tray screw steel, hard-faced gearbox and relative homemade spare parts of all kinds. We have been in the line over 22 years and gather lots of technical and production experiences. Depending on the advanced techniques and constantly absorbing the hi-tech of domestic and international markets, we choose high technicians and completely precision equipment from domestic and overseas markets.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical and mechanical industries.
Our company uses the specific manufacture way to achieve the excellent product with the best quality. Our purpose is to satisfy our clients. Our high-quality products have passed ISO9001 certificate and we update our level to international standards. According to GB/T19001, we build the metallurgical high speed finishing wire mill and hard-faced gearboxes quality administrational system.
Our trademark "Hangji" is the famous brand in China. In the meantime, short-stress line bar mil, high-speed wire-rod finishing rolling mill and finishing rolling mill have acquired the national patents.
High-speed wire-rod production lines include heating furnace, roughing finishing rolling mill, middle finishing rolling mill, pre-finishing rolling mill, finishing rolling mill, pinch roll, laying head, picker and other high precision equipment. It is the technology-intensive product that combines modern rolling techniques with machine, electron, hydraumatic, pneumatic and instrument. Only a few countries in the world can offer the complex, high precision and difficult technology.
Our company has built cooperative relationships with SMS Siemag AG, DEMAG and JPMorgan Chase, and digested and absorbed the advanced product manufacture techniques. We integrate the processing, test methods and special manufacture methods to build our own administration system, quality system and techniques system. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We look forward to cooperate with you.
