| Prod Model: |
BXGF 18-18-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Whisky Bottling Machine |
| Capacity: |
6000bph(500ml) |
| Washing Heads: |
18 |
| Filling Heads: |
18 |
| Capping Heads: |
6 |
| Cap: |
Ropp Cap/Aluminum |
| Voltage: |
380V 50Hz |
| Machine Power: |
3kw |
| Weight: |
3500kg |
| After-Sales Service Provided: |
Engineers Service Machinery Overseas |
| Automatic Grade: |
Automatic |
| Filling Principle: |
Vacuum |
| Structure: |
Rotary |
| Feed Cylinder Structure: |
Single-Room Feeding |
| Material Type: |
Liquid |
| Type: |
Volumetric Filling Machine |
| Filling Valve Head: |
Multi-Head |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Packaging Type: |
Bottle |
| Dosing Device: |
Rotor |
| Packaging Material: |
Glass |
Product Description

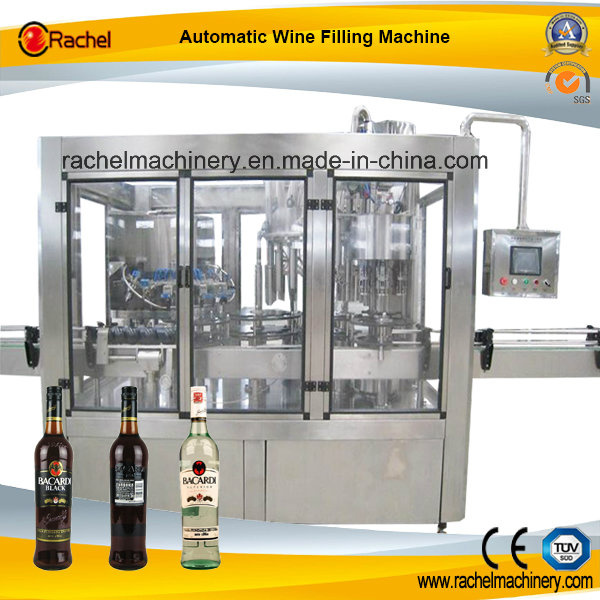

The machine is mainly applied for the filling of wine and sauce. Integrating with washing, filling and sealing, it realizes full automation in the whole process, suitable for glass bottle and aluminum anti-theft cap filling of wine, grape wine and sauce. The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new isobaric pressure filling, stable and reliable. Compared with the machines of the same specification, the productivity and benefit of this machine is larger.
The machine adopts advanced OMRON programmable logic controller (PLC) to control the automatic running of the machine. The input bottle chain adopts speed control by frequency variation; the output bottle chain adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.
Item | BXGF 8-6-1 | BXGF14-12-4 | BXGF 16-16-5 | BXGF 18-18-6 | BXGF 24-24-8 | BXGF32-32-10 |
| Capacity | 1000bph(500ml) | 2000bph(500ml) | 5000bph(500ml) | 6000bph(500ml) | 8000bph(500ml) | 12000bph(500ml) |
| Rising heads | 8 | 14 | 16 | 18 | 24 | 32 |
| Filling heads | 6 | 12 | 16 | 18 | 24 | 2 |
| Capping heads | 1 | 4 | 5 | 6 | 8 | 10 |
| Bottle Diameter | Commonly 50-110mm (can adjustable) |
| Bottle Height | Commonly 150-340mm(can adjustable) |
| Bottle | Glass or Plastic bottle |
| Rising pressure | 0.2-0.25Mpa |
| Overall size | 2030*1700*2350 | 2080*1700*2350 | 2130*1700*2350 | 2450*1800*2350 | 2780*2200*2350 | 3600*2650*2350 |
| Weight | 3.1t | 3.2t | 3.3t | 3.5t | 4.5t | 5.5t
|
