Well Outside Display Making by Vacuum Membrane Press Machine
| Price: |
US $ 5600-5900/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
YN-1325XYC |
| Color: |
Customed |
| Main Markets: |
Europe, USA, Middle East, Southeast Asia |
| Delivery Detail: |
3 Days Delivery |
| Keyword: |
SPA Vacuum Forming Machine |
| Package: |
Plywood Case |
| Type: |
Extrusion Blow Molding Machine |
| Raw Material: |
PET |
| Making Method Of Parison: |
Extrusion-Blow Molding |
| Automation: |
Automatic |
| Computerized: |
Non-Computerized |
| Certification: |
ISO9001:2008 |
Product Description

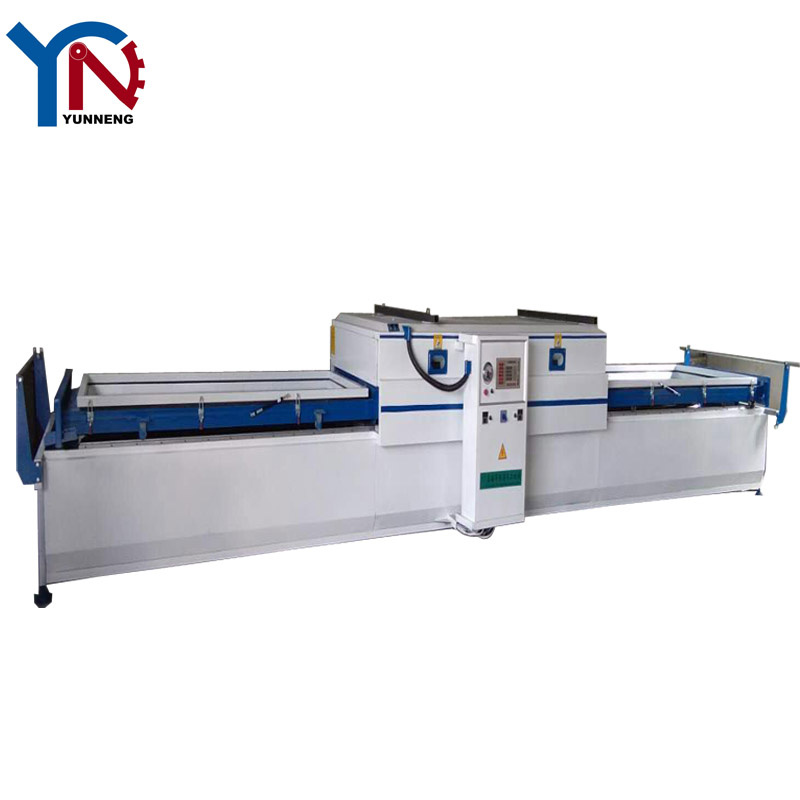

Well Outside Display Making by Vacuum Membrane Press Machine
| Working table size | 2500*1100mm +2500*1300mm(Sizes to be customized) |
| Total motor power | 20kw |
| Power supply | 380V 50Hz 3P(also can be changed) |
| Working air pressure | -0.7~-0.1Mpa |
| Net weight | ≈1200kg |
| Gross weight | ≈1300kg |

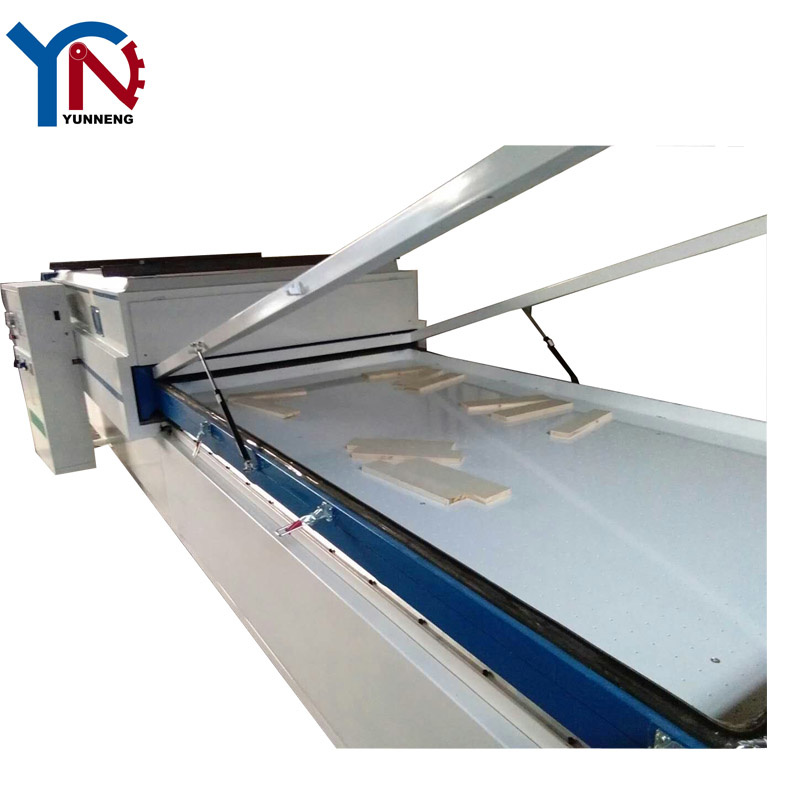

1 Two worktables and an independent temperature control box to save space.

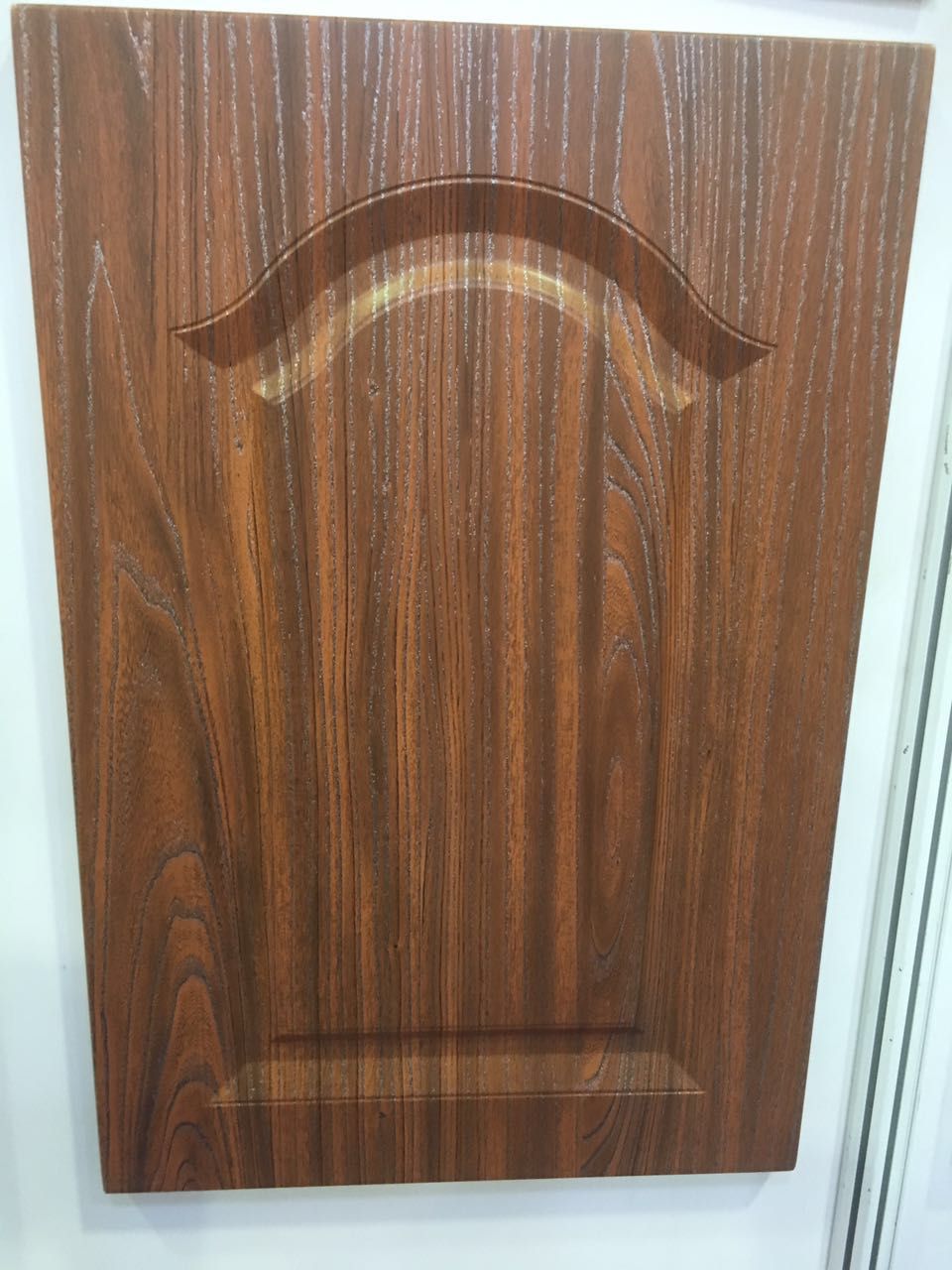

2 The automatic door panel cabinet laminater is highlyautomated.Heating, the vacuum coating, the cooling molding is completed at one time, saving labor and saving costs.
3 Direct connect vacuum pump, low noise, small size, high technology content.
4 The heating space sealing performance is high, the high constant temperature heating furnace is adopted, the actual power consumption is reduced, and the production cost is reduced.
5 A high strength steel plate is used on the table. It will not be deformed at high temperature and is durable . The heating box is heated by the far infrared heating tube, the heating speed is fast, the cost is saved, the time and the labor are saved.
.
Weifang Yunneng CNC Equipments Co., Ltd is a new and high technology enterprise in China. Our company is specialized in computer software development and technology transfer, laser equipment. Undertake precise laser processing business.
Relying on the China from universities and research institutions, we are the main business agent of the optical equipment such as: metal laser marking machine, laser engraving machine, laser metal cutting machine, laser welding machine, laser die board making machine ,cnc router channel letter bending machine and vacuum forming machine. Our products can be applied to the fields of hardware auto parts, clothing, leathers, toys, electronic appliance, models, process advertising, stones, decorations, plastics, glass industry and others.
Yunneng insists on "quality wins the market and the quality service wins the customers". Complying with European CE certification, our products sell well in over 30 countries and regions, such as Brazil, Mexico, Belgium, Iran, Thailand, Korea, Vietnam, the USA, Germany, Italy, Australia, Pakistan, Egypt, Spain, South Africa and Lithuania, etc.
Thermoforming is a manufacturing process where a plastic sheet is heated to a pliable forming temperature, formed to a specific shape in a mold, and trimmed to create a usable product. The sheet, or "film" when referring to thinner gauges and certain material types, is heated in an oven to a high-enough temperature that permits it to be stretched into or onto a mold and cooled to a finished shape. Its simplified version is vacuum forming.
In its simplest form, a small tabletop or lab size machine can be used to heat small cut sections of plastic sheet and stretch it over a mold using vacuum. This method is often used for sample and prototype parts. In complex and high-volume applications, very large production machines are utilized to heat and form the plastic sheet and trim the formed parts from the sheet in a continuous high-speed process, and can produce many thousands of finished parts per hour depending on the machine and mold size and the size of the parts being formed.
Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries. Thick-gauge thermoforming includes parts as diverse as vehicle door and dash panels, refrigerator liners, utility vehicle beds, and plastic pallets.
In the most common method of high-volume, continuous thermoforming of thin-gauge products, plastic sheet is fed from a roll or from an extruder into a set of indexing chains that incorporate pins, or spikes, that pierce the sheet and transport it through an oven for heating to forming temperature. The heated sheet then indexes into a form station where a mating mold and pressure-box close on the sheet, with vacuum then applied to remove trapped air and to pull the material into or onto the mold along with pressurized air to form the plastic to the detailed shape of the mold. (Plug-assists are typically used in addition to vacuum in the case of taller, deeper-draw formed parts in order to provide the needed material distribution and thicknesses in the finished parts.) After a short form cycle, a burst of reverse air pressure is actuated from the vacuum side of the mold as the form tooling opens, commonly referred to as air-eject, to break the vacuum and assist the formed parts off of, or out of, the mold. A stripper plate may also be utilized on the mold as it opens for ejection of more detailed parts or those with negative-draft, undercut areas. The sheet containing the formed parts then indexes into a trim station on the same machine, where a die cuts the parts from the remaining sheet web, or indexes into a separate trim press where the formed parts are trimmed. The sheet web remaining after the formed parts are trimmed is typically wound onto a take-up reel or fed into an inline granulator for recycling.
Most thermoforming companies recycle their scrap and waste plastic, either by compressing in a baling machine or by feeding into a granulator (grinder) and producing ground flake, for sale to reprocessing companies or re-use in their own facility. Frequently, scrap and waste plastic from the thermoforming process is converted back into extruded sheet for forming again.
Weifang Yunneng CNC Equipments Co., Ltd is a new and high technology enterprise in China. Our company is specialized in computer software development and technology transfer, laser equipment. Undertake precise laser processing business.
Relying on the China from universities and research institutions, we are the main business agent of the optical equipment such as: Metal laser marking machine, laser engraving machine, laser metal cutting machine, laser welding machine, laser die board making machine, CNC router channel letter bending machine and vacuum forming machine. Our products can be applied to the fields of hardware auto parts, clothing, leathers, toys, electronic appliance, models, process advertising, stones, decorations, plastics, glass industry and others.
Yunneng insists on "quality wins the market and the quality service wins the customers". Complying with European CE certification, our products sell well in over 30 countries and regions, such as Brazil, Mexico, Belgium, Iran, Thailand, Korea, Vietnam, the USA, Germany, Italy, Australia, Pakistan, Egypt, Spain, South Africa and Lithuania.
Our success depends entirely on the satisfaction of our customers. Ensuring that you are completely happy and comfortable with your machine is always our first priority. We work tirelessly to make sure that your experience with our laser is always both professional.
