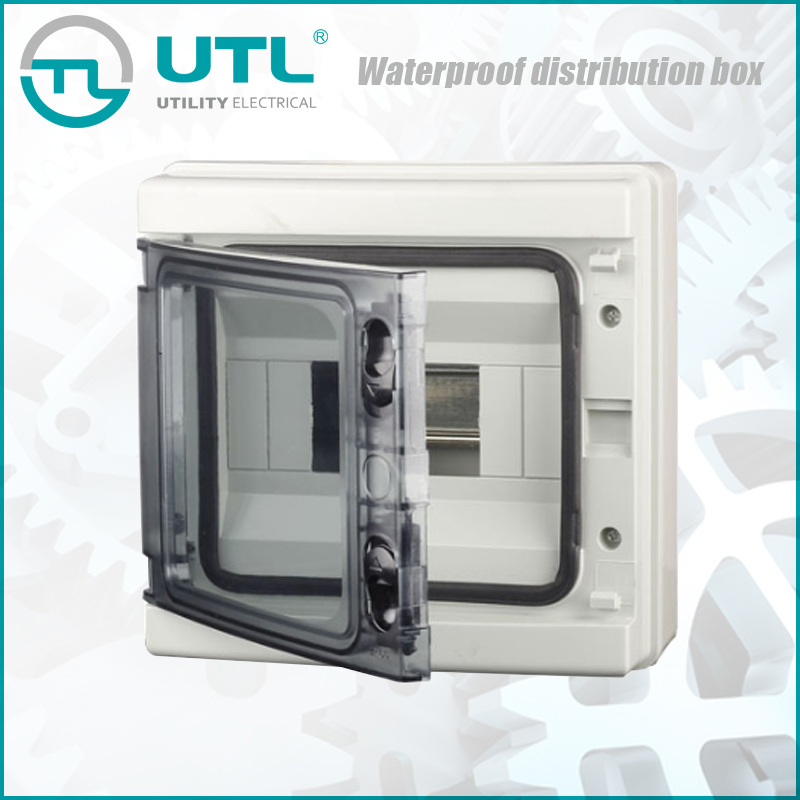

Waterproofing Plastic Electrical Distribution Cabinet Side-Opening Door

Prod Model:	UTL-HA-XX
Color:	Grey-White
MOQ:	1PCS
Lead Time:	3-5 Working Days
Cover Material:	PC in Transparent
DIN Rail:	Ns35/7.5 Provided
Type:	Distribution Metering Box
Structure:	Fixed Board
Certification:	Ce
Operation Voltage:	All Voltage
Shell Material:	ABS Plastic
Shell Protection Grade:	IP65
Brand:	Utl

Product Description

HA series-Premium grade ABS plastic Waterproofing Junction boxes, side-opening door
1. Housing: ABS (Grey white color)
2. Cover: PC (transparent in tawny color)
3. IP65 waterproofing/ dustproofing
4. NS35/7.5 DIN rail provided

Product Features:
1. Made of high-strength and refractory ABS plastic and added anti-UV material
2. With perfect explosion-proof performance for indoor & outdoor using;
3. Flame retardant level meets UL94 standard, also applies to condition of heat and splashed sparking
4. 30% more in thickness than imported, with higher robustness, and semipermanent lifespan.
5. Certificated by CE, RoHS (environment protected material), flame retardant material certification and up to IP65 waterproofing capacity.

Product Size table

HA series code	Dimension(W*L*H in mm)	Number of Way
HA-4	140*210*100	4
HA-8	210*215*100	8
HA-12	260*300*140	12
HA-18	285*410*140	18
HA-24(double-layer)	300*415*140	24

 For more details, please feel free to contact me!

Thank you and looking forward to co-operation with you soon.

Regards,

Dennis Lee
International Sales & Consultant

Utility Electrical Co., Ltd(UTL)


Company Introduction
UTILITY Electrical Co., Ltd. was established in 1990, which is specialized in the production of the wiring terminal industry, distributors, cable gland, LED indicators & push buttons; is that the industry is strong in technology, growing rapidly, very large-scale enterprises. Since its establishment, the community's concern and support, through the joint efforts of all my colleagues, more than two decades UTILITY has made remarkable achievements, from sales to the corporate image have been recognized by customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards, UTILITY painstaking research of the IEC, UL, CSA, GB, CE, CCC and other international and domestic standards for terminals, and in accordance with these standards preparing their own more stringent corporate standards, from the development, mold design, raw material procurement, production, plastic parts molding products, metal parts, to finished product assembly and quality testing, packaging, shipping, etc., each link are 'Checking at all levels' accordance with the appropriate standards by the professional staff to produce marketable, used worldwide industrial automation products as their responsibility to actively follow the introduction, learn technology, science and technology innovation internationally famous brand products, forge ahead.
The company produced dozens of series, thousands of specifications of products for our customers to provide a rich selection of product protection. The company passed the ISO9001 quality management system certification, the vast majority of products through the UL, CSA, CCC, CCS, CE certification, some products through the VDE certification, all products comply with Ro environmental requirements. Which JUT1 series, JUT2 series, JUT3 series, JUT4 series terminals, has reached the international advanced level of similar products; some products have been designated national electricity sector, the transformation of towns and recommendations for the national grid of choice.


Products are mainly exported to France, Russia, Brazil, Southeast Asia, Hong Kong and Taiwan, as an export-oriented (export 65%) of private-owned enterprises, UTILITY exposure to the international market, the market directly feel the breath, listening to our customers face to face demand and improve product design, production, operation and management of the technical content of the course, the whole process for production operations implemented scientific management. In recent years, "UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts, "UTILITY" service drew our customers appreciated. "Takeoff UTILITY, proud UTILITY man", who is the UTILITY with advanced management, strong technical strength, perfect process technology, first-class testing equipment and excellent mold processing technology to produce the premise of higher quality products, with excellent sales team, well sales network and professional services, open up the market to win a new chapter today.
