| Prod Model: |
1220X2440mm 1560X3050mm |
| Markets: |
North America,South America,Mid East |
| 1220X2440mm: |
6mm/10mm/12mm/15mm/18mm |
| 1560X3050mm: |
6mm/10mm/12mm/15mm/18mm |
| Material: |
PVC |
| Color: |
White |
Product Description
Zibo Dingtian Plastics As a specialized manufacturer and exporter of Pvc foam board in China for about 12 years, we sincerely hope to establish business relations with your esteemed corporation. We at present has 13 production lines, monthly production ability is about 2100 tons.
Product Description
The pvc foam board have widely using territory,special features and processing characteristics.
It is mainly used in advertisement,building, furnituring and industry manufacture.
The pvc foam board have special features:
1.It is sound and heat insulation;
2.Good ignition retardance,self-extinguishing against fire to prevent fire accident;
3.Moisture resistance,water absorbing and good shock-proof performence;
4.Not easy to age and can keep its color for long.
The pvc foam board have processing characterristics:
1.Second thermoforming and cutting are available.
2.This pvc foam board has smooth surface and can be used for professsional printing and photo;
3.It can be welded according to general welding sepuence, or welded with other PVC materials.
Test Items | Unit | Test Result |
Thickness | mm | 1-32 |
Density | g/cm3 | 0.35-1.0 |
TENSILE STRENGTH | Mpa | 12-20 |
BENDING INTENSITY | Mpa | 12-18 |
BENDING ELASTICITY MODULUS | Mpa | 800-900 |
IMPACTING INTENSITY | Kj/m2 | 8-15 |
BREAKAGE ELONGATION | % | 15-20 |
SHORE HARDNESS D. | SHORE HARDNESS | 45-60 |
WATER ABSORPTION | % | ≤1.5 |
VICAR SOFTENING POINT | ºC | 73-76 |
Fire Resistance | Self-extinguish time is less than five seconds |
Size | 915X1830mm, 1220x2440mm / 1560x3050mm / 2050x3050mm |
Thickness | 1mm-32mm |
Density | 0.35-1.0 |
Color | White, Black, Red, Blue, Yellow, Green, Gray |
Packaging | PE bag, PE film, carton box, pallet |

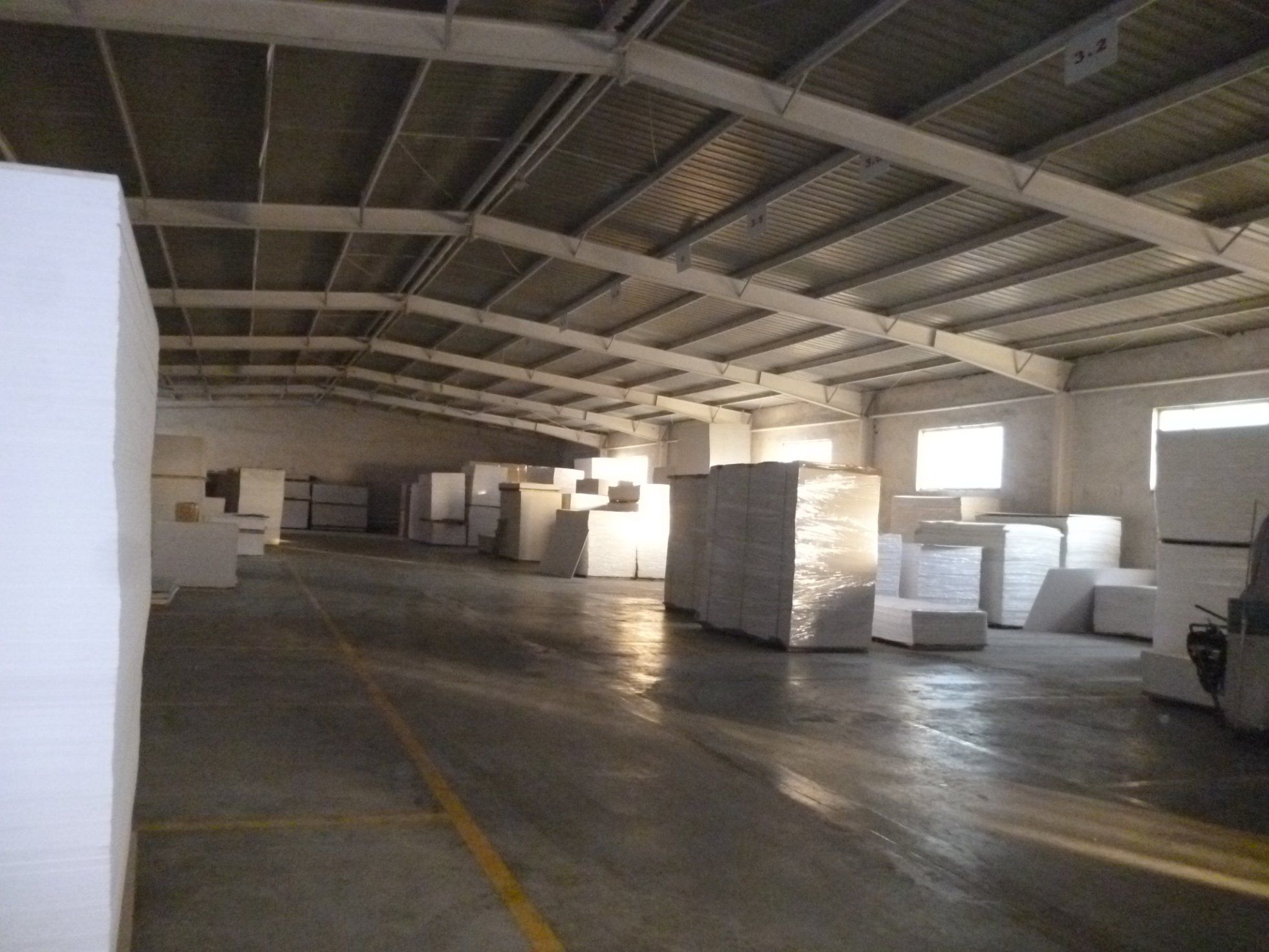

Workshop:

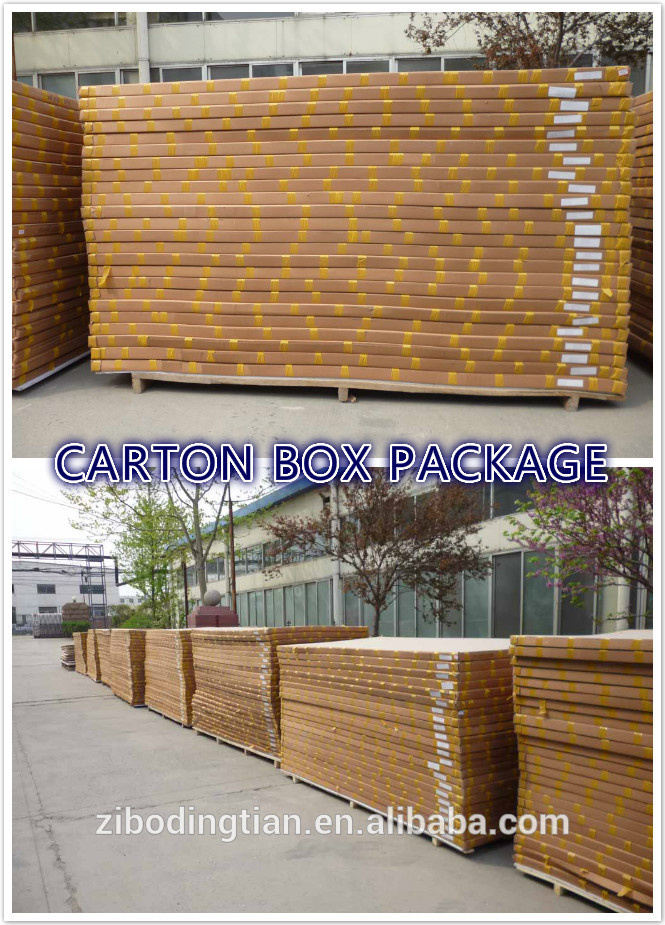

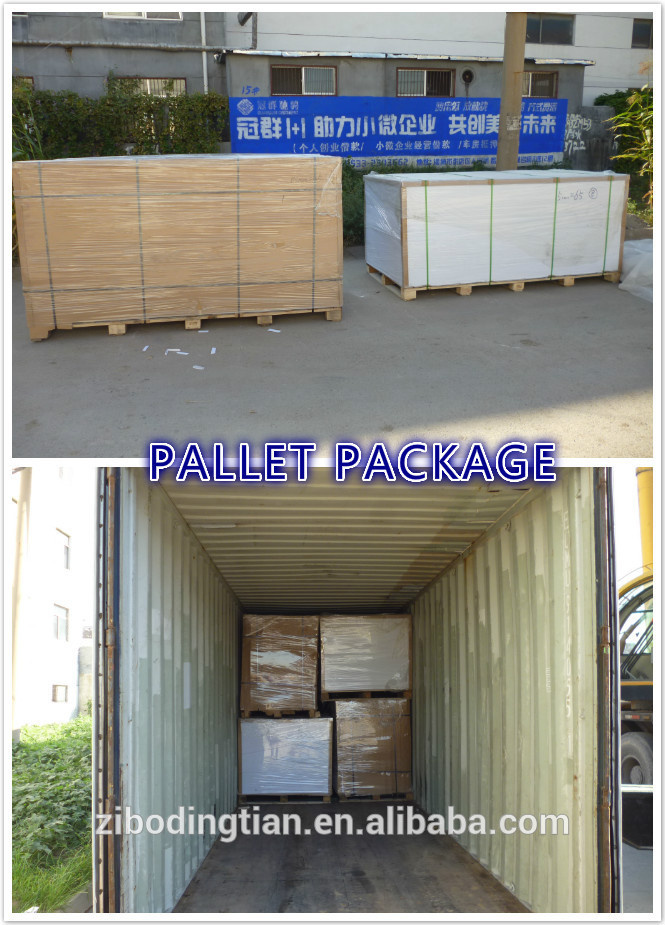

PackagingPE BAG PACKAGE, CARTON BOX, PALLETS
Certifications

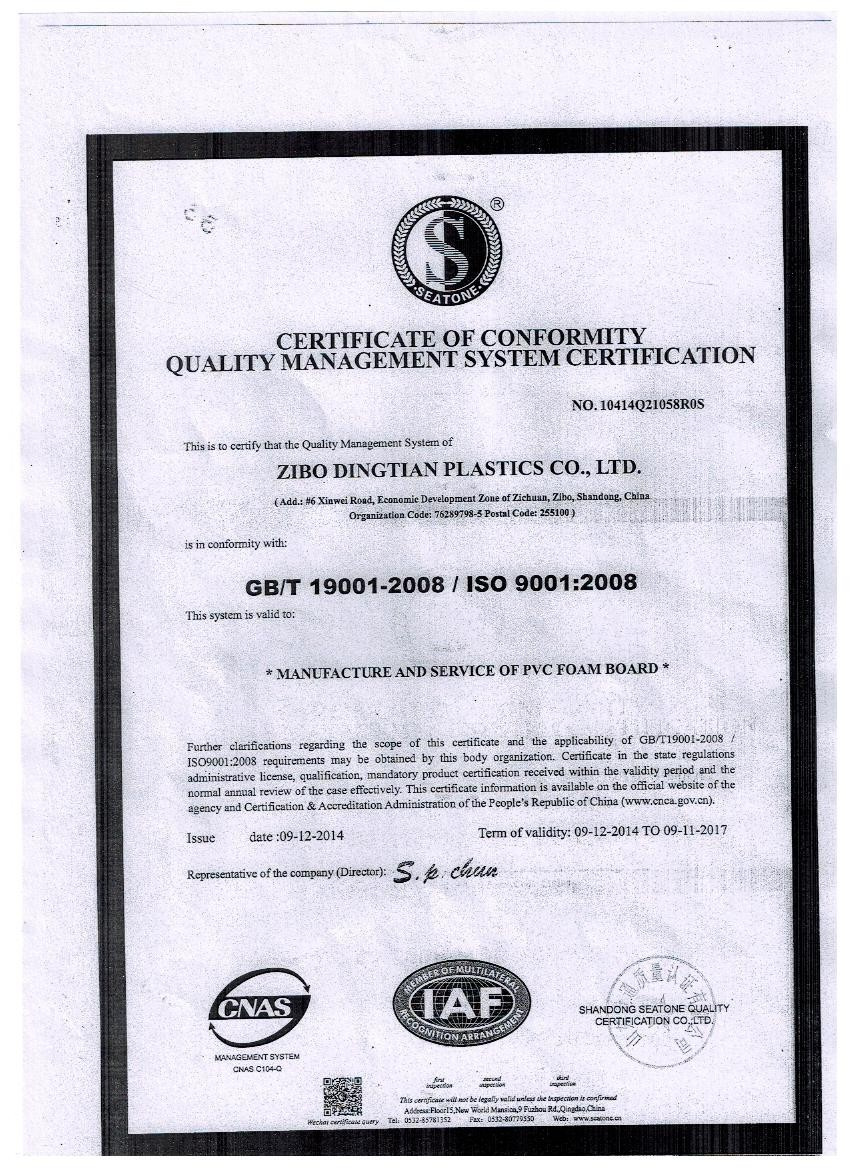

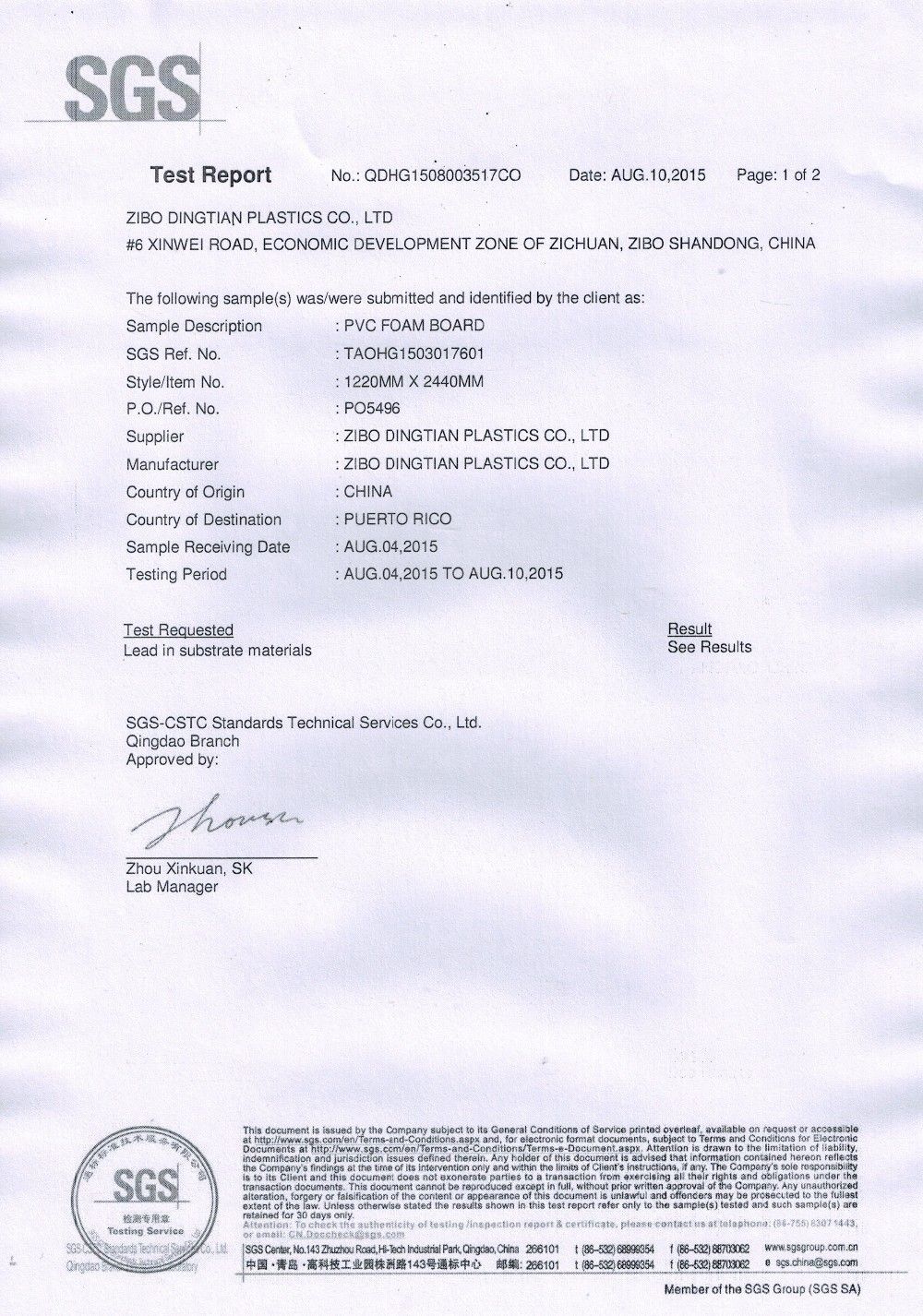

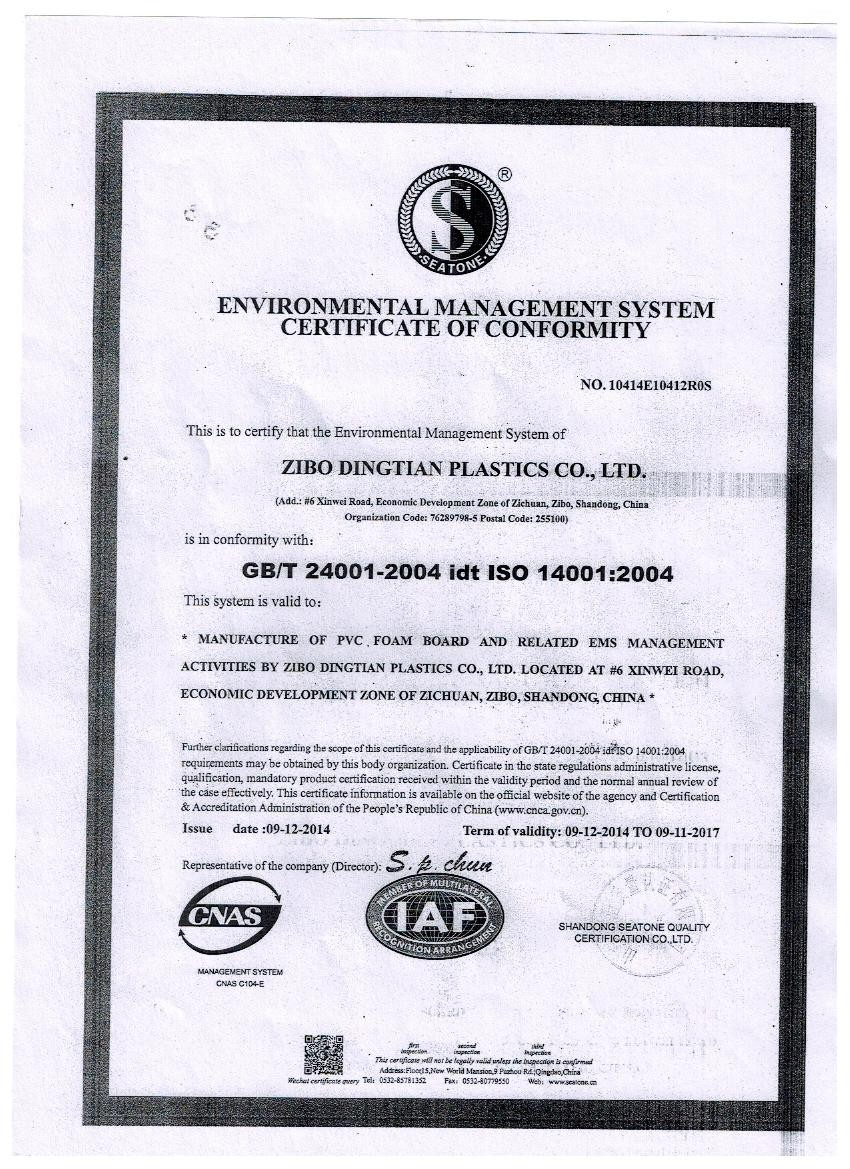

3C CERTIFICATION, ISO9001 CERTIFICATION, RoHS,SGS Etc.
Zibo Dingtian Plastics Co., Ltd. is located in Zibo City, Shandong Province of China. Established in June, 2004. The factory covers an area of 30, 000 square meters with 300 employees, 20 R&D engineers.
Zibo Dingtian Plastics Co., Ltd. Annual output 30, 000 tons, specialized in PVC free foam board, PVC celuka foam board and PVC co-extruded foam board, applied to advertisement, furniture, construction, decoration field. We have achieved the ISO9001: 2008 quality management system certification and ISO14001: 2004 environmental management system certification. The company is one of the largest PVC foam board manufacturer of China.
"Be steadfast in work and be diligent in life" "supplying the first-class products and services, and erecting up the first -class business image", We sincerely hope to set up business cooperation with you for the same benefit.

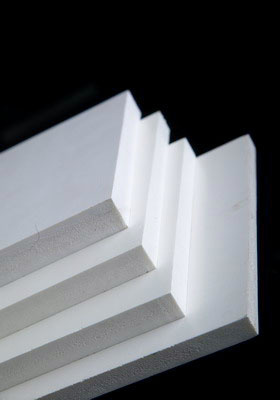

PVC foam board
Specification: 1220X2440mm, 915X1830mm, 1560X3050mm, 2050X3050mm. Thickness 1-32mm.
Color: White, black, grey, blue, yellow, green, red, pink, orange etc.
Different size, thickness and color products are available upon clients' desire.
Processing characteristics:
Second thermoforming and cutting are available.
General wood tools can be used for this products processing of planing, drilling, nailing and sticking, etc.
It can be welded according to general welding sequence, or welded with other PVC materials.
Features:
The material is of sound insulation, heat insulation, noise absorption, heat preservation and corrosion prevention, etc.
Good ignition retardance, self-extinguishing against fire to preven fire accident.
The series products are moisture resistant and mould proof, don't absorb water and have good shock-proof performance.
Processed by weather-resistance formula, this product is not easy to age and can keep its color of long.
Small weight of this product facilitates storage and construction.
Application:
Advertisement: Silk screen printing, engraving, sign board, lamp box etc
Biliding upholster: Indoor and outdoor decoration, partition, construction formworks
Furniture process: Stationery of indoor and office, kitchen and bathroom cabinet
Car and ship making: Upholster in car, ship and plane
Industry: Project of antisepsis and environmental protection, refregeratory, moulding-hot part.
