Warehouse Metal Shelf for Caron Storage

Prod Model:	LS60
Shelf Thickness:	0.6, 0.8, 1.0
Finish:	Powder Painted or Galvanized
Norm:	Fem 10.2.02
Shelf Depth:	300-800mm
Material:	Steel
Structure:	Shelf
Mobility:	Adjustable
Height:	0-5m
Weight:	150-500kg
Closed:	Semi-closed
Development:	Conventional
Serviceability:	Common Use

Product Description

1.    Product Description:

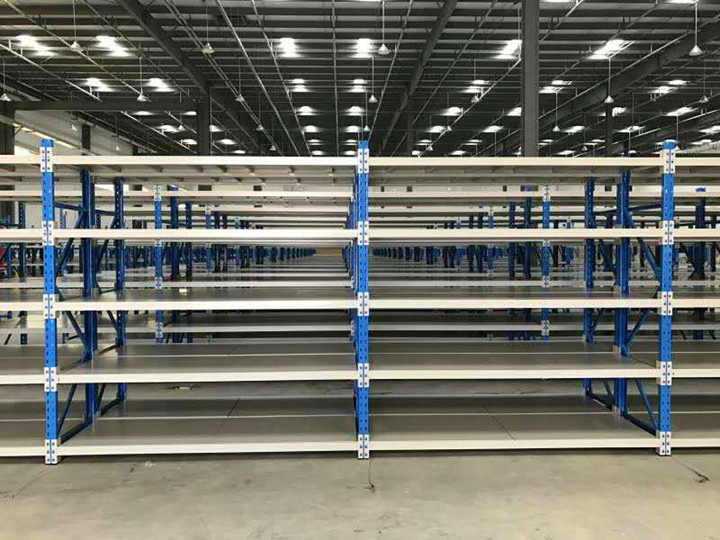

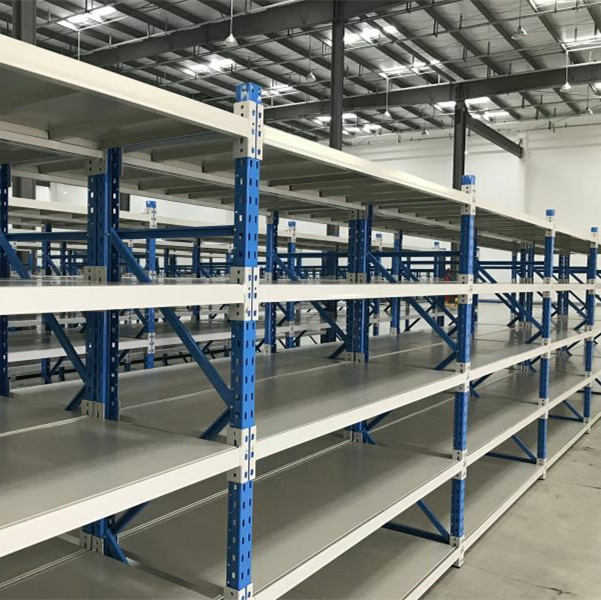

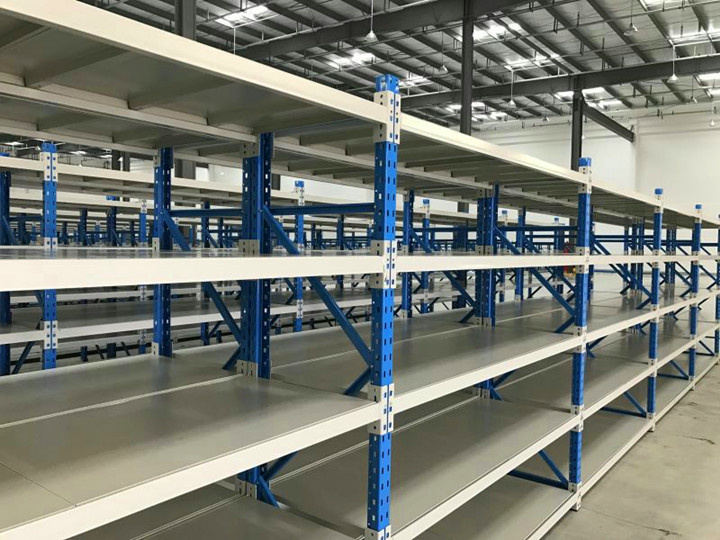

The long span racking is suitable for the storage of manual hand pick small items, containers and transport containers. The rack can be arranged in single run or double back-to-back, walkway width is approximately 900-1100mm(W). Each level of medium duty shelves can take the load from 200kg-600kg. it is widely used in warehouses, distribution center, parts store and production line. It is easily adjusted without using special tool.

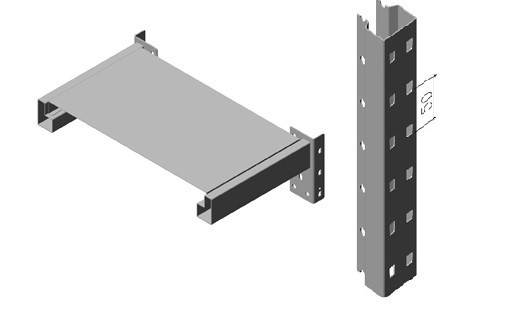

2.  The basic components

• Upright:

The upright is around 55-60mm width, which has the similar structure with pallet rack frames. Horizontal and diagonal braces are fitted to the lower and upper part to ensure frame rigidity. Bolted base plates are fitted to each frame, dependent on designed capacity.

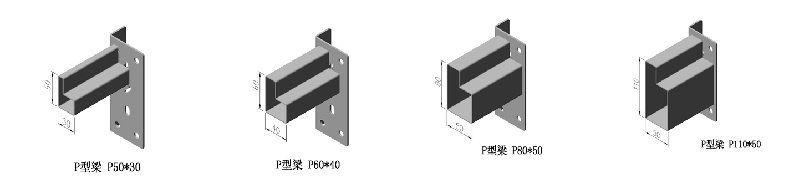

• Step Beam

They are adjustable on vertical pitch of 50mm or 75mm. Each beam has a step of 24-28mm for fitting of steel shelves, and an integral safety lock is fixed to prevent accidental removal of step beams. Beam load capacity is based on your requirements.


• Steel shelves

Cold rolled steel sheets are used to make the steel shelves. Normally the material thickness can be 0.6mm to 0.8mm for SPCC. 4-6 pcs of shelves for one level of racking. Underneath the shelves, reinforced bars are spot welded to offer more loading capacity.


The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are  RAL 5015 (=blue) and RAL 7035 (=light gray). Shleves can also be galvanized finishing. Special colors are available on request.






3. The main components are uprights, step beams and shelves. The standard specifications are as follows:


Main components	Specs	Thickness	Material
Frames	55*47*1.5	1.5	Q235B
	55*47*1.8	1.8	Q235B
	60*60*1.5	1.5	Q235B
	60*60*1.8	1.8	Q235B
Step Beams	50*30*1.2	1.2	Q235B
	50*30*1.5	1.5	Q235B
	60*40*1.2	1.2	Q235B
	60*40*1.5	1.5	Q235B
	80*50*1.5	1.5	Q235B
	80*50*1.8	1.8	Q235B
	80*50*2.0	2.0	Q235B
	110*50*2.0	2.0	Q235B
	110*50*2.3	2.3	Q235B
Shelves	24H, 28H	0.6	SPCC
	24H, 28H	0.7	SPCC

Recomended Standard size for Long span racking:

Frame Height (mm)	Shelf Clear Width (mm)	Frame Depth (mm)
1800	1200	400
2100	1500	500
2400	1800	600
2700	2000	800
3000	2300	1000

4. Advantages and Key benefits·
         Complies with international norms and regulations
·        Wide range of basic components for storage of all pallet sizes and weights.
·        Many standard accessories to meet every storage need you can imagine
·        Computer aided design ensuring the best solution for every application, including static calculations
·        Rigid and stable construction
·        High quality of finish
·        Easy and quick installation
·        Mass volume production to offer very cost effective products

5. Step Beam Loading Chart:


Beams Specification		Clear Entry (mm)  Deflection<1/200
		1000	1200	1500	1800	2000	2100	2300	2500
Step Beam 50*30*1.5		700	500	300
Step Beam 60*40*1.5		1500	1000	650	450	375
Step Beam 80*50*1.5			2400	1500	1100	880	700	500
Step Beam 110*50*1.5				2000	1500	1100	900	750	500

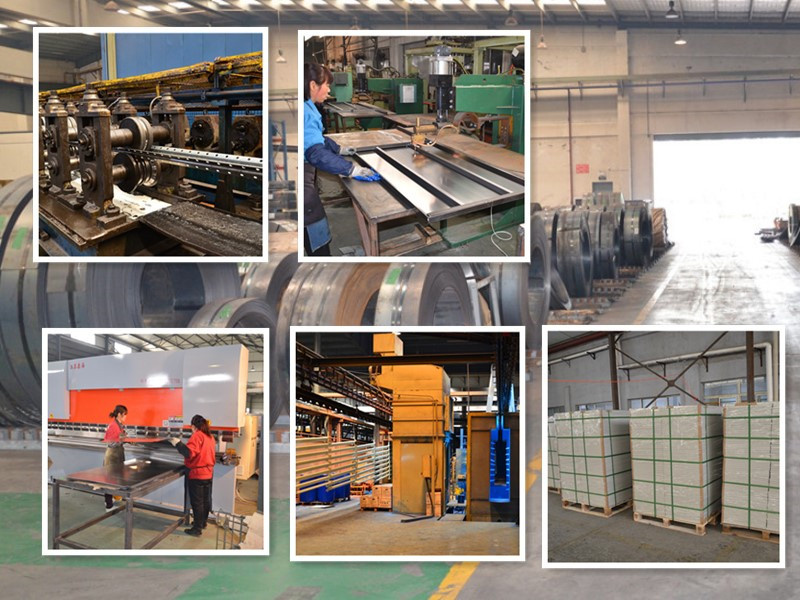

6. Factory Production:



7. RFQ documents:  Before you send us your Requirement For Quotation, please prepare the following information:

1. Warehouse layout CAD drawings if available.
2. Carton box size, width, depth and height.
3. Loading weight per box.
4. Clear height of the warehouse
5. Required line items to be stored.
6. Your intra logistic flow within the warehouse.
7. mateail handling equipment informaiton such as picking trolley, mobile ladders, etc.
