| Prod Model: |
HJG-B |
| Size: |
600 X 450 X 341/430/610/700 mm |
| Product Capacity: |
6u - 14u |
| Suitable Standard: |
IEC197-2, Ein4194 |
| Type: |
Server Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Vertical |
| Fan Number: |
Four |
| Certification: |
ISO |
| Condition: |
New |
| Capacity: |
6u~14 |
Product Description

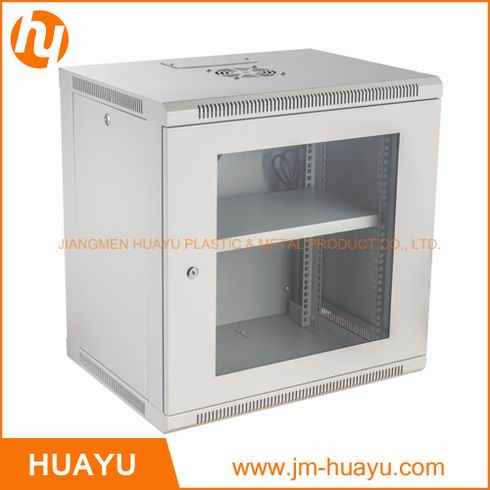

Wall Mounting Hanging Filing Cabinet Metal Cabinet Metal Sheet SPCC Material
Product pictures:
Feature:
1. Solid construction with welded frame provide good loading capacity.
2. Both glass front door and side panel have lock.
3. Top and bottom have cable inlet and inlet cover.
4. Glass is easily replaced after damaged. No need to replace the whole front door.
5. Normally the top has one fan, but we can add more according to your requirement.
6. All components are pre-installed, no need to assembled before use.
Specifications and basic component:
| Model | U | Specifications (W x D x H mm) |
| 1 | HJG-B-6406 | 6 | 600 x 450 x 341 |
| 2 | HJG-B-6408 | 8 | 600 x 450 x 430 |
| 3 | HJG-B-6412 | 12 | 600 x 450 x 610 |
| 4 | HJG-B-6414 | 14 | 600 x 450 x 700 |
Materials:
SPCC cold rolled steel
Surface finish:
Degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electricity powder coating.
Standards:
Comply with ANSI/EIA, RS-310-D; IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard and ETSI standard
Color:
1. Regular color: RAL9004 Black, RAL7035 Grey.
2. You can customize surface color, or choose from my color library.
