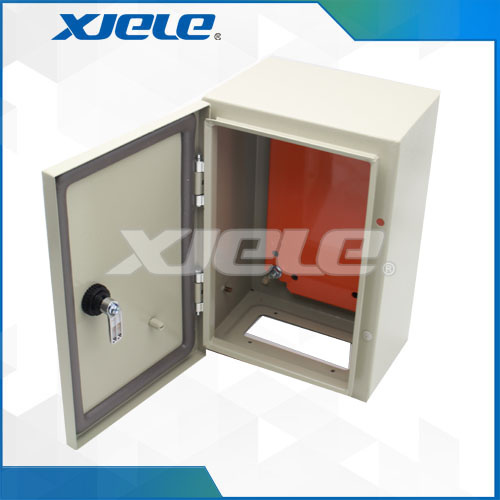

Wall Mount Electrical Cabinet Waterproof IP65
| Price: |
Negotiable/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
| Prod Model: |
XJBS-A 8040/20 |
| Thickness: |
1.2mm |
| Color: |
Ral 7032 |
| Paint Finish: |
Poxy Polyester Powder Coating |
| Customized: |
Accepted |
| Type: |
Power |
| Structure: |
Fixed Board |
| Shell Protection Grade: |
IP65 |
| Brand: |
Xjele |
Product Description
Material
Body : 1.2mm sheet steel till size XJBS-A 8060/20 then 1.5mm
Mounting plate : 1.5mm sheet steel till size XJBS-A 8060/20 then 2.0mm
Door :1.2mm sheet steel till size XJBS-A 8060/20 then 1.5mm
Surface finish
Body and door :Epoxy polyester powder coating textured finish
Mounting plate: Epoxy polyester powder coating flat finish
Color
Body and door :RAL7032/RAL7035
Mounting plate: RAL 2000 OR galvanized steel
Protection degree:IP 65
Against mechanical impacts: IK10

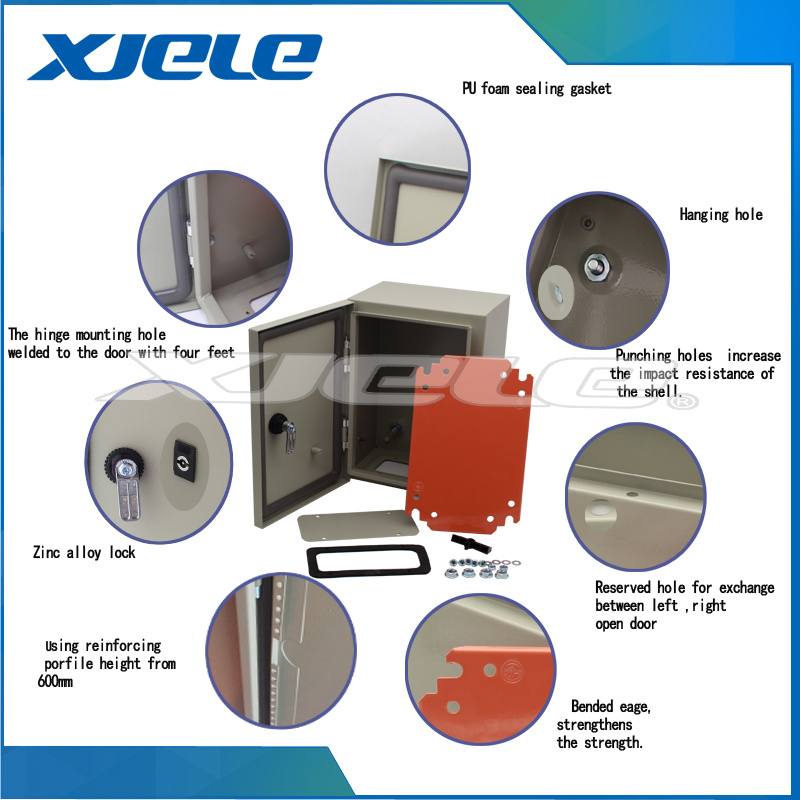

Supply:Enclosure, door ,Galvanized or orange painted mounting plate, locking system, gland plate, sealing gasket and fixing accessories.
Customized size, thickness, process requrements is accepted.waterproof outdoor electrical power wall mount enclosureswall mount electrical cabinet waterproof
| MODE | DIMENSION | MODE | DIMENSION |
|
| H(MM) | W(MM) | D(MM) | H(MM) | W(MM) | D(MM) |
| XJBS-A 2020/15 | 200 | 200 | 150 | XJBS-A 6060/30 | 600 | 600 | 300 |
| XJBS-A 2520/15 | 250 | 200 | 150 | XJBS-A 7050/15 | 700 | 500 | 150 |
| XJBS-A 3020/15 | 300 | 250 | 150 | XJBS-A 7050/20 | 700 | 500 | 200 |
| XJBS-A 3025/20 | 300 | 250 | 200 | XJBS-A 7060/20 | 700 | 600 | 200 |
| XJBS-A 3030/15 | 300 | 300 | 150 | XJBS-A 7060/25 | 700 | 600 | 250 |
| XJBS-A 3030/20 | 300 | 300 | 200 | XJBS-A 7060/30 | 700 | 600 | 300 |
| XJBS-A 3030/25 | 300 | 300 | 250 | XJBS-A 8060/20 | 800 | 600 | 200 |
| XJBS-A 4030/15 | 400 | 300 | 150 | XJBS-A 8060/25 | 800 | 600 | 250 |
| XJBS-A 4030/20 | 400 | 300 | 200 | XJBS-A 8060/30 | 800 | 600 | 300 |
| XJBS-A 4030/25 | 400 | 300 | 250 | XJBS-A 8080/20 | 800 | 800 | 200 |
| XJBS-A 4030/30 | 400 | 300 | 300 | XJBS-A 8080/25 | 800 | 800 | 250 |
| XJBS-A 4040/15 | 400 | 400 | 150 | XJBS-A 8080/30 | 800 | 800 | 300 |
| XJBS-A 4040/20 | 400 | 400 | 200 | XJBS-A 10060/20 | 1000 | 600 | 200 |
| XJBS-A 4040/25 | 400 | 400 | 250 | XJBS-A 10060/25 | 1000 | 600 | 250 |
| XJBS-A 4040/30 | 400 | 400 | 300 | XJBS-A 10060/30 | 1000 | 600 | 300 |
| XJBS-A 5030/15 | 500 | 300 | 150 | XJBS-A 10070/20 | 1000 | 700 | 200 |
| XJBS-A 5030/20 | 500 | 300 | 200 | XJBS-A 10080/20 | 1000 | 800 | 200 |
| XJBS-A 5030/25 | 500 | 300 | 250 | XJBS-A 10080/25 | 1000 | 800 | 250 |
| XJBS-A 5040/15 | 500 | 400 | 150 | XJBS-A 10080/30 | 1000 | 800 | 300 |
| XJBS-A 5040/20 | 500 | 400 | 200 | XJBS-A 10080/40 | 1000 | 800 | 400 |
| XJBS-A 5040/25 | 500 | 400 | 250 | XJBS-A 100100/25 | 1000 | 1000 | 250 |
| XJBS-A 5040/30 | 500 | 400 | 300 | XJBS-A 100100/30 | 1000 | 1000 | 300 |
| XJBS-A 5050/20 | 500 | 500 | 200 | XJBS-A 12060/20 | 1000 | 600 | 200 |
| XJBS-A 5050/25 | 500 | 500 | 250 | XJBS-A 12060/25 | 1000 | 600 | 250 |
| XJBS-A 5050/30 | 500 | 500 | 300 | XJBS-A 12070/25 | 1000 | 700 | 250 |
| XJBS-A 6040/15 | 600 | 400 | 150 | XJBS-A 12080/20 | 1000 | 800 | 200 |
| XJBS-A 6040/20 | 600 | 400 | 200 | XJBS-A 12080/25 | 1000 | 800 | 250 |
| XJBS-A 6040/25 | 600 | 400 | 250 | XJBS-A 12080/30 | 1000 | 800 | 300 |
| XJBS-A 6040/30 | 600 | 400 | 300 | XJBS-A 12080/40 | 1000 | 800 | 400 |
| XJBS-A 6050/15 | 600 | 500 | 150 | XJBS-A 120100/25 | 1200 | 1000 | 250 |
| XJBS-A 6050/20 | 600 | 500 | 200 | XJBS-A 120100/30 | 1200 | 1000 | 300 |
| XJBS-A 6050/25 | 600 | 500 | 250 | XJBS-A 120100/40 | 1000 | 1000 | 400 |
| XJBS-A 6050/30 | 600 | 500 | 300 | XJBS-A 14060/40 | 1400 | 600 | 400 |
| XJBS-A 6060/15 | 600 | 600 | 150 | XJBS-A 14080/40 | 1400 | 800 | 400 |
| XJBS-A 6060/20 | 600 | 600 | 200 | XJBS-A 140100/40 | 1400 | 1000 | 400 |
| XJBS-A 6060/25 | 600 | 600 | 250 | XJBS-A 140100/40 | 1400 | 1000 | 400 |
| More dimension information, please contact with us. |
| website:www.xujieelec.com |
|
powder coating spray Mild Sheet steel metal Outdoor waterproof distribution box,electrical wall mounted control panel electrical switchboard,spray paint IP66 waterproof metal distribution box,power distribution box,Electrical enclosure distribution box,Power distribution box,Waterproof metal enclosure distribution box,Industrial steel distribution box,wall mounted galvanised distribution box,wall mounted switch electric control panel,distribution box metal electrical distribution panel board enclosure,power control cabinet , powder coating spray steel electrical power switch box ,switching control double door electrical panel control cabinet, electrical panels IP66 Power wall mount small metal box.Waterproof metal electrical distribution board box

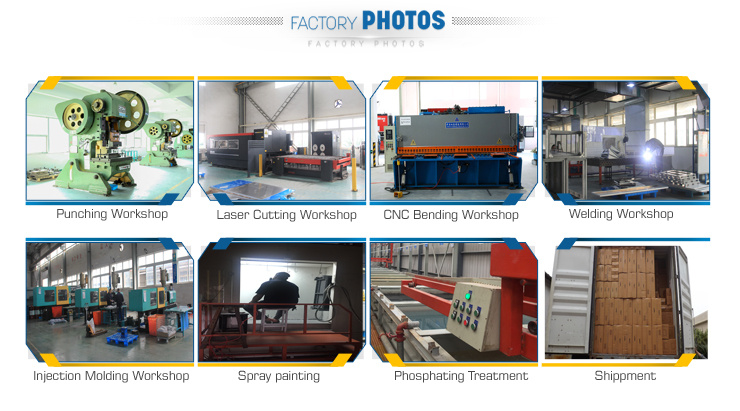

Wenzhou Xujie Electric Co. Ltd is located in Yueqing China. We are a professional committed to production, research and development, and sale of wall-mounted sheet steel electric enclosures, non-standard irons, stainless steel, aluminum alloy, plastic electrical, electronic cabinets and boxes, terminal.
