| Prod Model: |
TN-007B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Western Europe |
| Packing: |
Assembled or Dis-Assembled |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Material: |
SPCC Cold Rolled Steel or Eg Steel |
| Static Loading: |
60kgs |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Wall-Mounted Cabinet |
| Certification: |
SGS |
| Condition: |
New |
| Fan Number: |
Optional |
| Capacity: |
4u to 27u |
Product Description

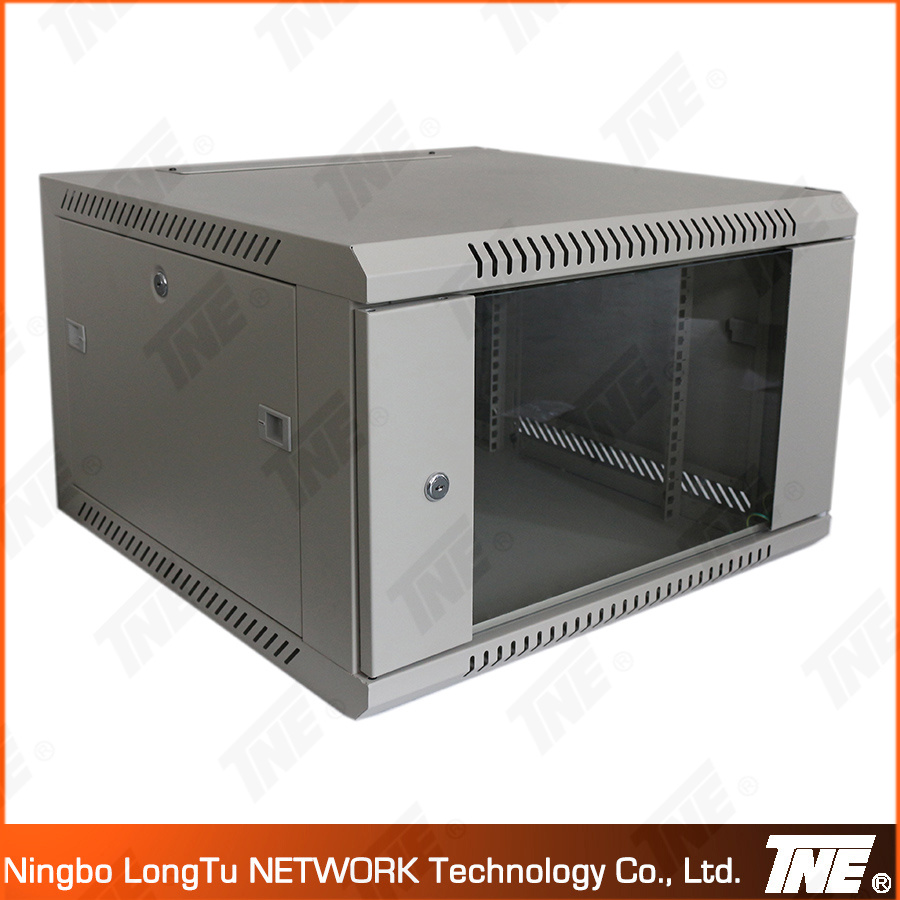

Wall Mount Cabinet Single/One Section 19'' Cabinet 6u 600mm Depth

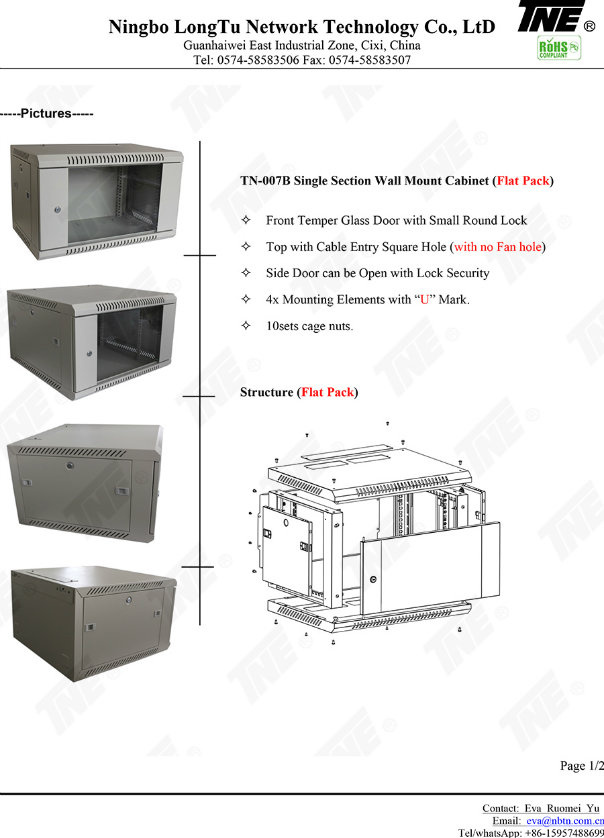

TN-007B Single Section Wall Mount Cabinet (Flat Pack)
----- Front Temper Glass Door with Small Round Lock
----- Top with Cable Entry Square Hole (with no Fan hole)
----- Side Door can be Open with Lock Security
----- 4x Mounting Elements with "U" Mark.
----- 10sets cage nuts.
=========Specification==============
> Welded Frame with a Robust and Reliable Structure
|
> Standing or Wall Mounting Installation at your Choice
|
> Competitve Price with Satisfied Quality
|
=========Addtional Discription==============
+ Turning Angle of Front Door is over 180 Degrees; Opening Direction Can be Changed According to Your Practical Needs.
|
+ Cable Entry on Both of Top Cover and Bottom Cover
|
+ 120mm*120mm Fans are Avaliable on the Top Cover.
|
+ Removable Side Panels Simplify your Installation of Accessories and Monitoring of IT Equipment. Lock is Optional
|
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.

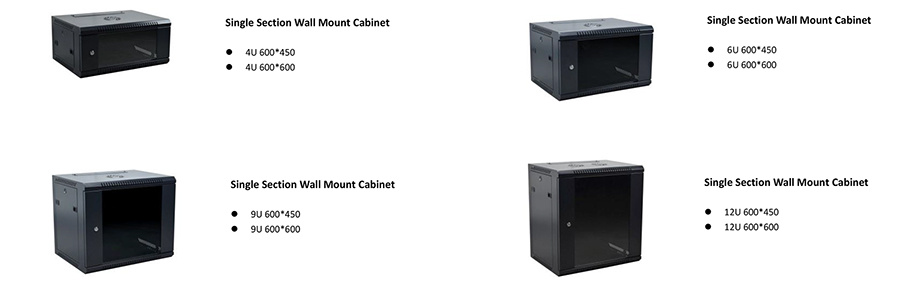

---As other market, international safety standard certificate is also be provided.| MODEL NO. | CAPACITY | WIDTH(MM) | DEPTH(MM) |
|
| TN-007-6406 | 6U | 600 | 450 |
| TN-007-6606 | 600 | 600 |
| TN-007-6409 | 9U | 600 | 450 |
| TN-007-6609 | 600 | 600 |
| TN-007-6412 | 12U | 600 | 450 |
| TN-007-6612 | 600 | 600 |
| TN-007-6415 | 15U | 600 | 450 |
| TN-007-6615 | 600 | 600 |
| TN-007-6418 | 18U | 600 | 450 |
| TN-007-6618 | 600 | 600 |
| TN-007-6422 | 22U | 600 | 450 |
| TN-007-6622 | 600 | 600 |
| TN-007-6427 | 27U | 800 | 450 |
| TN-007-6627 | 800 | 600 |
Size Example
Optional Accessory- Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
- 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
- 1U, 2U support board
- Vertical Cable manager
- 19'' Power distribution unit(PDU)
- 19'' Blanking plate 1U, 2U, 4U
- Heavy duty castor, Heavy duty castor with braker
- Optional lock for side panels
- Earth kit
And so on...
