| Prod Model: |
TR-LY-608-30 |
| Type: |
Low-Temperature Refrigeration |
Product Description

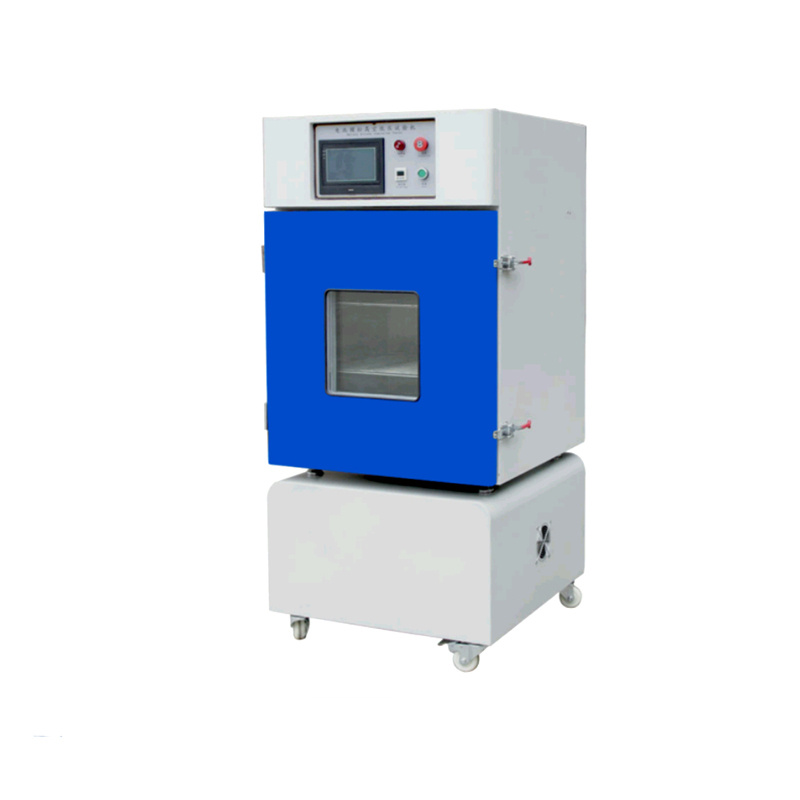

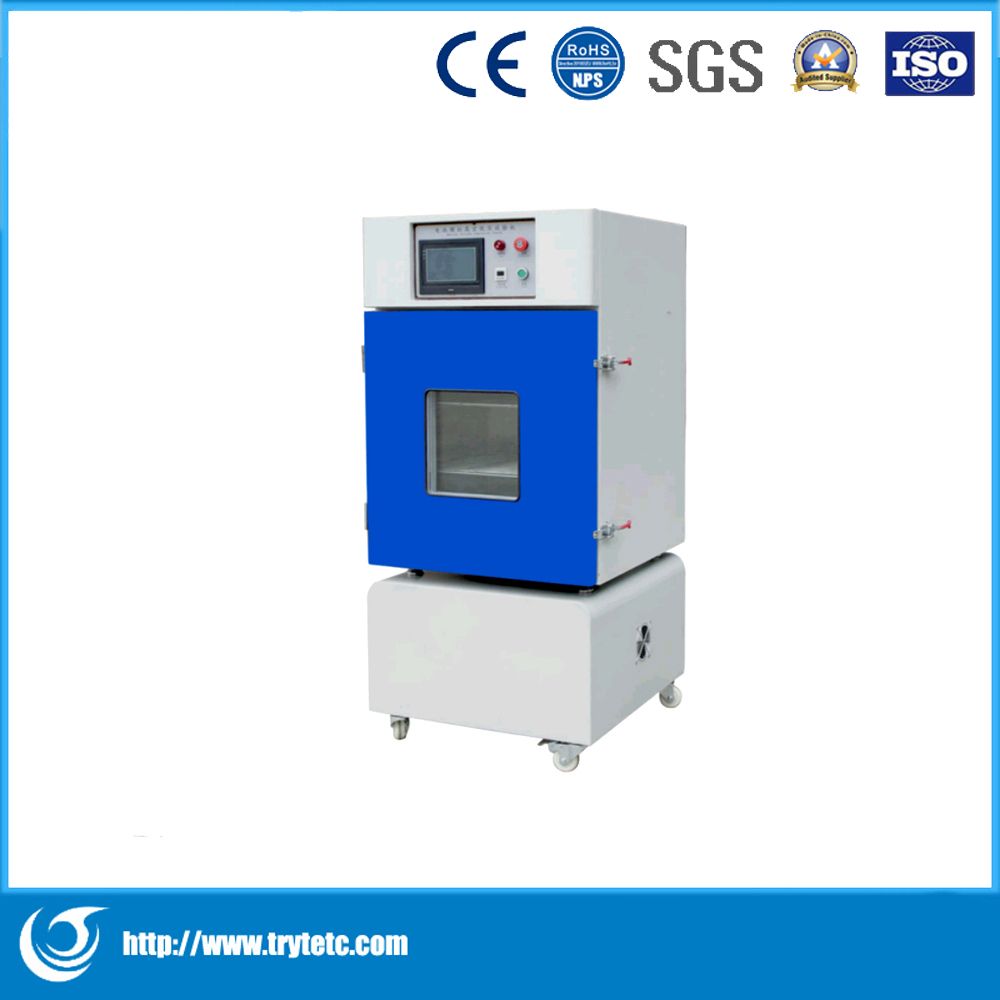

Vacuum Drying Oven/High Altitude Low Pressure Test Cabinet Description:
Test cells and batteries shall be stored at the pressure of 11.6 Kpa for at least six hours at ambient temperature (20±5 °C). Cells and batteries meet this requirement if there is no mass loss, no leakage, no venting, no disassembly, no rupture and no fire. Also, the open circuit voltage of each test cell or battery after testing is not less than 90% of its voltage immediately prior to this procedure.
Features:
Test standard: UN38.3,UL1642,UL2054,,GB 8897.4-2002,IEC60086-4 ,GB31241,SN/T1414, SN/T1413 , YD1628, GJB2374, QB/T2052,IEC62133-2012, SAE-J2464,GB31241.
Specification:
Interior box | 300*300*300mm(or customized) |
Vacuum indicator | Pointer /digital type vacuum control table |
Pressure | 11.6kPa,automatically control |
Counter | LED , 0~9999H; |
Observing window | Tempered glass, clear sight |
Safety device | Over-pressure protection |
Alarm function | Operation error or time is reached. |
Material | Interior box: Stainless steel
Outward box: Cold-rolled sheet with paint |
Box door | Silicon sealing strip |
Power | AC380V, 50~60Hz, 5A |
Packing:
Company Information: As a diversified manufacturer of high-tech products, it was founded in 1999, and devoted to the products, sales and technical service for various industries and fields like Energy analysis instrument, Oil, coal, steel, and geology; medical analysis and application instruments, biochemistry analyzer, elisa reader, blood analyzer,and urine; as well as laboratory application instruments,autoclave/sterilizer,freeze dryer, incubator,drying oven,balance,ICP,DRS,HPLC,gas chromatography,and spectrophotometer,meanwhile,TRYTE Technologies integrated and purchased some companies of PCB board, highway instruments at home and abroad. Our company has become the "one stop" instrument procurement service provider worthy of the name.
TRYTE technologies (TRYTE) mainly sell products by selling direct to customer, but also through distributors, resellers and manufacturer representatives, telephone sales and e-commerce sales, customers cover all over 80% of the world's countries and regions.TRYTE have solutions with rules adaptability according to the specific requirements of the design, from the instrument to some laboratories or departments.Whichever kind of solution you choose, you can fully trust it, because it is proved from 100, 00 successful results, leading development process, and decades of actual certification experience.
Why choose us?1. We supply high quality products with reasonable price.2. We are the professional manufacturer;3. Advanced production machine;4. Strict quality control system;5. Ten people research&develop team;6. We have professional sales team;
