UV Weather Accelerated Aging Test Cabinet, Touch Screen Rubber and Plastic UV Weathering Aging Test Cabinet
| Price: |
Negotiableset |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
DW1410 |
| Warranty: |
1 Year |
| Certificate: |
Ce. CNAS |
| Mini Order: |
1 PCS |
| Delivery Time: |
3-4 Weeks |
| Brand: |
Fyi |
| Package: |
Wooden Case |
| H.S.Code: |
90248000 |
| Application: |
Commerical |
| Temperature Resolution: |
0.1ºC; |
| Output Voltage: |
220V |
| Usage: |
UV Weathering Aging Test Cabinet |
| Automatic Grade: |
Automatic |
| Certification: |
CE |
| Condition: |
New |
Product Description

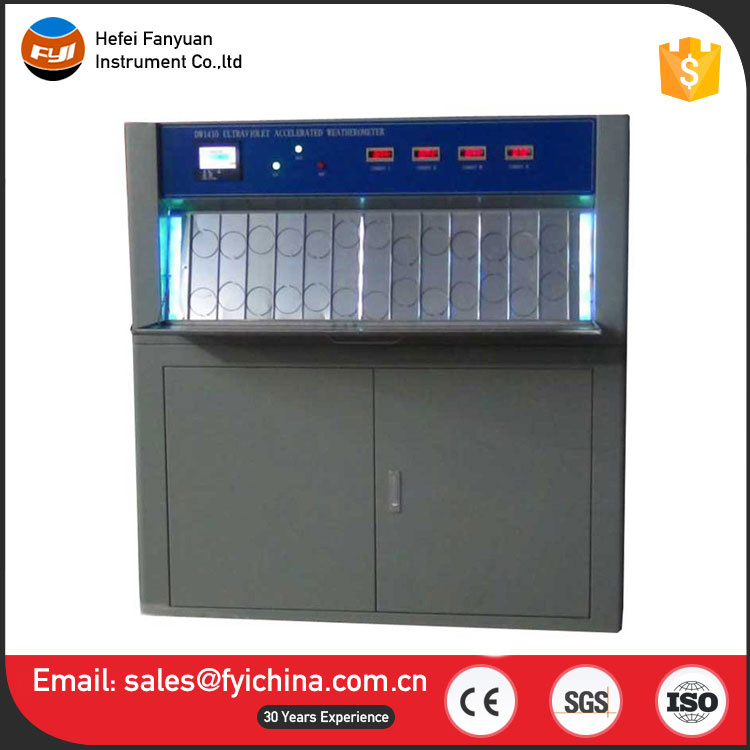

DW1410 UV Weathering Aging Test Cabinet
MODEL NO. DW1410
Application: DW1410
UV Weathering Aging Test Cabinet is designed for a wide range of applications, such as the ageing testing of non-metallic materials, organic materials (plastics, paints, coatings, rubbers, etc.) and related products under the specified conditions of sunlight, temperature, and climatic conditions, and assess the degree of color change and fade in accelerated man-made testing environments.
DW1410 adopts ultraviolet lamp as the light source that can simulate the UV band spectrum in sunlight, and combines temperature and humidity controlling systems, provides an excellent testing environments for ageing testing.
Related Standards:DW1410
UV Weathering Aging Test Cabinet is designed and satisfied the test standards, those are
GB/T 14522-2008, Artificial weathering test method for plastics, coating and rubber materials used for machinery industrial products-Fluorescent UV lamps;
ISO 4892-3-2006,
Plastics - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps;
ASTM D4329-2005,
Standard Practice for Fluorescent UV Exposure of Plastics;
ASTM D4587-2005,
Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings;
ASTM D5208-2001,
Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics.
Note: this tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Key specification:- Effective radiation area: 450×1170×500mm (W×D×H);
- Components surface temperature: RT+10ºC~70ºC;
- Temperature fluctuation: ±1ºC;
- Temperature accuracy: ±3ºC;
- Temperature resolution: 0.1ºC;
- Center distance of lamp: 70mm;
- Irradiance: uniformity within ±15%;
- Humidity ≥95% R·H
- Temperature control: PID self-control mode;
- Wind speed: 0.5~1. 0m/M;
- Light source: UV-A or UV-B;
- Wave length: 313nmwith half band or 340nm with half band;
- Temperature sensor: Pt100;
- AC contactor: SchneiderTM ;
- Small relay: FujiTM in Japan;
- Ballast: PhilipsTM.
- UV lamp Q-LABTM
- Controller Jean MullerTM (from Germany)
Structures and materials - Inner/Outer box materials: SUB high quality stainless steel board;
- Heater: special designed heating inductive board.
Light source characters- Distance between specimen and the center of lamp is 50~200mm adjustable, use 8 lamps;
- Rated power is 40W for UV-A and UV-B lamps, and with cross-tube;
- According to test standards, the irradiance of total lamps' spectrum should not 5 times larger than the irradiance of summer equator sunlight at 12 o'clock. 40W UV-A lamps' spectrum is the best one that is exactly coherent with this required light source.
- As the energy output of lamp will decrease in usage, according to the special requirements of GB/T 19394-2003 No.5-a, we special designed a sample frame that can adjust the height of specimen frame.
Electric Control- Imported high quality PID temperature controller, irradiance evenness is within ±15% at the surface of specimen.
- Adopt standard Pt-100 temperature sensor, control the surface temperature of sample accuracy.
- Temperature control accuracy within ±2.0ºC.
- Time controller, adopt DAHUA control system, time range is 0~9999H;
- Security device: leakage circuit device, SSR short circuit protection, Inter locking switch control for test chamber door, return circuit over load protection, over temperature alarm, water shortage alarm, etc.
- Irradiance meter: choose branded products, can replace by digital UV sensor or blue-ray irradiance sensor.
Installation environments- Temperature: 10-40ºC;
- Relative humidity: no more than 85%;
- Without high concentration dust and no corrosive materials;
- No sunlight direct irradiation or radioactive materials;
- Without a strong shocks;
- Install machine horizontally;
- Without strong air flow blowing on machine directly;
- Without strong electromagnetic field.
Good service and quantity .
A. We supply one year warranty and 12 hours service per day .
B. Our skilled engineer can go to your company for installation service
C. Our Tension Meter for UV Weathering Aging Test Cabinet adopts top quality material including imported parts, most of the critical component are adopting first class brand .
D. Our company passed ISO and have strict quality control before delivery goods
E. We can customized and also supply OEM service
F.. We also can supply different language user's manual . The
user manual of UV Weathering Aging Test Cabinet or Sewing Machine can help you operate our machine easily.
G ; we supply operation video if customer need it . .
Payment and delivery :
A..We accept payment such as TT , Western union, and L/C,DP etc . you can contact with us if you need
B. Normally we can delivery time in 3-4 weeks it depend on we have stock or not .
FAQ
Q: Are your company a trading one or a factory?
A:Factory + trader , 30 years focusing on test instruments field
Q What's about delivery time ?
A: Generally about 2-3 Weeks , If we have stock , we can arrange shipment within 3 days after re-tester in our factory , Some machine need customized. Deliver time is longer .
Q: What about the warranty with after - sales services?
A: The testing machine is guaranteed for 12 months by Hefei Fanyuan Instrument
of course .we can help you to repair your problem controller freely ,even it's not from our factory.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered while using our product,
handles guest problems and complaints in a professional and timely.
Q:What about services and quality?
A:Each UV Weathering Aging Test Cabinet must be carried out 100% quality examination and test when shipping and delivery goods.
Each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer's company when you need.
our products are widely recognized and trusted by users.
Fanyuan Instrument (FYI) has been a professional R&D, designing and manufacturing company since 1970s, devoting to offering cost effective testing solutions and equipments for various industrial applications, including: Textile testing, Geosynthetics & Geotextile testing, Rubber & Plastic processing and testing, Zipper & Leather testing, Chemical & Biological testing, Toy safety testing, etc. Also we have been specialized in Weather conditions meter & Strength tester for many years.
FYI team, with the joint effort of more than 40 technicians and engineers, specialist in computer technology, mechanical design and automation, integration of mechanical and electrical, etc., has devoted to updating the equipments manufactured by FYI based on a diverse range of testing requirements or standards.
Our Hefei headquarters is your main sales and service center. In addition, we have agents and distributors to assist you timely in over 20 countries around the world such as Bangladesh, Brazil, Columbia, Egypt, Germany, Indonesia, Iran, Mexico, Pakistan, Portugal, Thailand, etc.
FYI brand, proved with outstanding performance in end use and are backed by industry-leading warranties, is well-known throughout China and over 60 countries/ territories abroad such as Australia, Austria, Bangladesh, Canada, Colombia, Denmark, Egypt, Finland, France, Germany, India, Indonesia, Ireland, Italy, Lebanon, Libya, Malaysia, Mauritius, Mexico, Netherlands, New Zealand, Nigeria, Peru, Pakistan, Poland, Qatar, Saudi Arabia, Serbia, South Africa, South Korea, Spain, Sri Lanka, Sweden, Thailand, Tunisia, Turkey, United Arab Emirates, United Kingdom, USA, Vietnam, etc.
As a strategic partner, Dowell Science and Technology (HK) Co., Ltd. Start to cooperate with FYI to further develop global market by finding agencies in diverse nations or directly sell products to end users from the year 2006.
