| Prod Model: |
5XZ-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
5xz-3 |
| Capacity(T/H): |
3000 Kg/H |
| Dimension (L*W*H): |
2600*1500*2100 |
| Weight (Kg): |
1300kg |
| Function: |
Remove Immature, Moldy , Insect Damaged Seed |
| Application: |
All Kinds of Seed Grain Bean Pulse and Cereals |
| Warranty: |
1 Year |
| Delivery Time: |
10-15 Days After Receiving Advance Payment |
| Color: |
White Color |
| Advantage: |
Blowing Type Gravity Separator |
Product Description

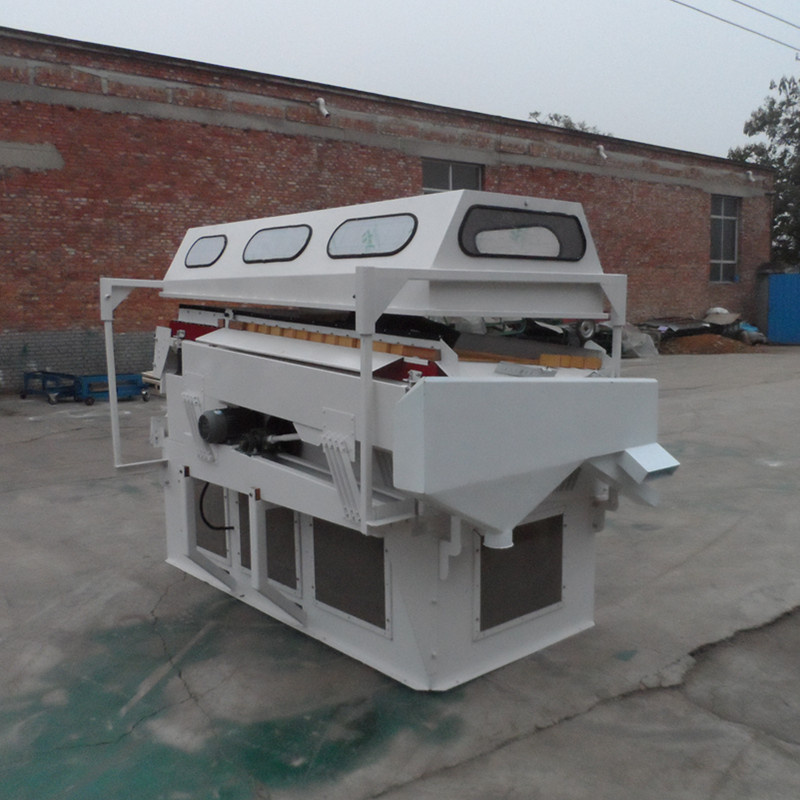

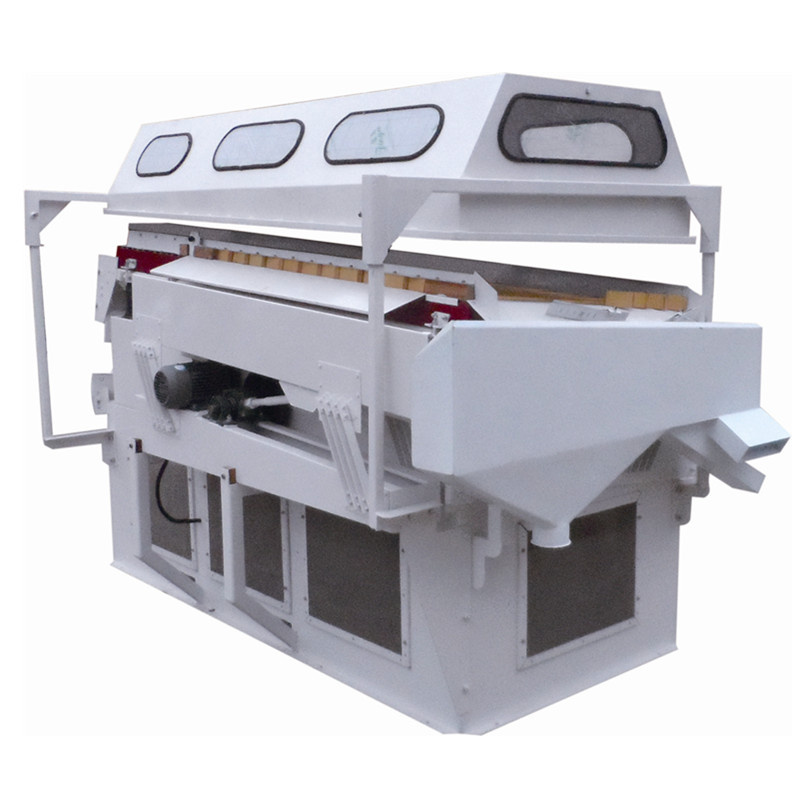

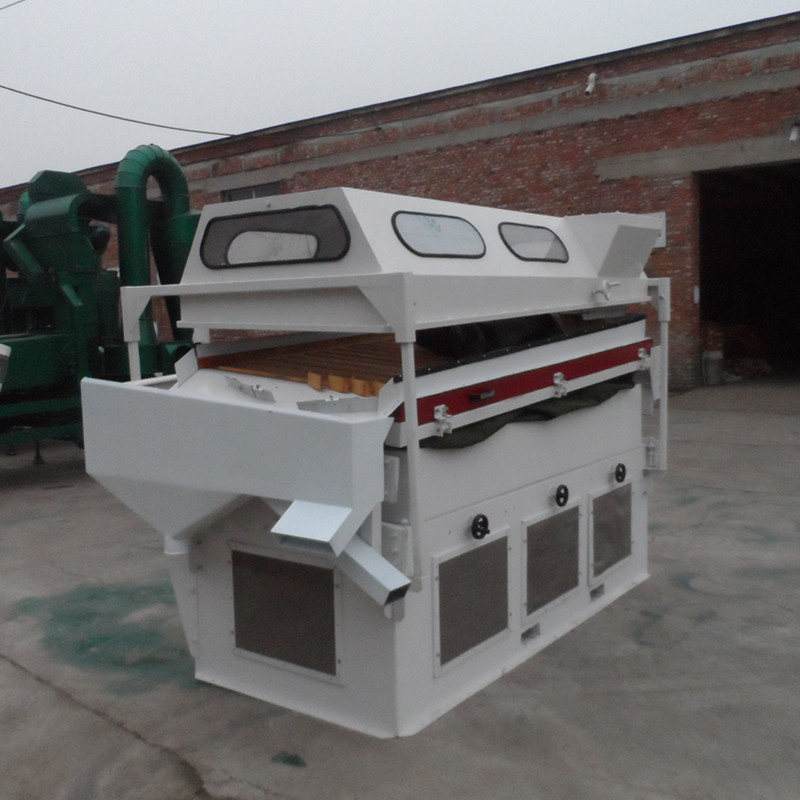

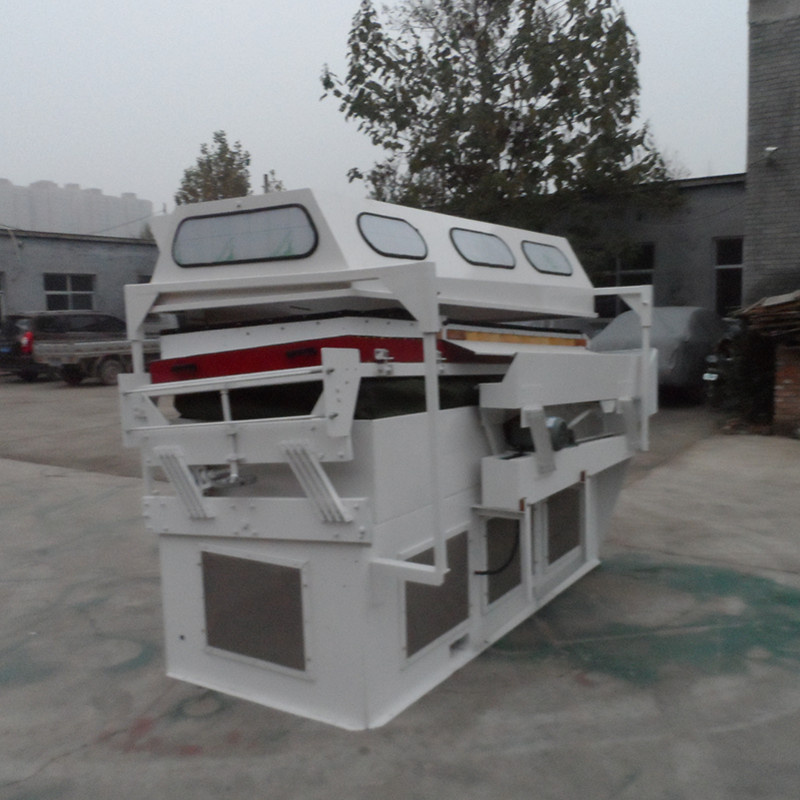

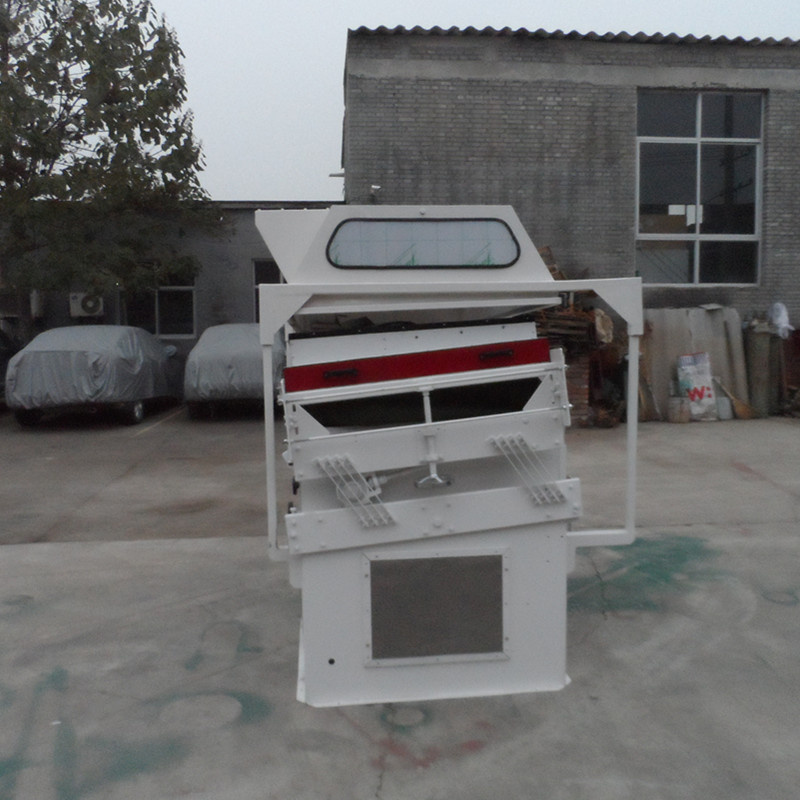

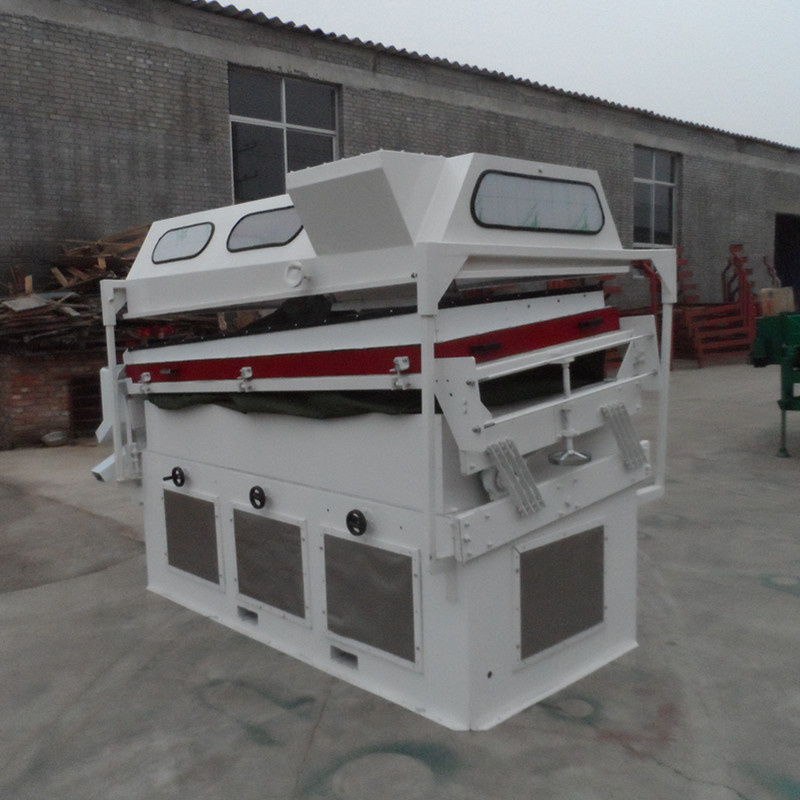

5XZ-3 used vibrating table
Introduction of 5XZ-3 used vibrating table
5XZ-3 vibrating table is the blowing type High Quality Stanard Gravity Separator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.
Application of 5XZ-3 used vibrating table
The vibrating table can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The High Quality Stanard Gravity Separator can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans, rice, wheat, sesame etc.
The vibrating table also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.
Working Principle of 5XZ-3 used vibrating table
The vibrating table works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.
Specification of 5XZ-3 used vibrating table
| Model | Capacity (KG/H) | Power(KW) | Weight(KG) | Dimension(mm) |
| 5XZ-3 | 3000 | 7.45 | 1300 | 2600*1500*2100 |
| 5XZ-6 | 5000 | 8.95 | 2000 | 3440*1630*1900 |
| 5XZ-10 | 10000 | 15 | 2500 | 4300*1960*2500 |
Hebei Ruixue Grain Selecting Machinery Company Limited has a international brand of seed/grain processing machinery, it is called 'SYNMEC', also we has an independent corporate entity 'SYNMEC International trading Ltd. ', so we can provide professional machinery making and professional international trading service.

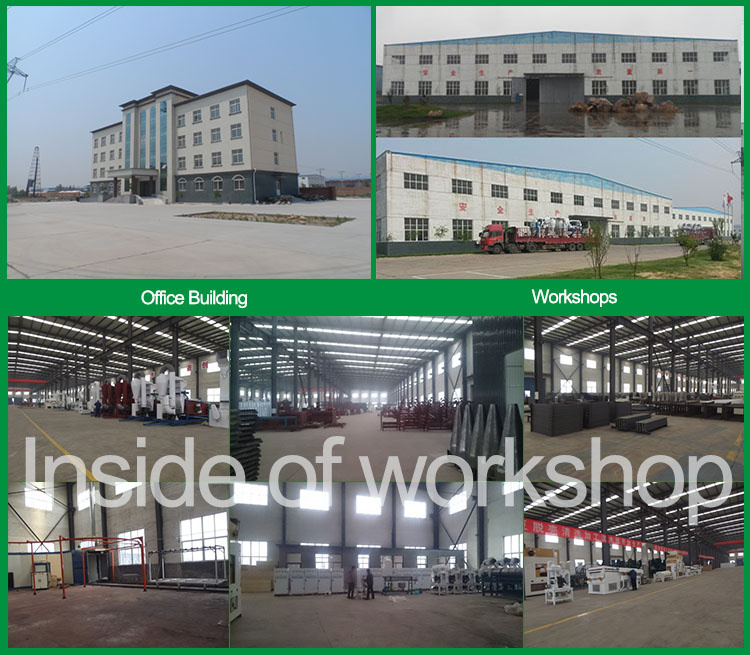

Our company is a comprehensive high-tech enterprise, and specialized in the research and manufacture of seed, agricultural product, agricultural byproduct and feedstuff processing machineries. Our company has strong financial strength, advanced equipment and a well-developed mechanical research center.
Our company makes great effort to introduce the advanced technology and management experience from home and abroad. We persistently devote to research and develop the high technical product and make contribution to the development of seed, agricultural product, food and feedstuff processing machineries.
Our company has many categories and models of the agricultural machinery. With the advanced technology, good performance, stable quality, reasonable design and considerate service, our products rank the top place in domestic market. Now we are able to offer the processing equipment of 18 categories and more than 40 models, such as threshing, selecting, stone removing, metal removing, classifying, grading, specific gravity separating, seed coating, automatic quantitative weigher and packaging machinery. Lots of products have been applied for national patents.
Upholding the enterprise spirit of "innovative, take challenge and surpass" and the management tenet of "First grade quality, superior service and top reputation", the Shijiazhuang Ruixue Grain Sorting Machinery Co., Ltd. Makes itself become a leading enterprise integrated with "science research, industry and trading". Our company has high quality products, complete after-sales service, we also engaged in the international business and export, our company become the main manufactory of seed, agricultural product, Food and feedstuff processing machinery.
