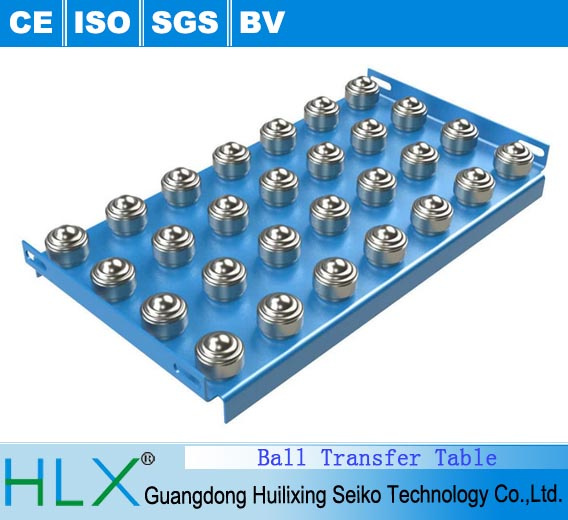

Used for Industrial Flange Mounted Ball Transfers Table

Name:	Industrial Flange Mounted Ball Transfers Table
Load Capacity:	115kg
Ball:	Ball Bearings, Stainless Steel, Reinforced Nylon
Features:	Transmission Flexible, Durable
Usage:	for Straight or Curved Multi-Directional Conveyor
Rolling Body:	Ball Bearings
The Number Of Rows:	Single
Outer Dimension:	Small (28-55mm)
Spherical:	Aligning Bearings
Load Direction:	Thrust Bearing
Separated:	Unseparated

Product Description

The Ball Transfer Table is used when products need to be manually rotated or correctly positioned, such as a work station or other operation that requires quick, easy handling of the product. Ball Transfer Tables are also used when two or more conveyor lines converge and packages must be transferred from one line to another.

A ball transfer table is used when products are required to be manually rotated or correctly positioned, such as a work station or other similar operation that requires quick, easy handling of the product.
Ball transfer tables are also used when more than two conveyor lines converge and packages must be transferred from one line to another. They are widely used on workstation applications to help in assembly, inspection, or testing. Ball transfers make it easy to move or rotate heavy cartons, bins, and components that can be conveyed.

No

M

d1

D

D1

h

H

L

L1

S

loading rate static

loading rate  dynamic

weight

WA-01-A

5.5mm

25.4

42mm

50mm

24mm

30.3mm

55.5mm

69mm

1.2mm

85kg

115kg

142g

∑ Product Specification:

Owing to our rich industry experience, we are able to manufacture, supply and export a wide array of Ball Transfer Units. These units are made from finest quality material, which is sourced from the certified vendors of the market. Our offered products are tested as per the industry standards to ensure defect-free range. Applauded in the market by our esteemed clients, thees Ball Transfer Units can be availed in a spectrum of sizes, designs, styles and other specifications.

∑ Applications:

Conveyor system employing ball transfer tables, turntables lifting and sorting platforms and cargo rolling decks.
Machinery comprising feed tables for metal working and machinery, fixtures for press brakes, assembly tables and ergonomic aids.
Packaging equipment, robotics and industrial castor applications.

∑ Other information:

Ball Transfer Conveyors/Tables are used for applications where there is need to reorient boxes, cartons, totes, etc., or to manually transfer items in multiple directions.  Available in straight and curve sections with various ball centers to meet specific requirements.  Also available as a pneumatic table for assembly applications where there is need to transfer product and then lower to table height for stability of work, then raise product and transfer back onto the conveyor system.
Ball Transfer Conveyors/Tables can be manufactured with either carbon steel powder coat painted frames, or stainless steel frames, with the choice of either carbon steel, stainless steel or nylon balls.

∑ General Information:

Lengths Available:  1′ to 10′ long in 6″ increments (curves and spurs also available)
Widths Available:  12″ wide to 60″ wide
Frame Materials Available:  Carbon steel powder coat painted, or stainless steel
Ball Transfer Centers:  2″ square pattern, 3″ square pattern, 4″ square pattern, 6″ square pattern
Ball Transfer Capacity:  1″ diameter ball 75 lbs.,  1-1/4″ diameter ball 250 lbs.,  1-1/2″ diameter ball 250 lbs.
Ball Materials Available:  Carbon steel, Nylon, Stainless Steel
Housing Material:  Zinc plated carbon steel, or stainless steel
Ball Mounting Types:  Stud mounting, flange mounting, hole recessed mounting
Metric Diameter Ball Transfers Available
Optional Floor Supports Available
