| Prod Model: |
USBX-A9FX-XXR0-21 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
30V |
| Task: |
Adjust |
| Structure: |
Combination |
| Mathematical Model: |
Linear |
| Signal: |
Continuous |
| Function: |
Monitoring |
| Certification: |
ISO: 9001 |
| Condition: |
New |
| Customized: |
Customized |
| Material: |
Stainless Steel |
Product Description

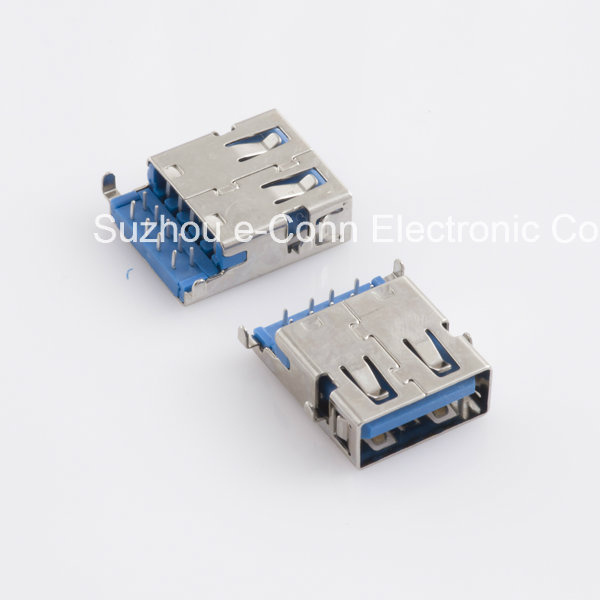

USB 3.0 CONNECTOR RECEPTACLEDescription: Universal Serial Bus (USB 3.0) I/O Receptacle, Right-Angle, Type A, High-Temperature Blue Nylon, 15µ'/5µ/30µ'' Gold (Au) Plating /
Flash Gold (Au) 3µ' Minimum Plating.
- * RoHS Certificate of Compliance available.
- * Drawing (PDF) available.
RATINGS & ELECTRICAL REQUIREMENTS
1 VOLTAGE
30 Volts DC/AC Max.
5 Insulation Resistance : 1000MΩ Min at DC 500V.
6.Dielectric Withstanding Voltage : AC 500V r.m.s.
7. Insertion Force & Extraction force TEST Per EIA-364-13.
8. Durability . Durability Class: 5000 cycles
| Features | Benefits |
| * Metal shielding on all sides | * Superior shielding against RFI and EMI |
| * Single piece design | * Easy assembly |
| * Grounding fingers on shield | * Ground for mating halves |
| * Beveled Metal Pins | * Provides ground to PCB and strong board retention |
* Small footprint | * Less PCB real estate |
| * Detent lock | * Strong plug retention |
Reference Information
Packaging: Tray
Mates With: USB 'A' Plug
Designed In: mm
Electrical
Voltage: 30V
Current: 1.0A
Contact Resistance: 30 milliohms Max
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: 1000 Megohms min.
Mechanical
Mating Force: 35.00N (7.87lb)
Unmating Force: 10.00N (2.25lb)
Durability: 1500 cycles
Physical
Housing: Polyster, High Temperature,
Glass-filled, UL 94V-0
Contact: Phosphor Bronze
Plating: Contact Area -0.76μm (30 μ") Gold (Au)
Solder Tail Area - Tin (Sn)
Underplating - Nickel (Ni)
PCB Thickness: 1.6mm (.062")
Operating Temperature: -55°C to +85°C
Other available versions are the SMT Right Angle and Right Angle.
Reverse Mid Mount.
Available in standard, mini and micro versions.
Applications
Automotive
Comfort
Driver assistance systems / convenience
Infotainment systems
Consumer
Copiers
DVD Players
Digital camera
Digital media players
Digital video camera
LCD and TV panel
Notebook PC
Printers
Set Top Boxes
Medical
PC Monitors
Smart Phones and Mobile Devices
GPS
MP3 and music player
Mobile phone
Tablet PCs
Telecommunications
Handsets
ISDN
PBXs
